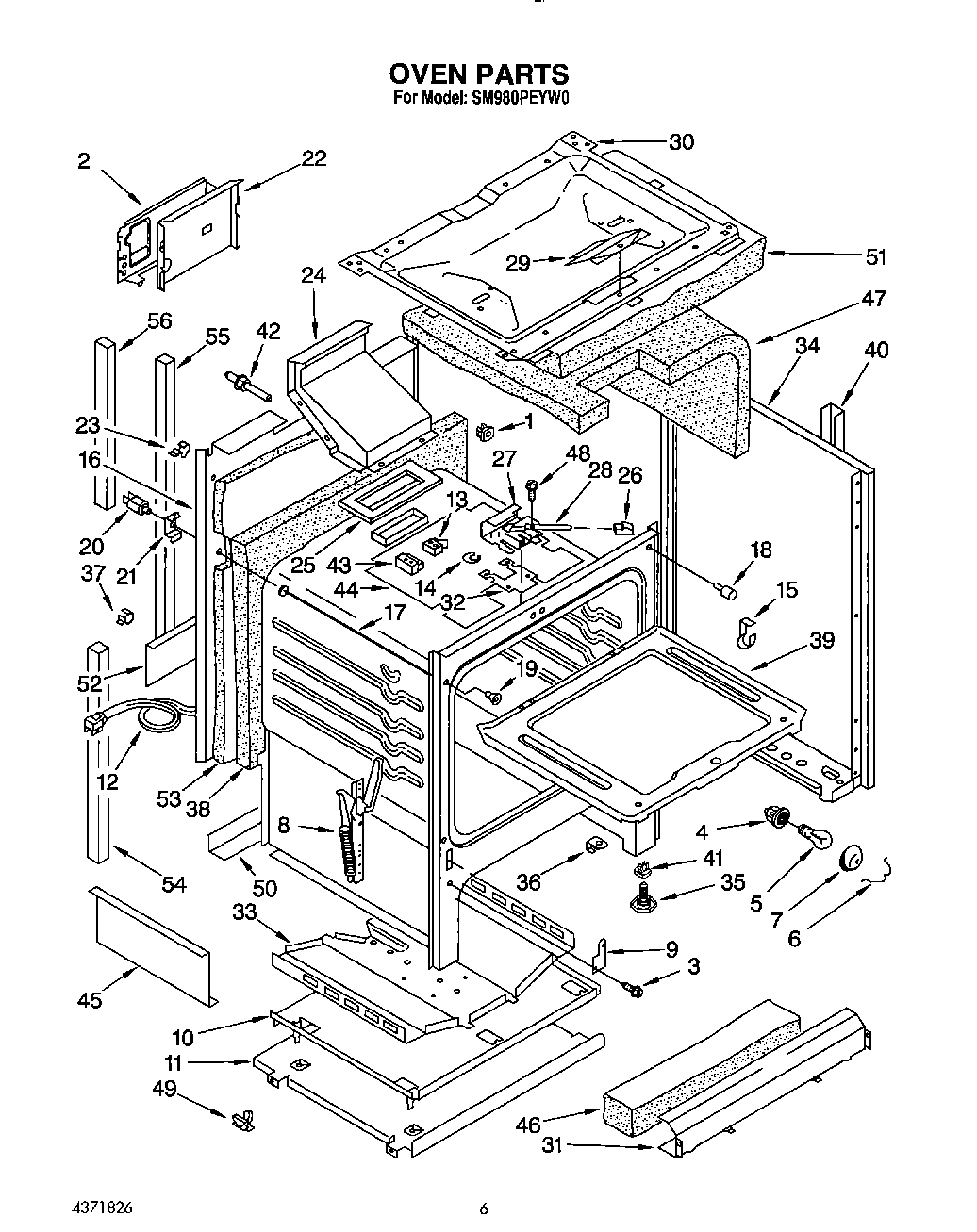

SM980PEYN0 06 – OVEN

SM980PEYN0 06 – OVEN

Written by

in

SM980PEYN0 06 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Shield, Rear Wall
3	Screw, Oven Bottom
4	W10856866 Whirlpool Light Socket
5	RANGE ONLY 40W 120V APPL BULB
6	Retainer, Lens
7	Lens, Oven Light
8	Hinge, Oven Door
9	Cover, Hinge
10	Shield, Heat (Upper)
11	Shield, Heat (Lower)
12	Cord, Power
13	Switch, Latch
14	WPW10339879 Whirlpool Wire Tie
15	Clip, Thermo Bulb
16	Back, Main
17	Rod, Light
18	Bumper, Front (4)
19	Cover, Rod End
20	Switch, Door
21	Bracket, Door Switch
22	Shield, Rear Heat
23	Clip, Wire
24	Flue Box
25	Gasket, Flue
26	Knob, Latch
27	Latch, Door
28	Handle, Latch
29	Plate, Cover
30	Burner Box
31	Shield, Main Front
32	Shield, Latch
33	Shield, Heat Baffle
34	Panel, Side (Almond LH)
34	Panel, Side (White RH)
34	Panel, Side (White LH)
34	Panel, Side (Almond RH)
35	Screw, Leveler (4)
36	Support, Oven Bottom
37	Fastener, Cord
38	Insulation, Oven Back
39	Bottom, Oven
40	Trim, Side (2)
41	Fastener, T Nut (4)
42	Spacer, (2)
43	Shield, Latch
44	Shield, Oven Top
45	Shield, Side (2)
46	Insulation, Front
47	Insulation, Oven Wrapper
48	Screw, Latch Knob
49	Glide, Drawer
50	Bracket, Anti-Tip
51	Insulation, Ov Top
52	Shield, Wire
53	Shield, Wool
54	Tube, Post LH
55	Tube, Post RH
56	Tube, Ext. LH
