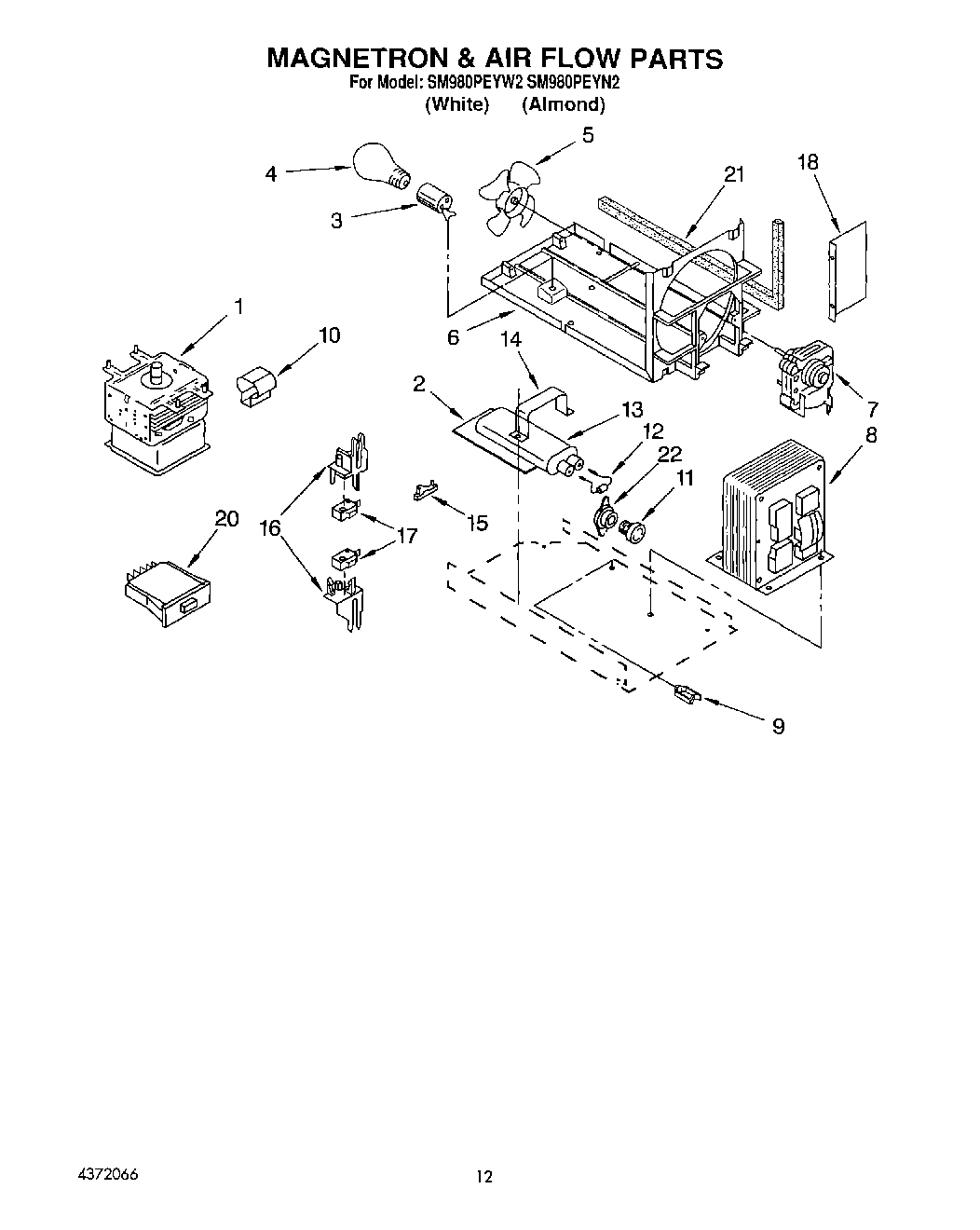

SM980PEYN2 11 – MAGNETRON & AIR FLOW

SM980PEYN2 11 – MAGNETRON & AIR FLOW

Written by

in

SM980PEYN2 11 – MAGNETRON & AIR FLOW

Products

PositionProduct
1Magnetron
2Insulator
3Socket, Light
4Bulb, Light
5Fan
6Duct, Fan
7Motor, Fan
8Transformer
9Clip, Wire (3)
10Insulator
11Fuse, 20 amp
12Diode
13Capacitor
14Brkt, Capacitor
15Fuse, Thermal
16Bracket, Upper (2)
17Switch, Interlock (2)
18Barrier, Air
20Switch, Monitor
21Seal, Foam
22Socket, Fuse
