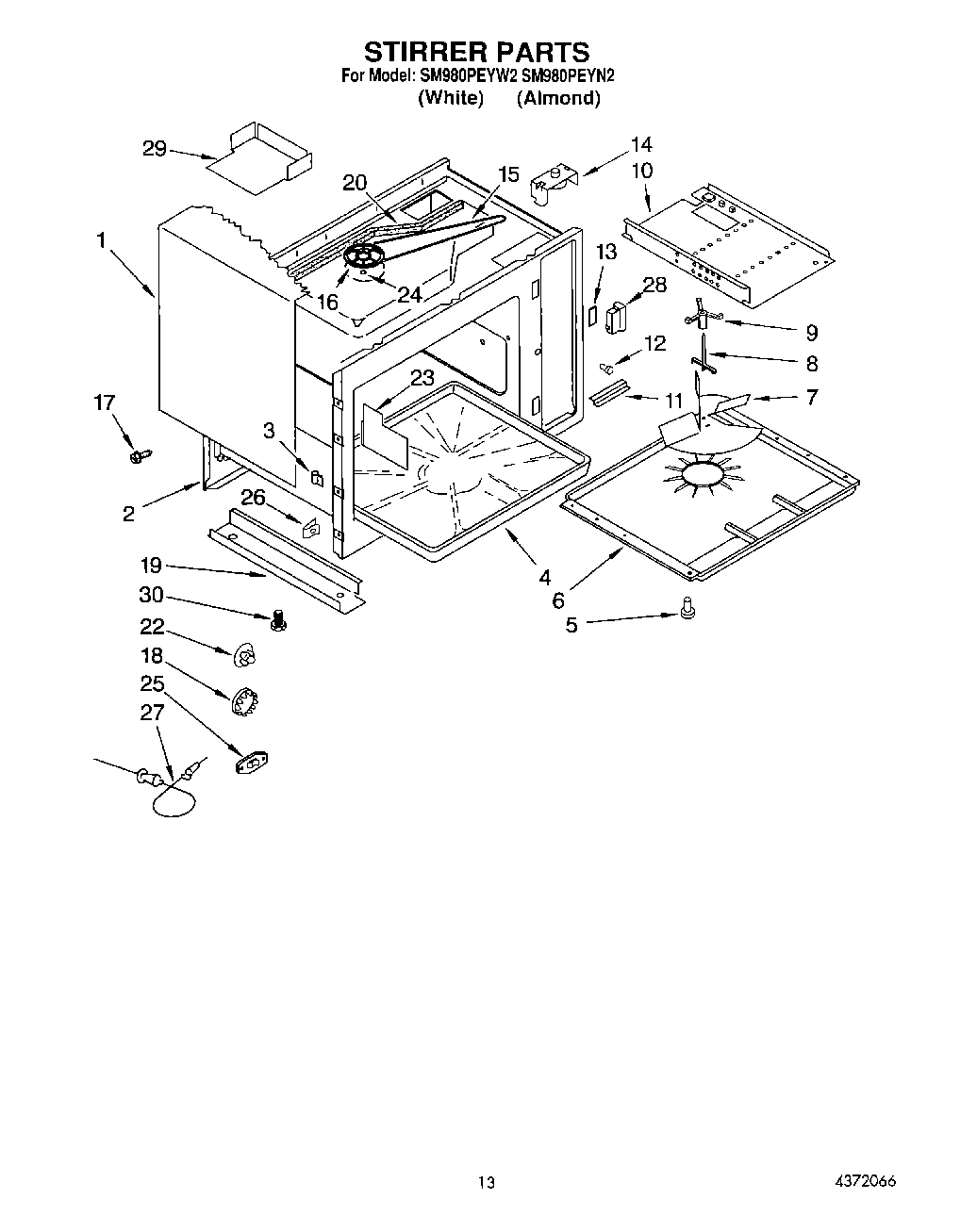

| 1 | Wrapper |
| 2 | Liner (Not A Serviceable Part) |
| 3 | Fastener, U Type |
| 4 | Tray, Glass |
| 5 | Rivet (10) |
| 6 | Cover, Stirrer |
| 7 | Fan, Stirrer |
| 8 | Support, Stirrer |
| 9 | Collar, Stirrer |
| 10 | Channel, Base RH |
| 11 | Bracket, Support |
| 12 | Grommet, Door |
| 13 | Bezel, Latch |
| 14 | Motor, Stirrer (With Belt) |
| 15 | Belt, Stirrer |
| 16 | Pulley, Stirrer |
| 17 | Screw, Wrapper (13) |
| 18 | Plug, Button (2) |
| 19 | Channel, Base LH |
| 20 | Foam, Air Duct |
| 22 | Plug, Button (8) |
| 23 | Shield, Oven Light |
| 24 | Washer, Pulley |
| 25 | Plug, Button |
| 26 | Fastener, Hinge Mtg |
| 27 | Probe |
| 28 | Receptacle, Probe |
| 29 | Baffle, Panel |
| 30 | Stud, Ground |
