SM980PEYW0 02 – COOKTOP

SM980PEYW0 02 – COOKTOP

Written by

in

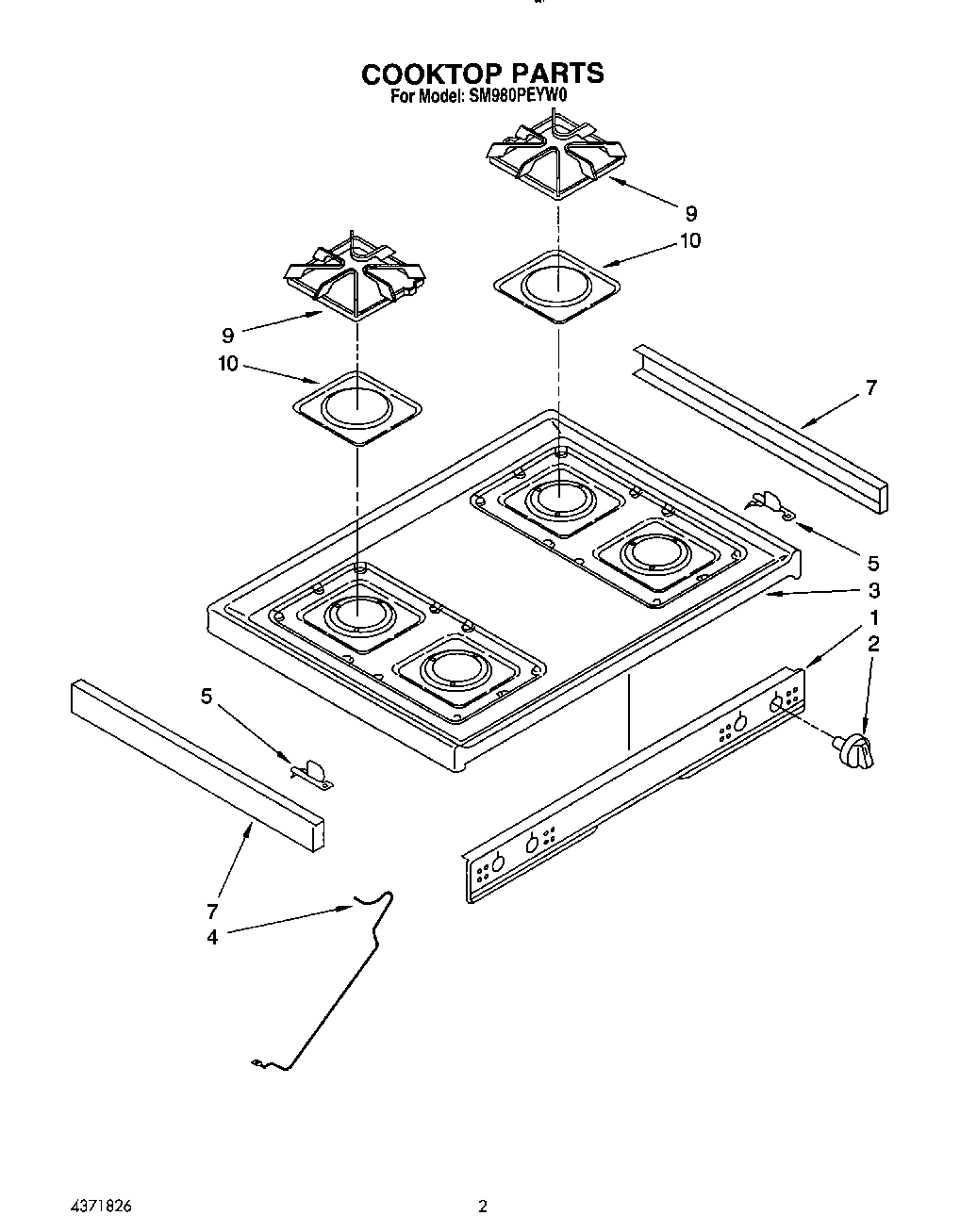

SM980PEYW0 02 – COOKTOP

Products

Position	Product
1	Panel, Manifold
2	Knob, Control (4)
3	Top, Main (Almond)
3	Top, Main (White)
4	Rod, Support Top
5	Bracket, Hinge RH
5	Bracket, Hinge LH
7	Trim, Top (Right)
7	Trim, Top (Left)
9	Grate (4)
10	Pan, Burner (4)
