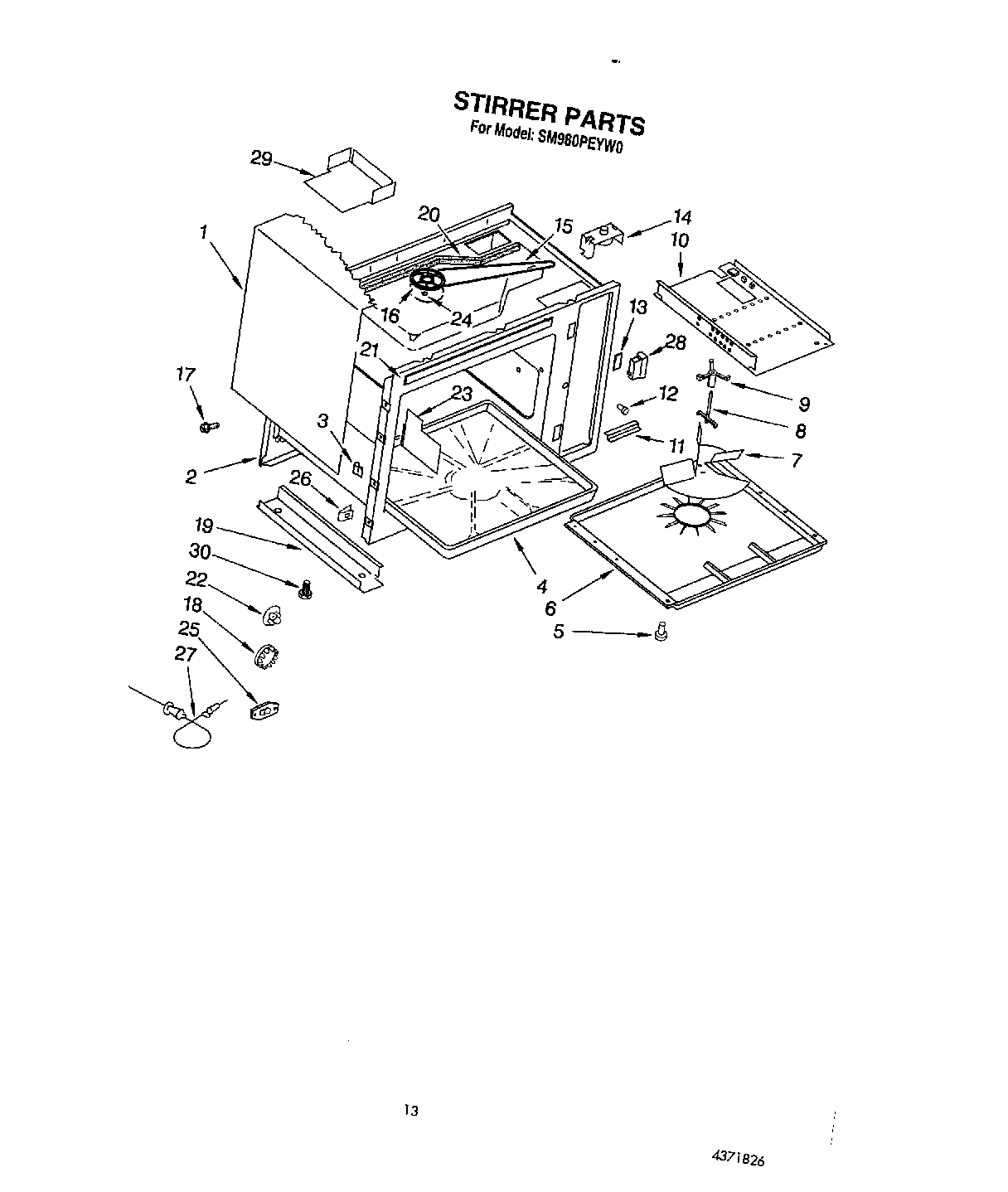

SM980PEYW0 13 – STIRRER

SM980PEYW0 13 – STIRRER

Written by

in

SM980PEYW0 13 – STIRRER

Products

PositionProduct
1Wrapper
2Liner (Not A Serviceable Part)
3Fastener, U Type
4Tray, Glass
5Rivet (10)
6Cover, Stirrer
7Fan, Stirrer
8Support, Stirrer
9Collar, Stirrer
10Channel, Base RH
11Bracket, Support
12Grommet, Door
13Bezel, Latch
14Motor, Stirrer (With Belt)
15Belt, Stirrer
16Pulley, Stirrer
17Screw, Wrapper (13)
18Plug, Button (2)
19Channel, Base LH
20Foam, Air Duct
22Plug, Button (8)
23Shield, Oven Light
24Washer, Pulley
25Plug, Button
26Fastener, Hinge Mtg
27Probe
28Receptacle, Probe
29Baffle, Panel
30Stud, Ground
