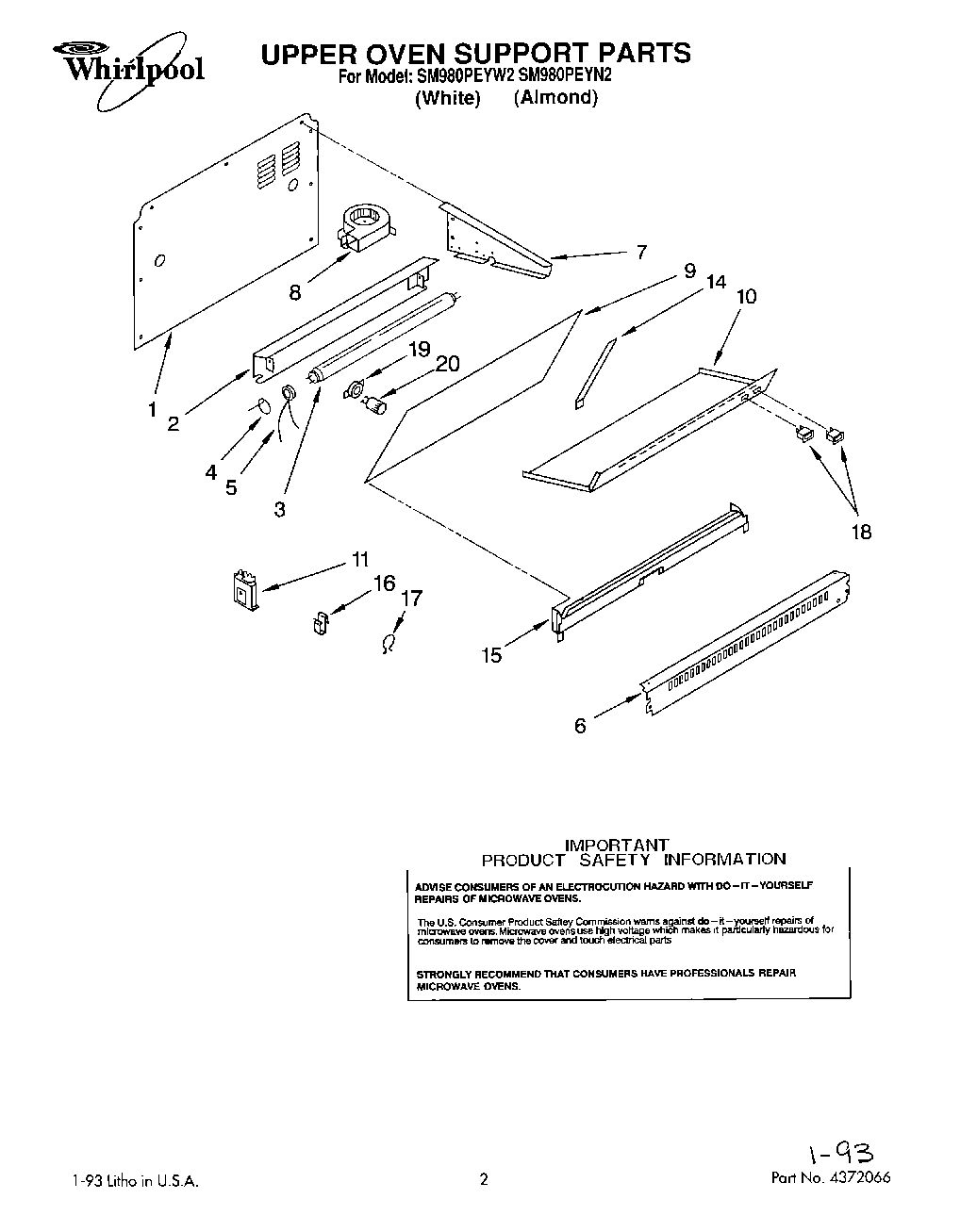

SM980PEYW2 01 – UPPER OVEN SUPPORTadmin2025-04-26T11:23:47+00:00SM980PEYW2 01 – UPPER OVEN SUPPORT
Products
| Position | Product |
|---|
| 1 | Back, Middle Wall |
| 2 | Reflector |
| 3 | WP95292 Whirlpool Fluorescent Light Bulb |
| 4 | Insulator (2) |
| 5 | Receptacle |
| 6 | Vent, Trim |
| 7 | Support, Oven (Right Hand) |
| 7 | Support, Oven (Left Hand) |
| 8 | Blower, Assy |
| 9 | Glass, Splasher |
| 10 | Splasher, Panel (upper) |
| 11 | Ballast |
| 14 | Trim, Side (Right Hand) |
| 14 | Trim, Side (Left Hand) |
| 15 | Trim, Upper Oven Spl. Filler |
| 16 | Fastener, Cable |
| 17 | Fastener, Wire |
| 18 | WP4314961 Whirlpool Lite Switch |
| 19 | Starter, Receptacle |
| 20 | Button, Glide |
