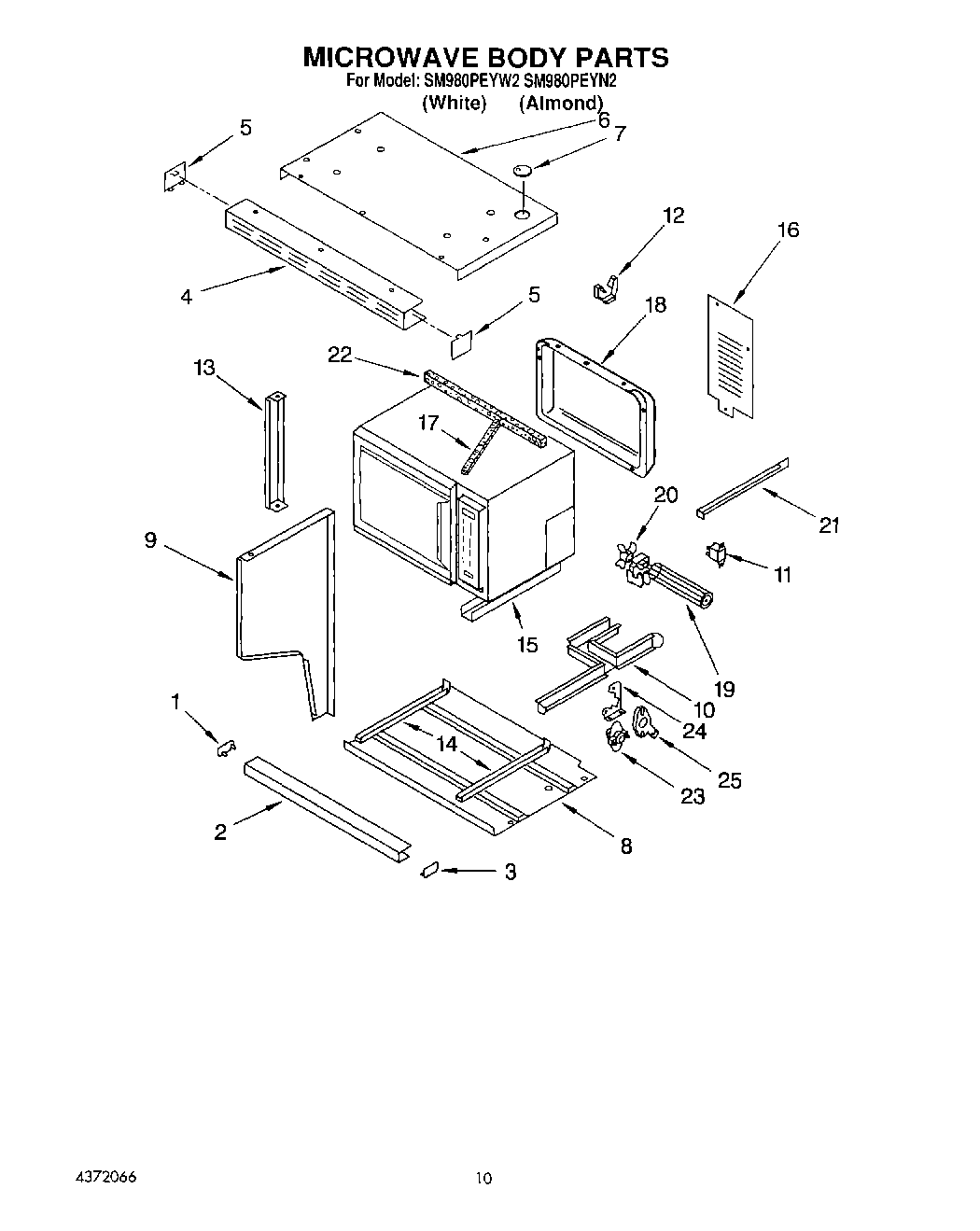

SM980PEYW2 09 – MICROWAVE BODY

Products

Position	Product
1	Endcap, LH
2	Trim, Bottom
3	Endcap, RH
4	Trim, Top Vent
5	Endcaps, Vent Trim
6	Panel, Top
7	Cover, Outlet
8	Panel, Top
9	Panel, Back Side (Right (White))
9	Panel, Back Side (Left (Almond))
9	Panel, Back Side (Right (Almond))
9	Panel, Back Side (Left (White))
10	Duct, Air
11	Relay, Fan
12	Fastener, Wire
13	Trim, Side
14	Channel, Slide (2)
15	Channel, Slide (2)
16	Cover, Access
17	Foam, Air Duct (2)
18	Cover, Vent
19	Motor, Cooling Fan
20	Plate, Fan Mtg.
21	Support, Corner
22	Foam, Air Duct
23	Switch, Cutout
24	Bracket, Switch Mtg
25	Cutout, Thermal
