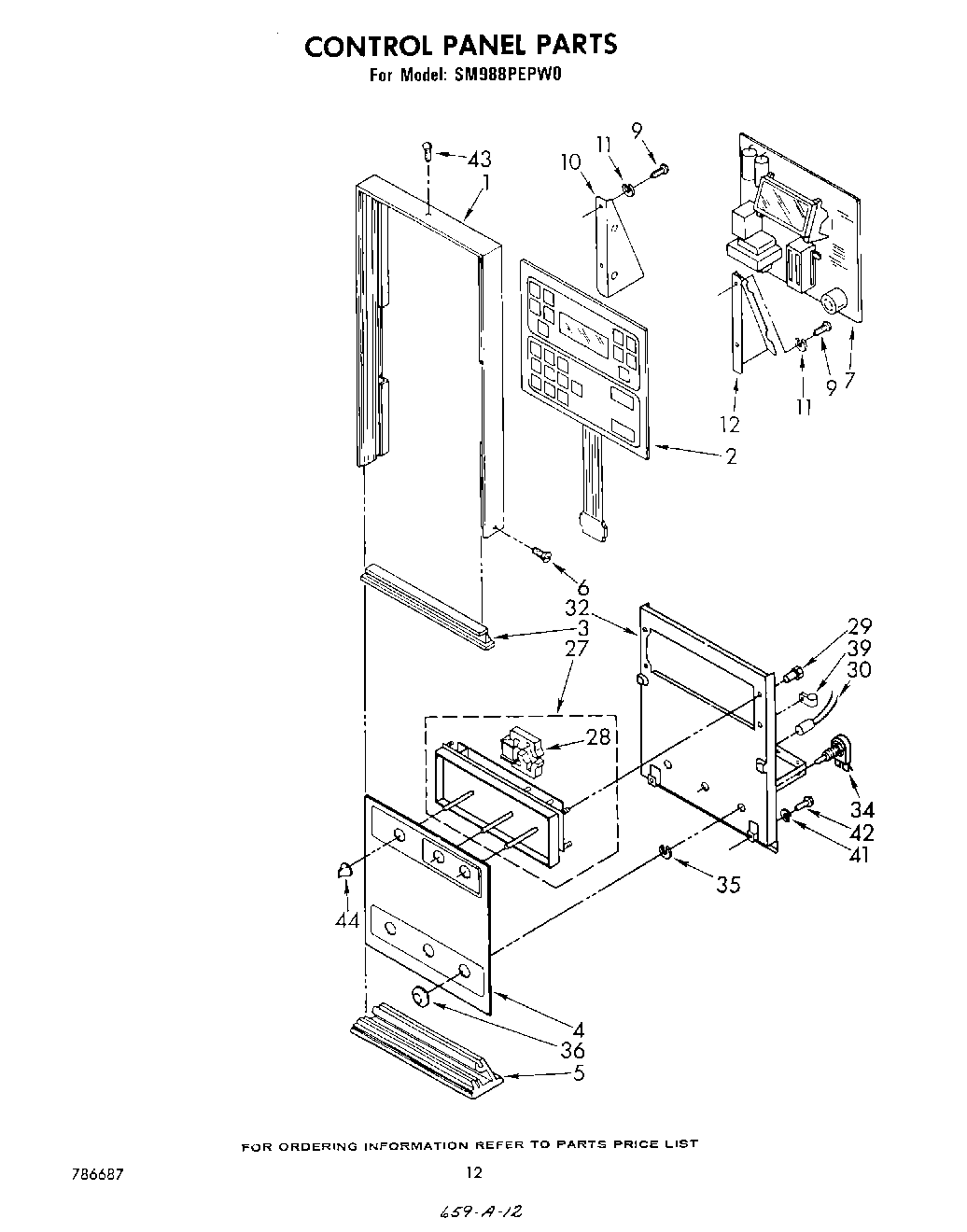

SM988PEPW0 09 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Membrane, Switch
3	Splice Panel
4	Support-Top Burner
4	Glass, Control Panel
5	Bottom Cap, Control Panel
6	NAMEPLATE
7	Board, Power Control
10	Bracket, P.C. Board
12	Bracket, P.C. Board
27	Timer, Auto (Includes Illus. 28)
28	Motor, Timer
29	Nut, Aluminum (4)
30	Indicator Light
32	Bracket, Control Mounting
32	SCREW
34	Switch, Oven Light (2)
35	Lockwasher
36	Bezel Switch (1)
39	WP308605 Whirlpool Refrigerator Clamp
39	WP965173 Whirlpool Dishwasher Screw
41	Lockwasher
42	WP313808 Whirlpool Screw
43	Screw
44	WP3169181 Whirlpool Knob
44	Spring (3)
