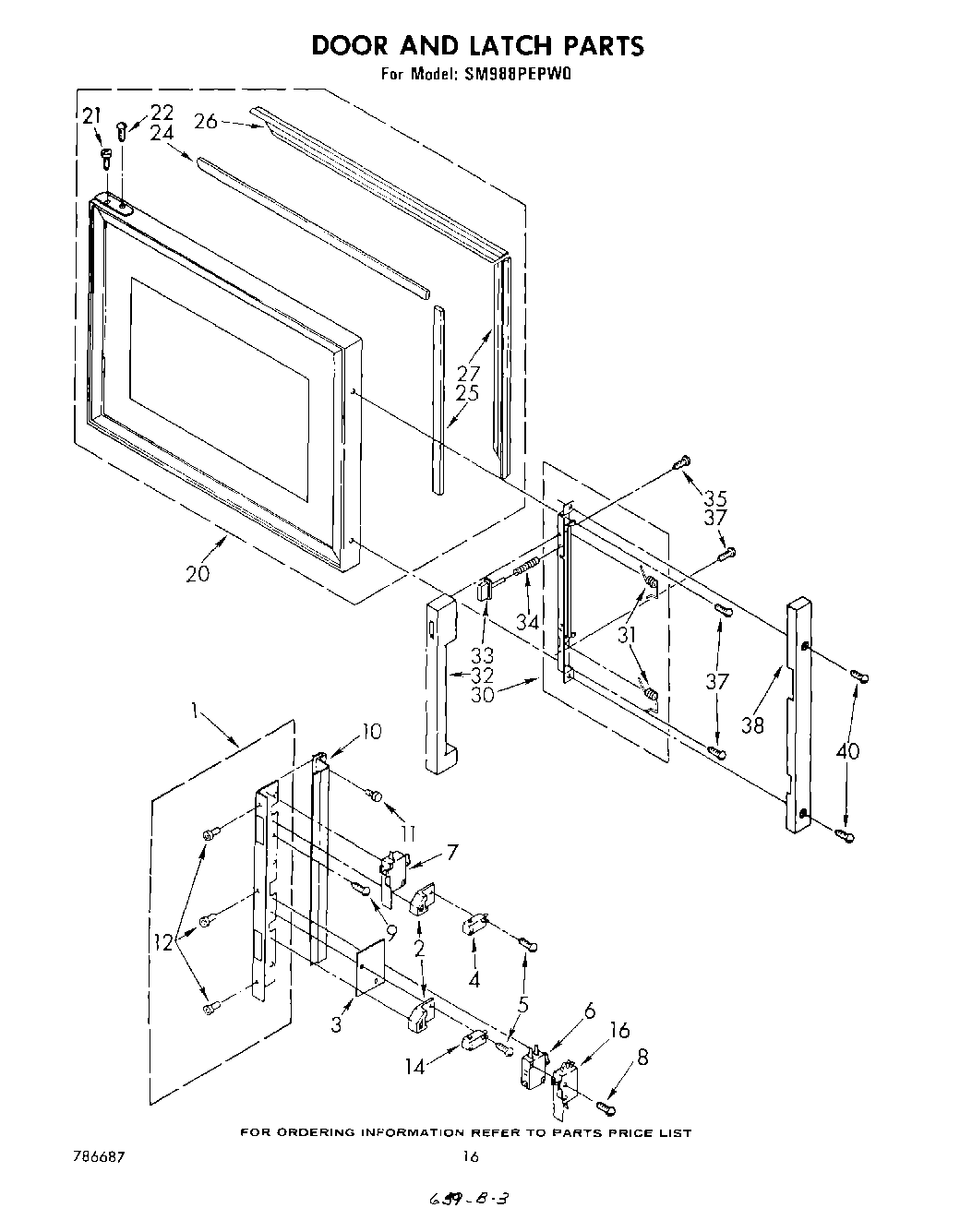

SM988PEPW0 12 – DOOR AND LATCH

Products

Position	Product
1	screw
1	Bracket, Catch
2	Catch (2)
3	Insulator
5	WPL 312717
6	Switch (Alt.)
6	Spring
6	Switch
7	Switch, Miniature
8	Screw, 4-40 x 10 (2)
9	WPL 309080
10	shield
11	Fastener (2)
12	Rivet, Pop (3)
14	814037 Whirlpool Microwave Switch
16	Switch, Light/ Monitor
16	Switch, Light Monitor (Alt.)
16	Switch, Light Monitor (Alt.)
20	Door
21	WPW10068250 Whirlpool Dishwasher Screw
24	Seal, Top & Bottom (2)
24	Seal, Top & Bottom (2) (Alternate)
24	Seal, Top & Bottom (2) (Alternate)
25	Seal, Sides
25	Seal, Sides (Alternate)
25	Seal, Sides (Alternate)
26	Retainer, Top & Bottom Seals (2)
27	Retain, Side Seal (2)
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door
33	Button, Door Handle
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	Screw, 8-32 Fillister Head Thread Form
37	WP489128 Whirlpool Refrigerator Screw
38	WPL 312350
40	Screw, 8-32 x 5/16 (2)
