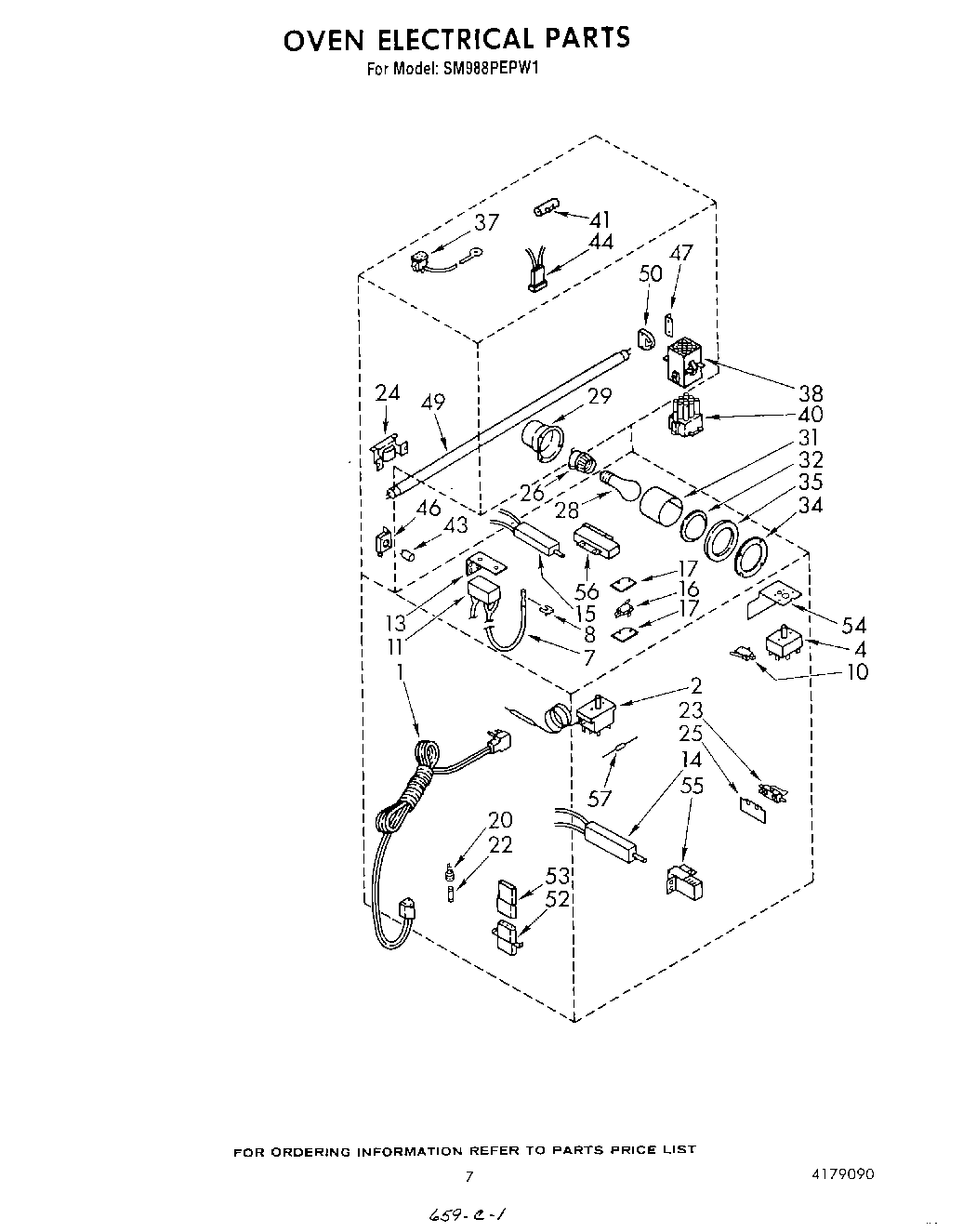

SM988PEPW1 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Switch, Burner
11	Module, Spark
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
16	Switch, Oven Door Latch
17	Insulator, Switch
20	Holder, Fuse
22	Fuse, 5 AMP
23	Switch, Aux. Light
24	Ballast
25	Insulation, Door Switch (2)
26	Socket, Oven Lamp
28	RANGE ONLY 40W 120V APPL BULB
29	Housing, Oven Light
31	Retainer, Insulation
32	Lens, Oven Light
34	Retainer, Oven Light Lens
35	Gasket, Oven Light
37	Outlet, Fan Motor
38	Cap, 9 Pin Connector
40	Plug, 9 Pin Connector
41	Receptacle, 1 Circuit
43	Starter, Fluorescent
44	Plug, 2 Circuit
46	Socket, Starter
47	Support Bracket, Socket
49	WP95292 Whirlpool Fluorescent Light Bulb
50	Lampholder Fluorescent
52	Receptacle
53	Plug, 3-Pin
54	Insulator, Control (2)
55	Bracket, Bake Ignitor
56	Bracket, Broiler Ignitor
57	Resistor, 10 K
