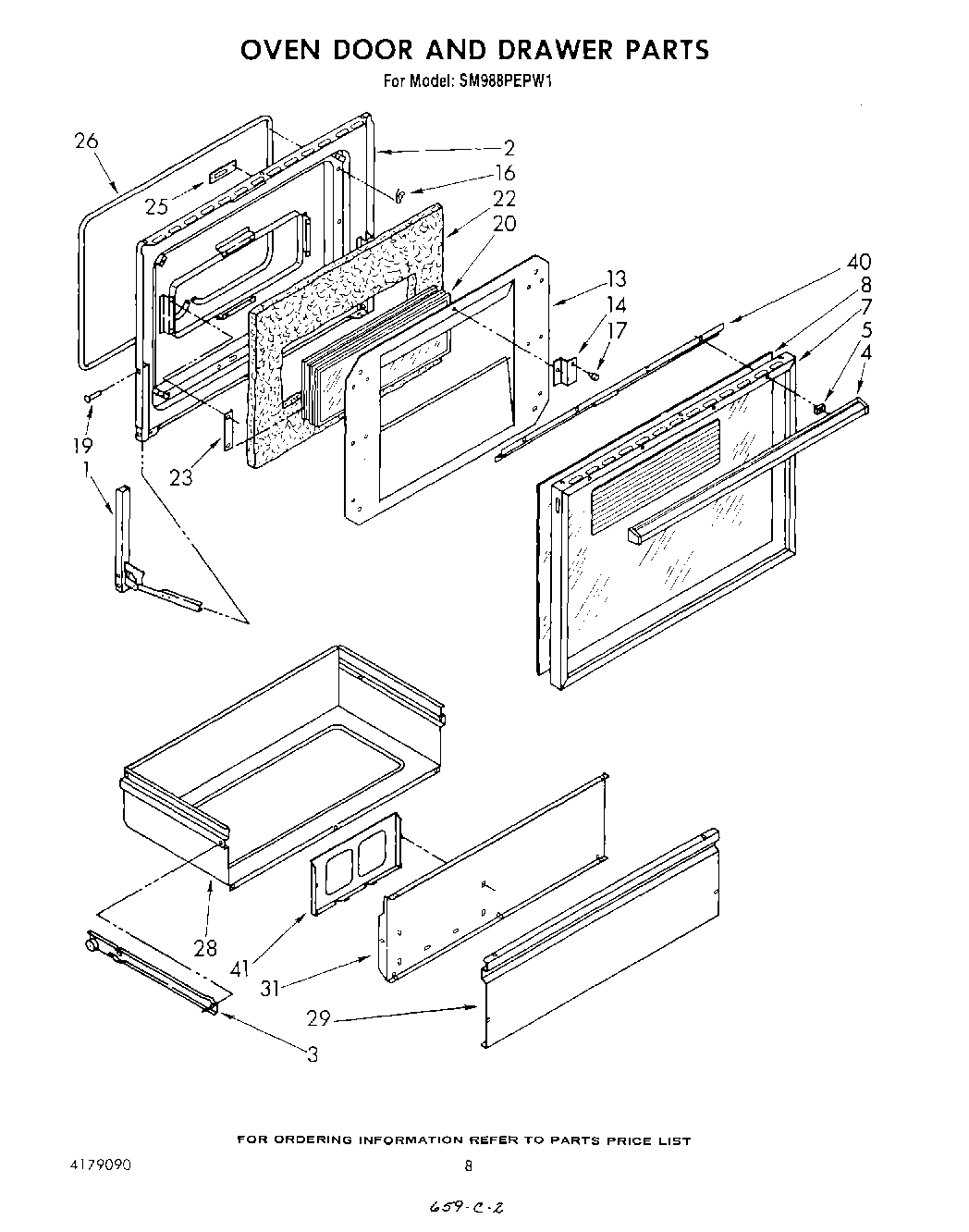

SM988PEPW1 06 – OVEN DOOR DRAWER, LITERATURE AND OPTIONAL

Products

Position	Product
	Guide, Cooking
	Cook
	WPL LIT4179090
	WPL LIT786299
	WPL LIT312880
	WPL LIT786301
1	Hinge, Oven Door (R.H.)
1	Hinge, Oven Door (Left Side)
2	Liner, Oven Door
2	Screw, 8-32 X 5/8 (4)
2	WP965173 Whirlpool Dishwasher Screw
2	WP308685 Whirlpool Microwave Screw
2	WP488130 Whirlpool Air Conditioner Nut
3	Runner (L.H.)
3	runner (R.H.)
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper Window (5)
19	Pin, Hinge (2)
20	Window Assembly
22	WPW10208653 Whirlpool Insulation
23	Retainer, Window (4)
25	Plate, Latch
26	Gasket Assembly
28	Wrapper, Storage Drawer
29	Panel, Drawer (White)
29	Panel, Drawer (Toast)
29	Panel, Drawer (Platinum)
29	Panel, Drawer (Almond)
31	Liner, Door Panel
40	Baffle, Air
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25“ Roll (White 14 GA.)
41	Wire, 25` Roll (Black 14 Ga.)
41	Wire (14 Ga. 200 c Brown)
41	Rack, Literature
41	WP482338 Whirlpool Refrigerator Adhesive
41	1
41	WPL 591014
41	261900 Whirlpool Microwave Spray
41	Wire (12 Ga. 150 c Black)
41	Wire (14 Ga. 150 c Yellow)
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Orange)
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Blue)
41	WP261869 Whirlpool Microwave Paint
41	242831 Whirlpool Oven Wire
41	18 Ga. 80~c Rating (Red)
