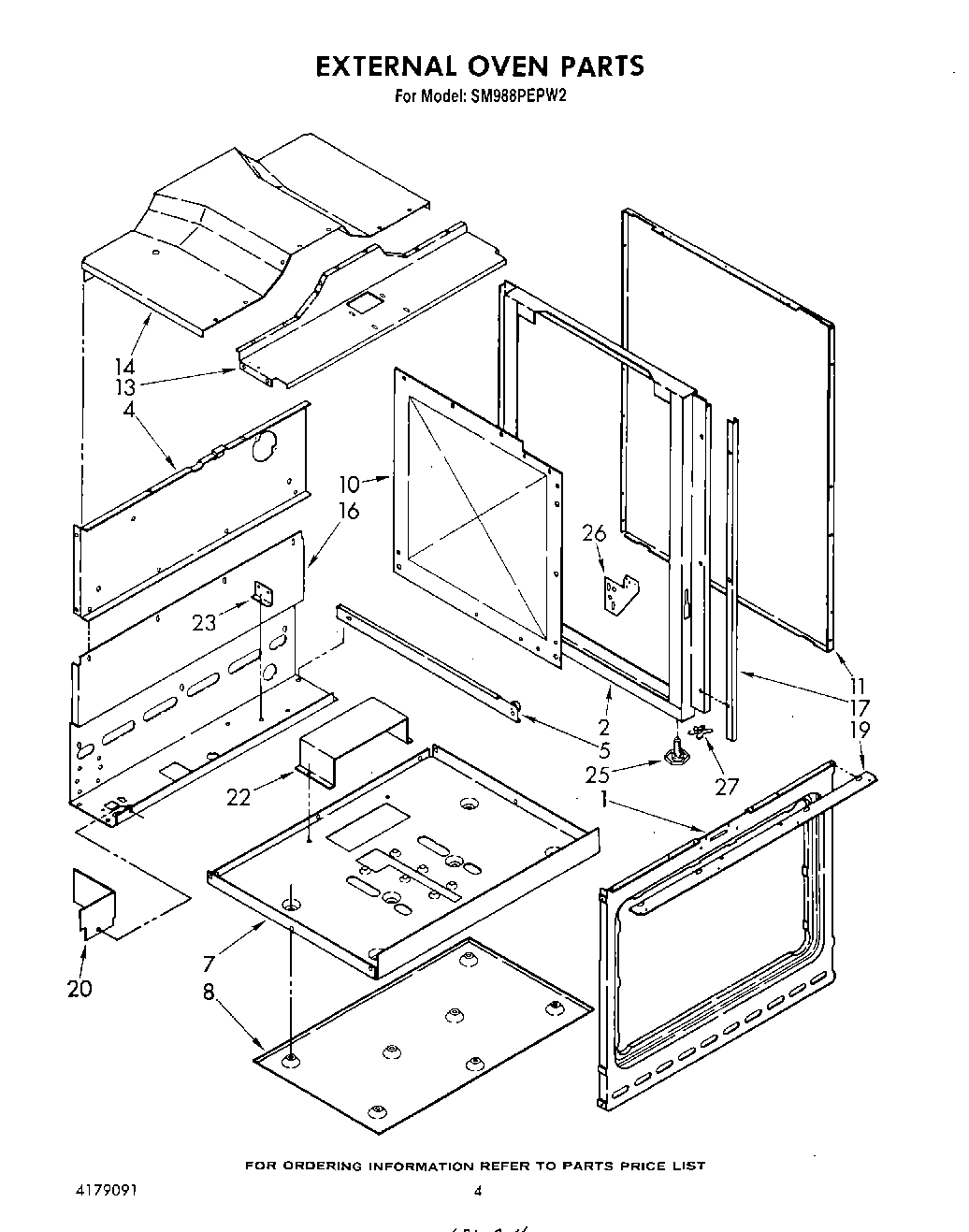

SM988PEPW2 03 – EXTERNAL OVEN

Products

Position	Product
1	WP965173 Whirlpool Dishwasher Screw
1	Frame, Front
2	Frame, Side (Left Side)
2	Frame, Side (Right Side)
4	Rear Panel, Upper
5	Track, Storage Draw (Left Side)
5	Track, Storage Draw (Right Side)
7	Retainer, Bottom Insulation
8	Heat Shield,
10	Retainer, Insulation (2)
11	Panel, End (2) (Toast)
11	Panel, End (2) (Platinum)
11	Panel, End (2) (Almond)
11	Panel, End (2) (White)
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	WP486754 Whirlpool Compactor Screw
16	bushing, snap
16	nut, 6-32
16	WP488130 Whirlpool Air Conditioner Nut
16	Rear Panel, Lower
17	Trim, Side Panel (2)
19	Frame, Filler Front
20	Plate, Cover
22	Cover, Burner
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
26	Bracket, Door Switch
27	Nut (4)
