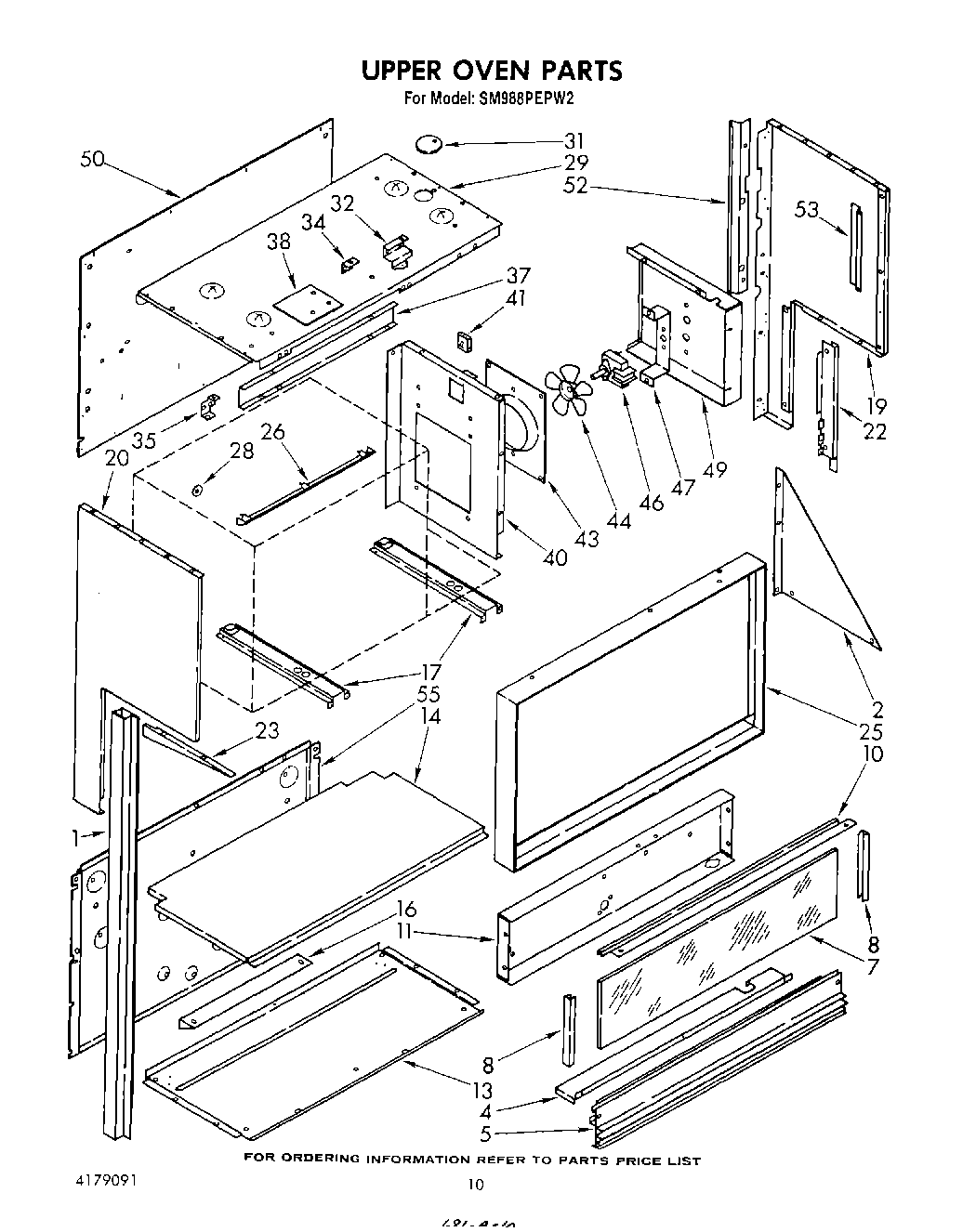

SM988PEPW2 07 – UPPER OVEN

Products

Position	Product
1	Support, Upper Oven (L.H.)
1	Support, Upper Oven (R.H.)
2	Brace, Shelf (R.H.)
2	Brace, Shelf (L.H.)
4	Shield, Heat
5	Trim, Lower
7	WPL 786672
8	Trim, Glass
10	Trim, Rear
11	Panel, Surface Light
13	Panel, Bottom
14	Shelf, Upper Oven
16	Bracket, Module Shelf
17	Bracket, Shelf Runner
19	Panel, Side (R.H.) (White)
19	Panel, Side (R.H.) (Platinum)
19	Panel, Side (R.H.) (Toast)
19	Panel, Side (R.H.) (Almond)
20	Panel, Side (L.H.) (Almond)
20	Panel, Side (L.H.) (White)
20	Panel, Side (L.H.) (Platinum)
20	Panel, Side (L.H.) (Toast)
22	Trim Support, Lower (R.H.)
22	Trim Support, Lower (L.H.)
23	Trim Strip, Side (L.H.)
23	Trim Strip, Side (R.H.)
25	Frame, Outer
26	Deflector
28	WP90296 Whirlpool Clip
29	Panel, Top
31	Cover, Plate
32	Bracket, Control Panel Mounting
34	Bracket, Frame Mounting
35	Bracket, Chassis Mounting
37	Deflector, Air
38	Shield
40	Housing, Fan
41	Connector, 3- Circuit
43	Plate, Fan Mounting
44	Blade, Fan
46	Motor, Fan
47	Bracket, Motor Mounting
49	Cover, Fan
50	Panel, Cover
52	Spacer, Wall (R.H.)
52	Spacer, Wall (L.H.)
53	Bracket, Side
55	Panel, Cover
