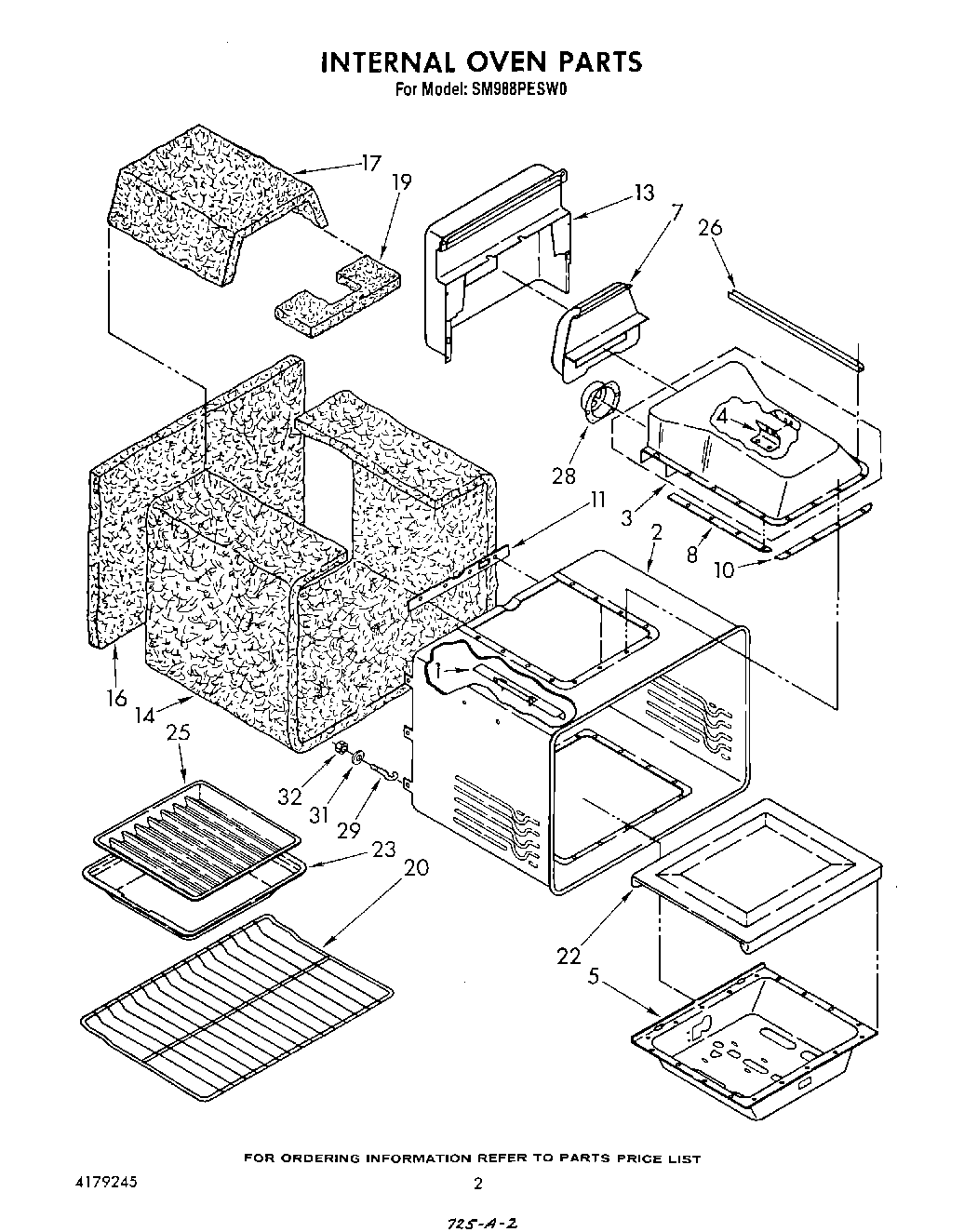

SM988PESW0 02 – INTERNAL OVENadmin2025-04-26T11:23:07+00:00SM988PESW0 02 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Sheild, Thermostat Bulb |
| 2 | Oven 30`` Self-Clean |
| 3 | Chamber, Broiler Burner |
| 4 | Screw (3) |
| 4 | Bracket, Ignitor |
| 5 | Burner, Box, Lower |
| 7 | Flue, Inner |
| 8 | Gasket, Side Chamber |
| 10 | Gasket, Front Chamber |
| 11 | Gasket, Oven Back |
| 13 | SWITCH & CABLE MOUNTING ASSY |
| 14 | WPW10208653 Whirlpool Insulation |
| 20 | Rack, Oven (2) |
| 22 | Bottom, Oven |
| 23 | Pan, Broiler |
| 25 | Grid, Broiler |
| 26 | Channel, Broiler Burner |
| 28 | Duct, Cup |
| 29 | Hook Bolt, Oven Shell |
| 31 | Washer |
| 32 | Nut, Hex 10-32 |
