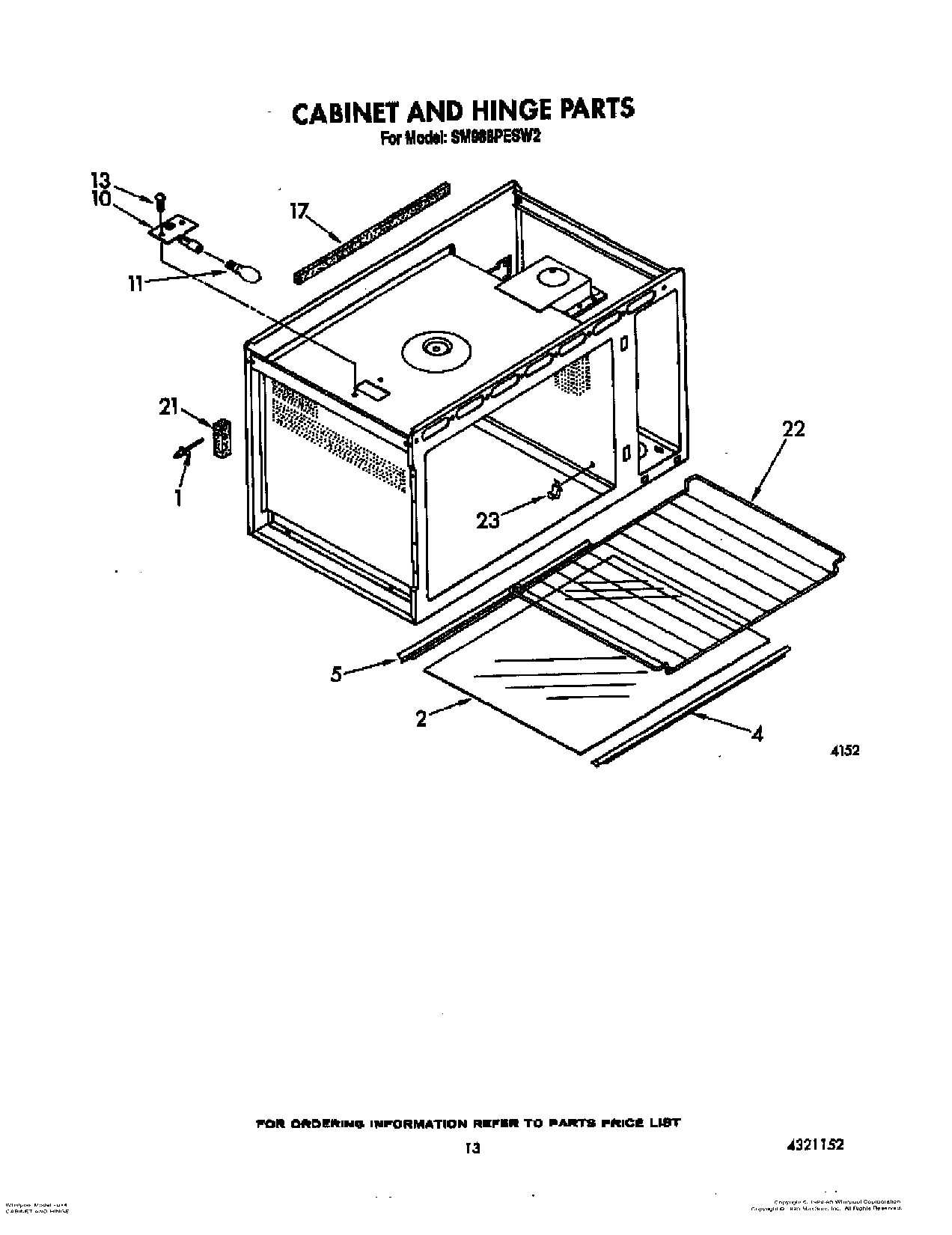

SM988PESW3 09 – CABINET AND HINGE

Written by

Products

Position	Product
1	Rivet (3)
2	Shelf, Microwave (Install with Silastic 482338)
4	Trim, Shelf (Front)
5	Trim, Shelf (Rear)
10	Snap-In Socket
11	WP3395618 Whirlpool Light Bulb
13	screw
17	Seal, Foam
21	Seal, Foam
22	rack, wire
23	WP3149478 Whirlpool Microwave Support
