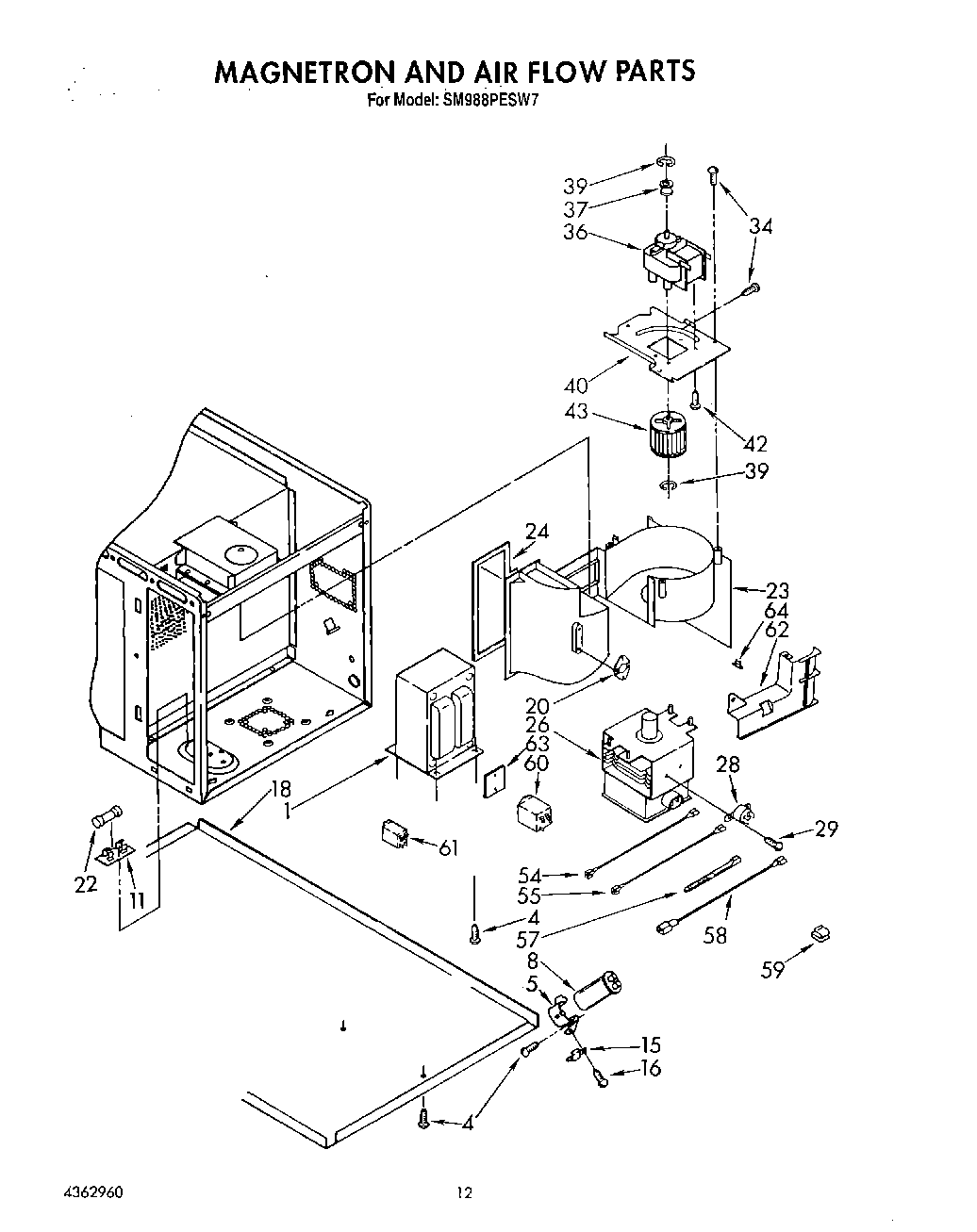

SM988PESW7 09 – MAGNETRON AND AIR FLOW, OPTIONAL

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor
114454949 Whirlpool Oven Fuse Block
15Rectifier, High Voltage
16screw
18Base, Chassis (Not Serviceable)
20Screw
20Thermostat
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24Seal, Air Duct
26Magnetron
28Thermal Protector
29Screw, 6A x 3/8 (2)
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
36Transmotor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
54Jumper, High Voltage Black 6-5/16“
55Jumper, High Voltage Red (6-5/16“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
59Clip
60Relay, Vent (24V, Clear)
61697811 Whirlpool Relay
62Extension, Air Duct
63Insulator, Power Relay
64Wire, 25` Roll (Red 14 Ga.)
64WP482338 Whirlpool Refrigerator Adhesive
64Thermostat, Fixed
64Wire, 25“ Roll (White 14 GA.)
64Recirculating Kit
64242831 Whirlpool Oven Wire
64Wire (14 Ga. 150 c Blue)
64Wire (14 Ga. 150 c Brown)
64261900 Whirlpool Microwave Spray
64WPL 591014
641
64Screw
64Wire (14 Ga. 200 c Brown)
6418 Ga. 80~c Rating (Red)
64Wire (12 Ga. 150 c Black)
64Wire (14 Ga. 150 c Yellow)
64Wire (14 Ga. 150 c Orange)
64Wire (14 Ga. 150 c Green)
64Wire, 25` Roll (Black 14 Ga.)
