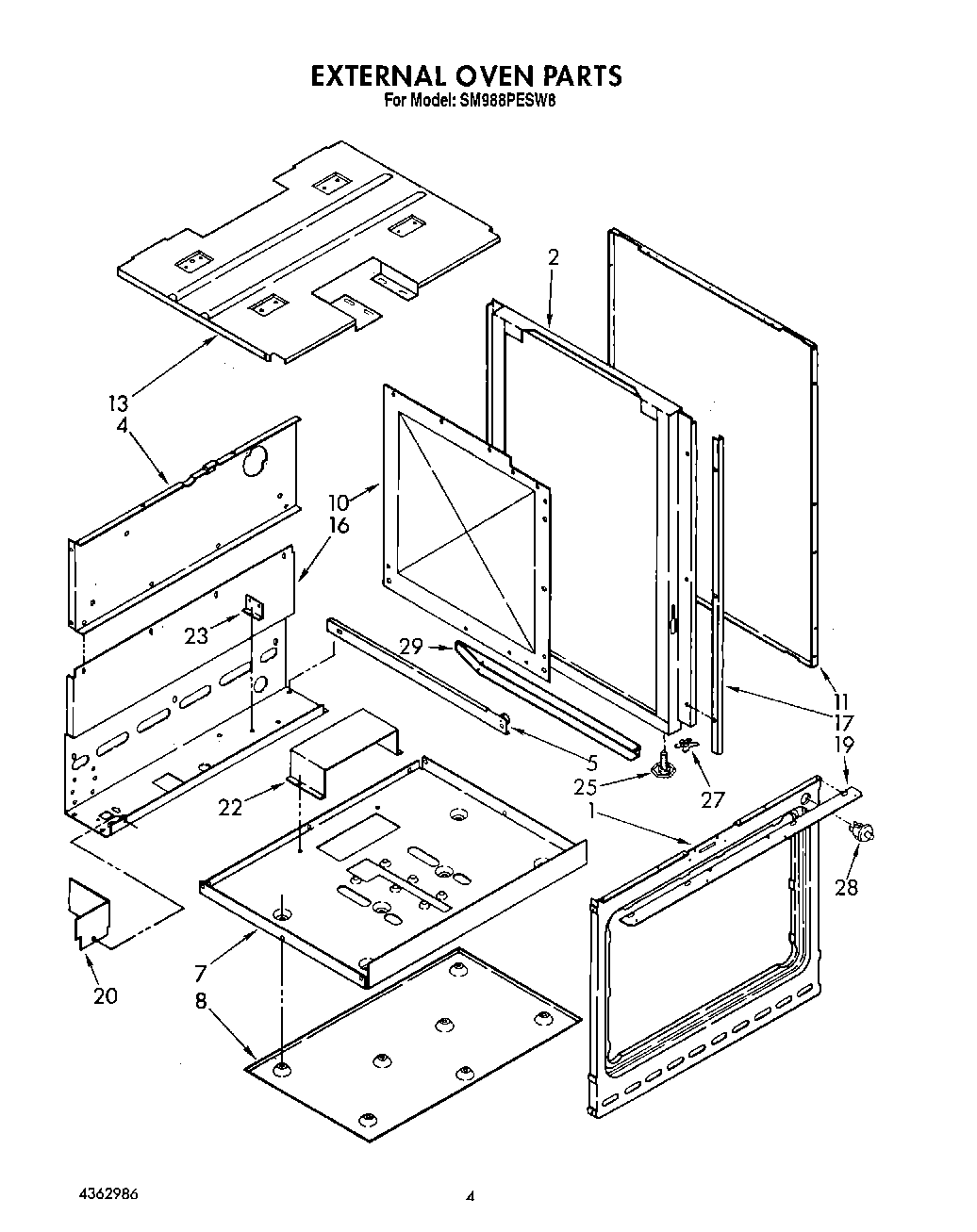

SM988PESW8 03 – EXTERNAL OVEN

Products

Position	Product
1	WP965173 Whirlpool Dishwasher Screw
1	Frame, Front Not Serviceable
2	Panel, End (2)
4	Rear Panel, Upper
5	Track, Storage Draw (Left Side)
5	Track, Storage Draw (Right Side)
7	retainer, bottom insulation
8	Heat Shield,
10	Retainer, Insulation (2)
11	Panel, End (2) (Almond)
11	Panel, End (2) (White)
13	Retainer, Top Insulation
16	WP488130 Whirlpool Air Conditioner Nut
16	Rear Panel, Lower
16	nut, 6-32
16	Bushing, Snap
16	WP486754 Whirlpool Compactor Screw
17	Trim, Side Panel (2)
19	Filler, Front Frame
20	Plate, Cover
22	Cover, Burner
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
27	Nut (4)
28	Switch, Oven Door
29	Brace, Bottom (L.H.)
29	Brace, Bottom (R.H.)
