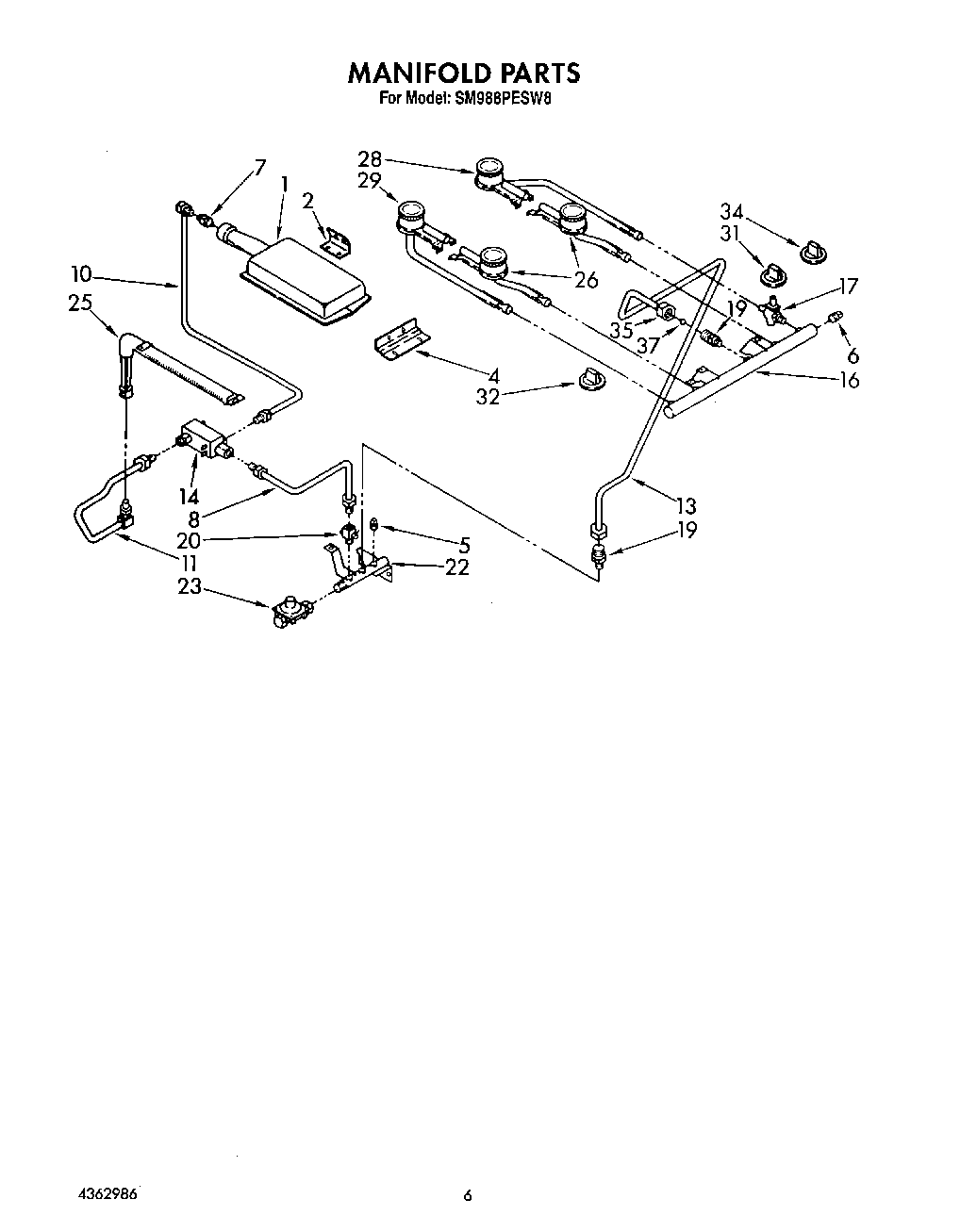

SM988PESW8 04 – MANIFOLD, WIRING HARNESS

Products

PositionProduct
1Burner, Ultra Ray Broiler
2Screw (2)
2Bracket, Ignitor
4Bracket, Burner Mounting
5W10295523 Whirlpool Plug
6Pipe Plug, 3/8 NPT
7LP Gas No. 58
7Orifice (No.50 Nat. Gas)
8Tubing (Inlet To Gas Valve)
10Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11hood & tubing assembly (gas valve to lower oven burner)
13Tubing (Inlet To Manifold)
14Valve, Dual Gas Valve
16Plate, Cover
17Valve, Top Burner (Tri-Set)
19Fitting
20Valve, Shut Off
22Inlet
23Regulator, Pressure
25Oven Burner, Lower
26Top Burner, Front (2)
28Top Burner, R.R.
29Top Burner, L.R.
31Knob, Top Burner (4)
32Knob, Oven Control
34Knob, Selector
35Nut, Compression 3/8
37Sleeve, Compression 3/8
