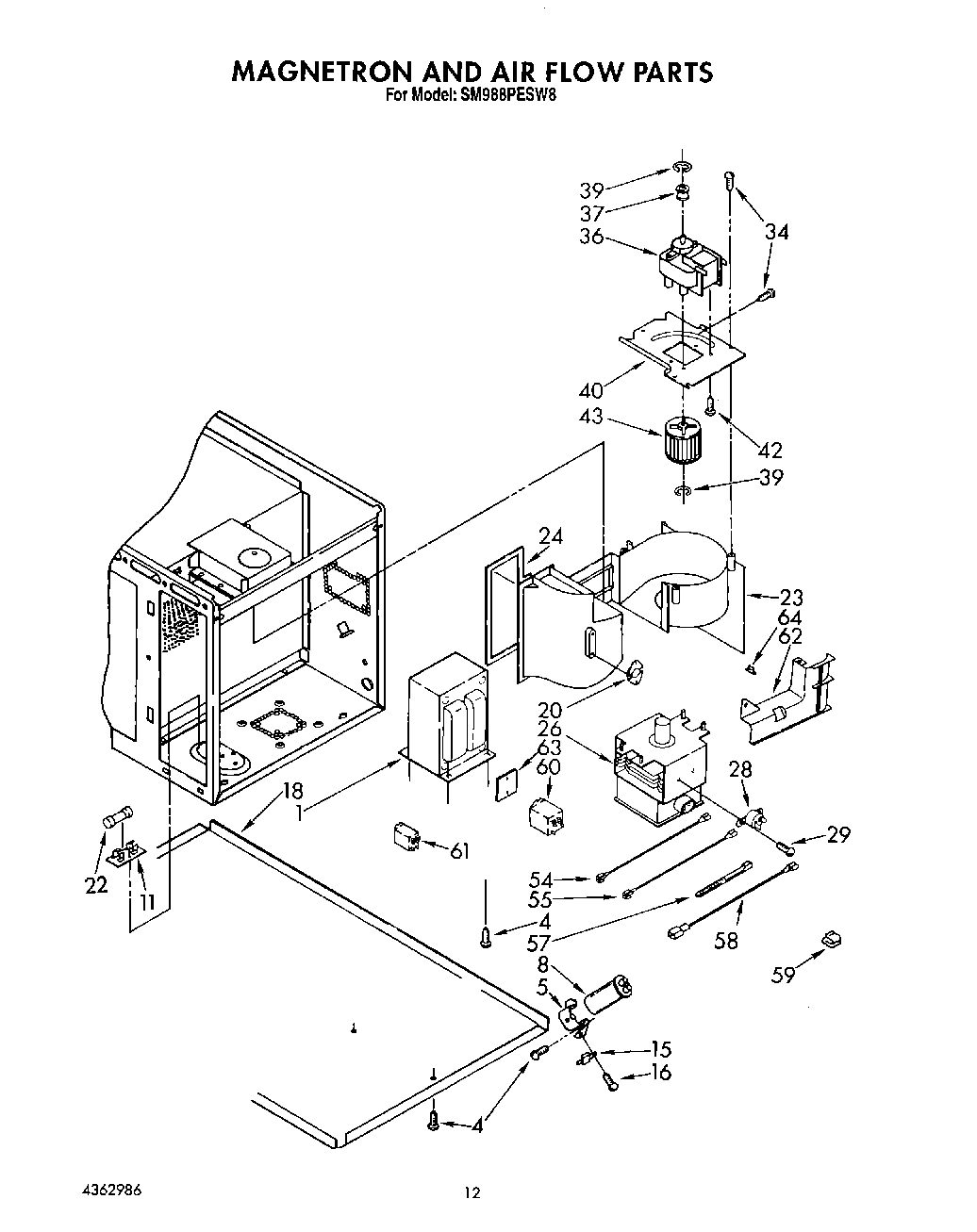

SM988PESW8 09 – MAGNETRON AND AIR FLOW

SM988PESW8 09 – MAGNETRON AND AIR FLOW

Written by

in

SM988PESW8 09 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor
114454949 Whirlpool Oven Fuse Block
15Rectifier, High Voltage
16screw
18Base, Chassis (Not Serviceable)
20Screw
20Thermostat
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24Seal, Air Duct
26Magnetron
28Thermal Protector
29Screw, 6A x 3/8 (2)
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
36Transmotor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
54Jumper, High Voltage Black 6-5/16“
55Jumper, High Voltage Red (6-5/16“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
59Clip
60Relay, Vent (24V, Clear)
61697811 Whirlpool Relay
62Extension, Air Duct
63Insulator, Power Relay
64Screw
64Thermostat, Fixed
