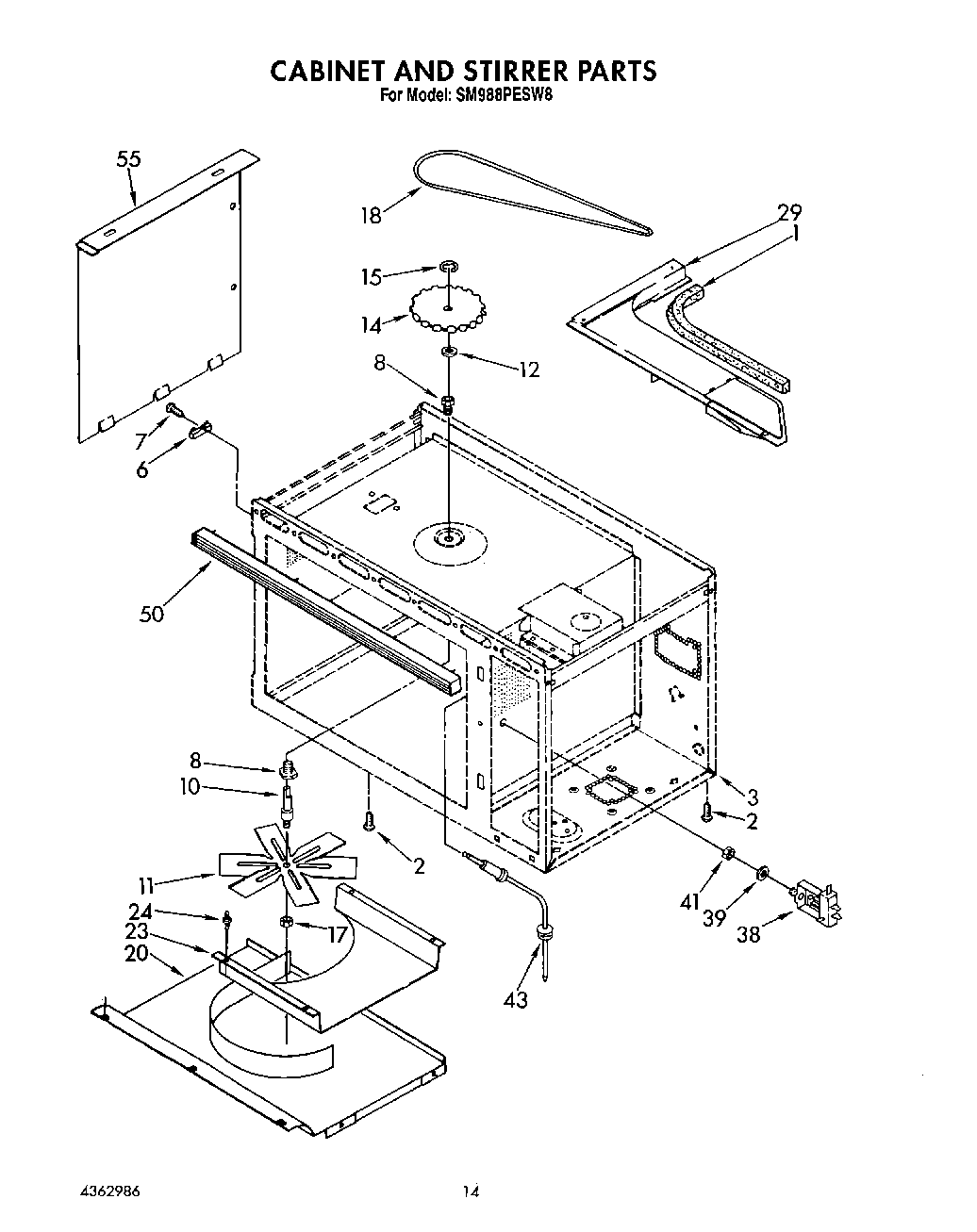

SM988PESW8 10 – CABINET AND STIRRER

Products

Position	Product
1	Seal, Foam
2	WP308685 Whirlpool Microwave Screw
3	Base, Cabinet (Not Serviceable)
6	Fuse, Thermal
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	``E`` Ring
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Fastener (4)
20	Silicone Rubber Gasket
23	Plate, Tuning
24	Support (4)
29	Baffle, Air Exhaust
29	Seal, Foam
38	Jack, Probe
39	Washer, Internal Lock
41	Nut
43	Probe Jack
50	Deflector, Air
55	screw, 8-32 x 1/2 (3)
55	Cover, Side
