SMH7150BC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

SMH7150BC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Written by

in

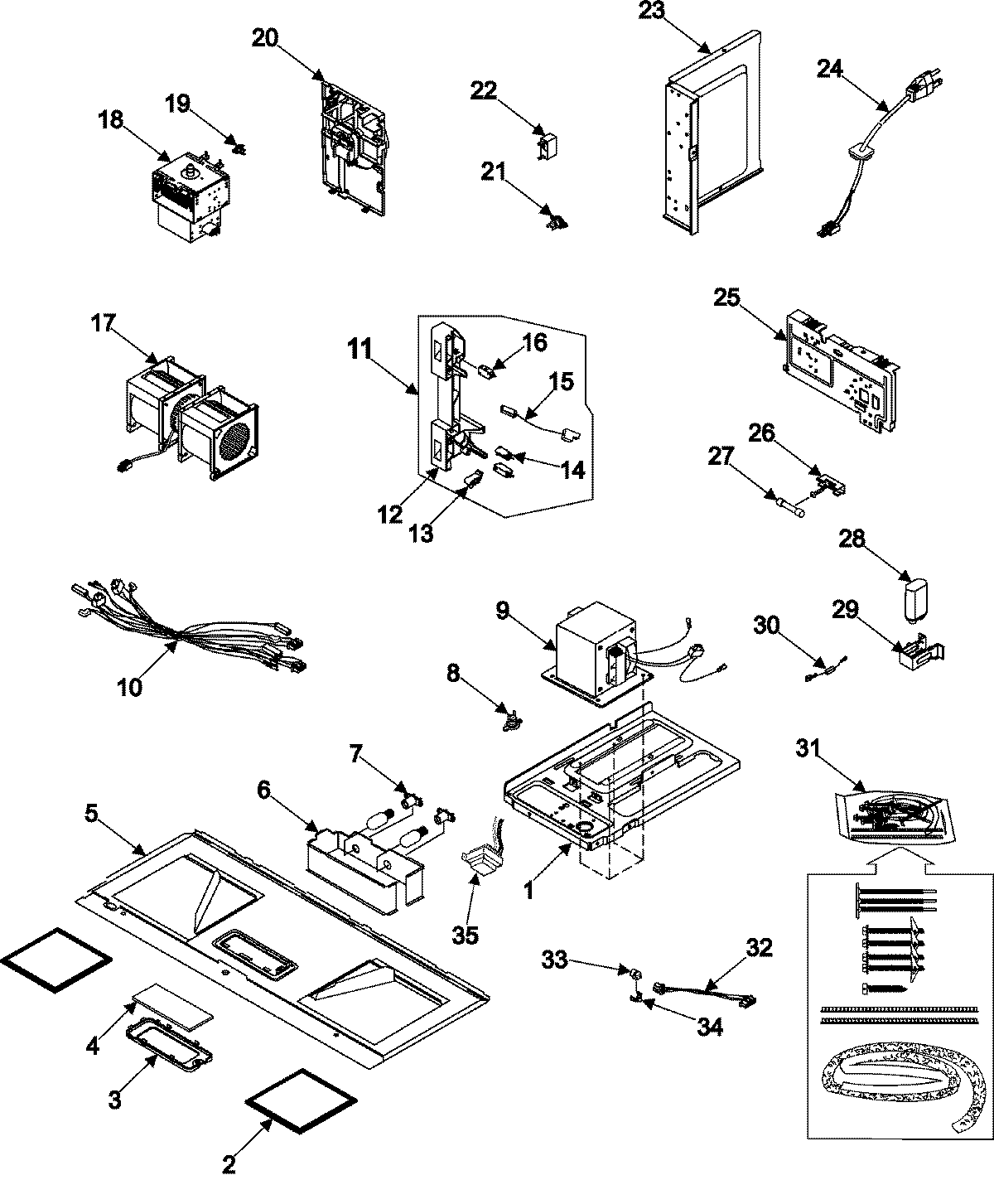

SMH7150BC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Products

PositionProduct
1MAY DE80-10121B
2DE63-30011A Samsung Range Microwave Oven ALUMINUM Air Filter
3MAY DE71-60385B
4MAY DE67-40152A
5MAY DE61-00245B
6MAY DE61-50464A
7HOLDER-LAMP
10MAY DE39-00024A
11MAY DE96-00154A
12LATCH BOARD
13DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
14MAY 3405-001033
15MAY DE39-40674A
16WP3405-001034 Whirlpool Microwave Switch
17MAY DE31-10178E
18MAY YOM75P10ESS
19DE47-20007A Samsung Microwave Oven Thermostat
20MAY DE92-90552C
21MAY DE47-20020A
22MAY DE59-50002A
23MAY DE72-50084A
24MAY DE39-10102A
25MAY DE61-50540A
26MAY 3602-001025
273601-001198 Samsung Fuse Cartridge
282501-001011 Samsung Microwave High Voltage Capacitor
29MAY DE61-50120A
30MAY DE91-70063A
31MAY DE92-90505D
32WIRE HARNESS-S
33DE32-60013A Samsung Sensor Gas
34MAY DE61-90111A
35MAY DE26-20155B
