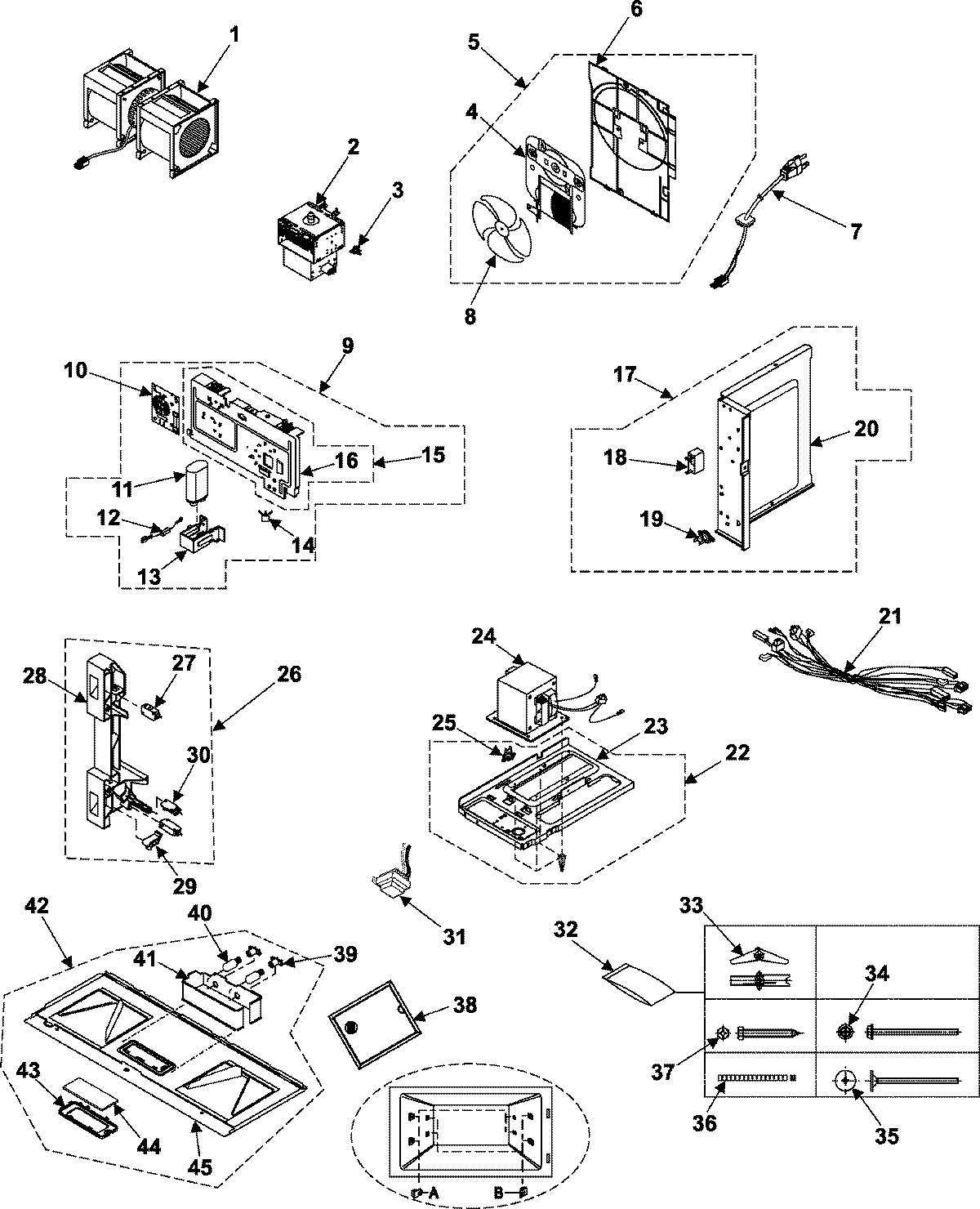

SMH7150BE 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Products

Position	Product
1	MAY DE31-10178A
2	MAY W10126787
3	DE47-20007A Samsung Microwave Oven Thermostat
4	MAY DE31-10177A
5	MAY DE92-90552C
6	MAY DE71-60455A
7	DE96-00218A Samsung Assembly Power Cord
8	BLADE, FAN
9	MAY DE93-90107L
10	DE96-00400A Samsung Microwave Oven Noise Filter Assembly
11	2501-001011 Samsung Microwave High Voltage Capacitor
12	DE91-70063D Samsung Oven Microwave High Voltage Diode
13	MAY DE61-50120A
14	SUPPORTER-PCB
15	MAY DE61-50540A
16	MAY DE61-50463A
17	MAY DE92-90500A
18	MAY DE59-50002A
19	MAY DE47-20020A
20	MAY DE72-50084A
21	MAY DE96-00492A
22	MAY DE96-00153B
23	MAY DE80-10121B
24	MAY DE26-10136B
26	MAY DE96-00154B
27	WP3405-001034 Whirlpool Microwave Switch
28	LATCH BOARD
29	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
30	MAY 3405-001033
31	MAY DE26-20155B
32	MAY DE92-90505D
33	DE60-30022A Samsung Toggle Nut
34	MAY DE60-20022A
35	MAY DE60-20066A
36	MAY DE63-10011A
37	DE60-10111A Samsung Screw LAG
38	DE63-30011A Samsung Range Microwave Oven ALUMINUM Air Filter
39	HOLDER-LAMP
40	LAMP-INCANDESCENT
41	MAY DE61-50464A
42	MAY DE97-00248A
43	MAY DE71-60385B
44	MAY DE67-40152A
45	MAY DE61-00245B
