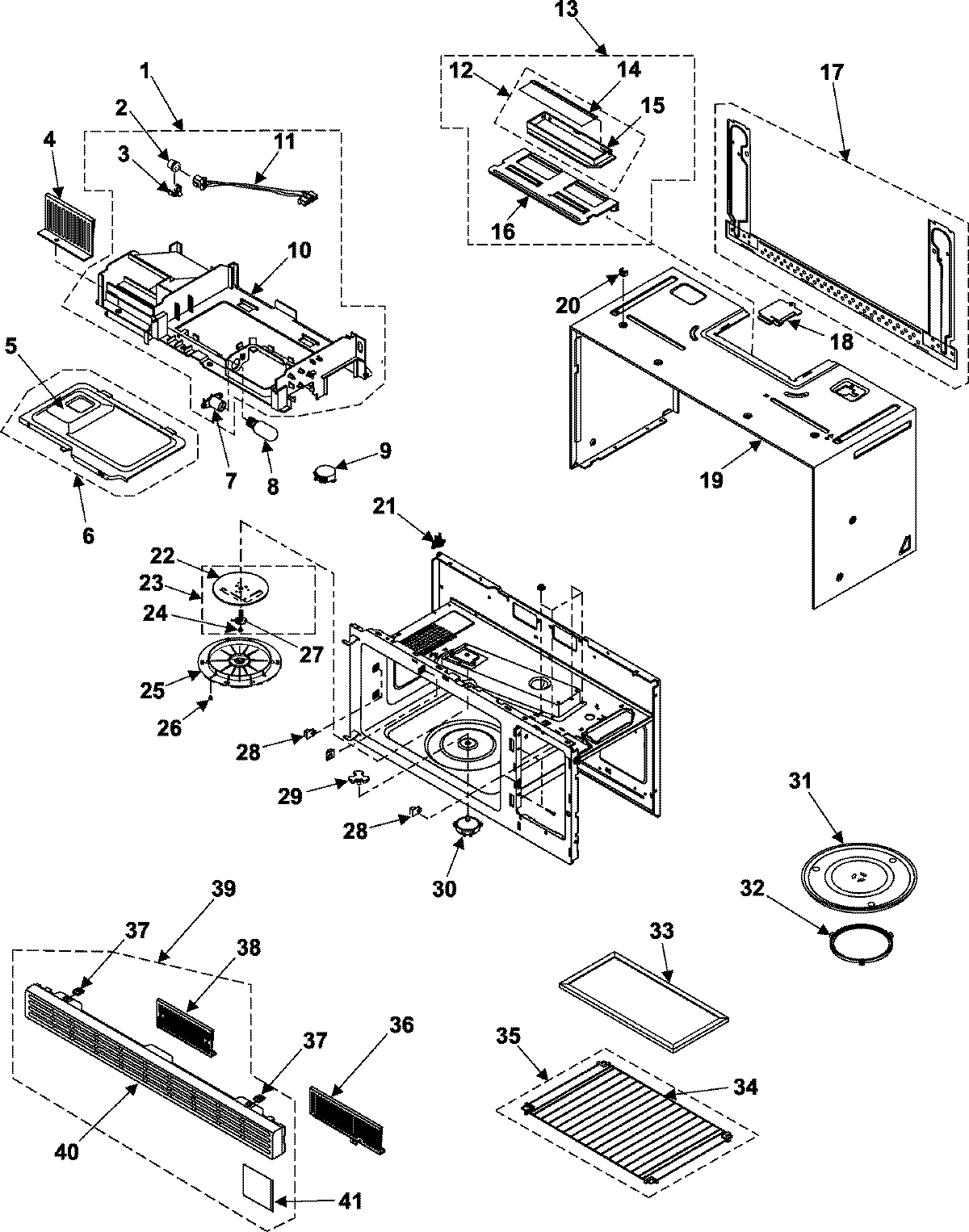

SMH7150CE 01 – BODY/CAVITY/ELEMENTS

Products

Position	Product
1	MAY DE92-90551D
2	SENSOR, GAS
3	MAY DE61-90111A
4	MAY DE61-50542A
6	MAY DE92-90509D
7	HOLDER-LAMP
8	LAMP-INCANDESCENT
10	MAY DE72-50098A
11	WIRE HARNESS-S
12	MAY DE92-90242A
13	MAY DE92-90242B
14	COVER-DAMPER
15	MAY DE72-40022A
16	MAY DE61-50545A
17	MAY DE97-00258A
18	MAY DE61-50507A
19	SEE NOTE GROUND WIRE, GREEN
20	DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
22	MAY DE31-00016A
23	MAY DE97-00178B
24	MAY DE61-90089B
25	COVER-STIRRER
26	MAY DE66-20095B
27	MAY DE61-00171A
28	DE61-00375A Samsung Holder Rack
29	MAY DE67-60012A
30	MOTOR, DRIVE
31	MAY DE74-20016A
32	ASSY-GUIDE ROLLER
33	MAY DE63-00367A
34	MAY DE75-00032A
35	MAY DE97-00438A
36	MAY DE71-60384A
37	MAY DE65-00004A
38	MAY DE61-00027A
39	MAY DE97-00249C
40	MAY DE64-00325C
41	MAY DE61-00363A
