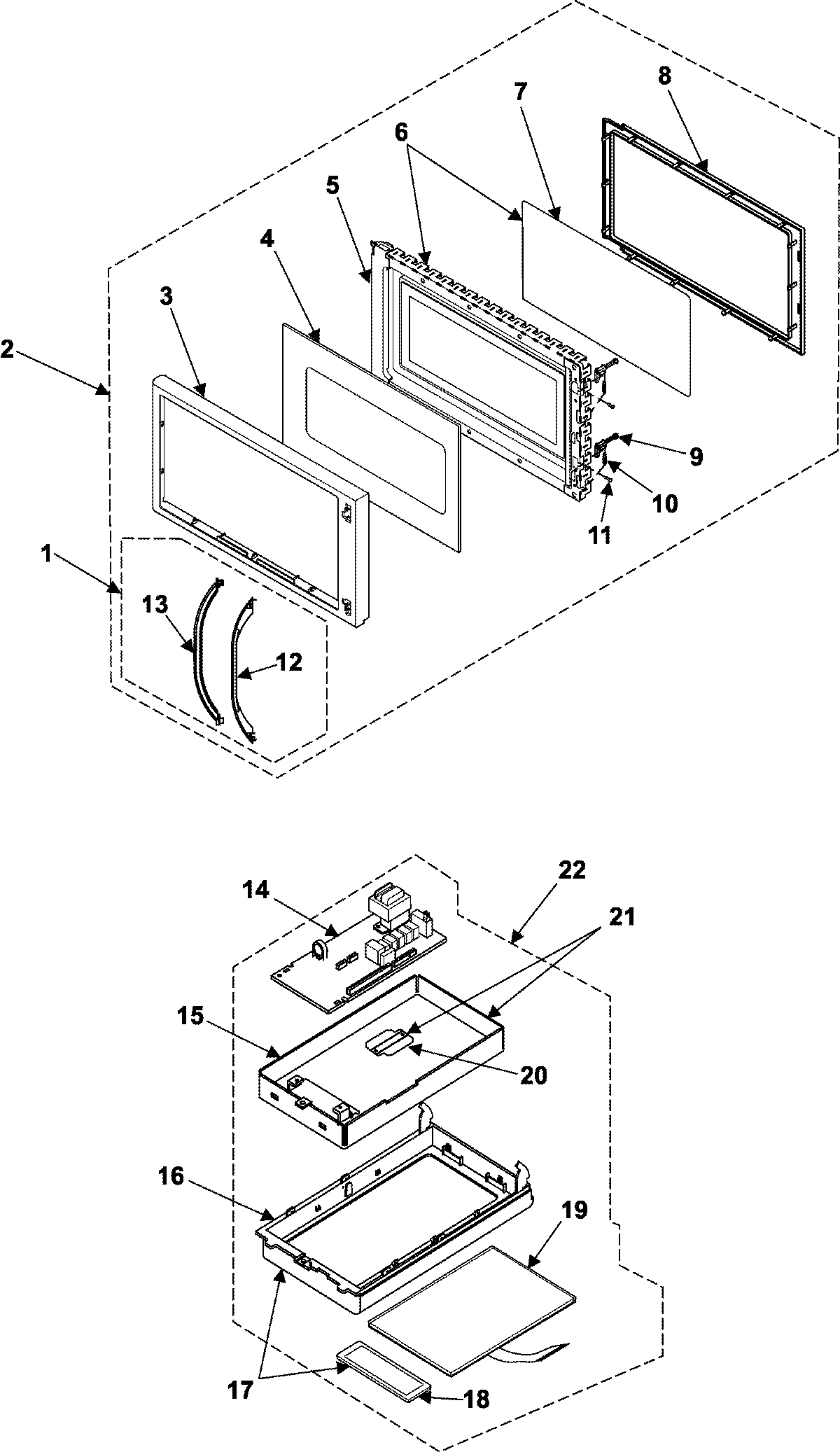

SMH7150CE 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

Position	Product
1	MAY DE97-00250C
2	MAY DE94-00595J
3	MAY DE64-00328F
4	MAY DE64-00444B
5	MAY DE94-00586B
7	MAY DE01-00091A
8	MAY DE64-00337A
9	MAY DE64-00157A
10	MAY DE61-00151A
11	MAY DE60-60008A
12	MAY DE64-00415C
13	MAY DE63-00071C
14	MAY RAS-7SMT-07
15	MAY DE61-00266A
16	MAY DE64-00331C
17	SEE NOTE GROUND WIRE, GREEN
18	MAY DE64-00416A
19	MAY DE34-00168F
20	MAY DE61-50525A
21	MAY DE97-00255A
22	MAY DE94-00807K
