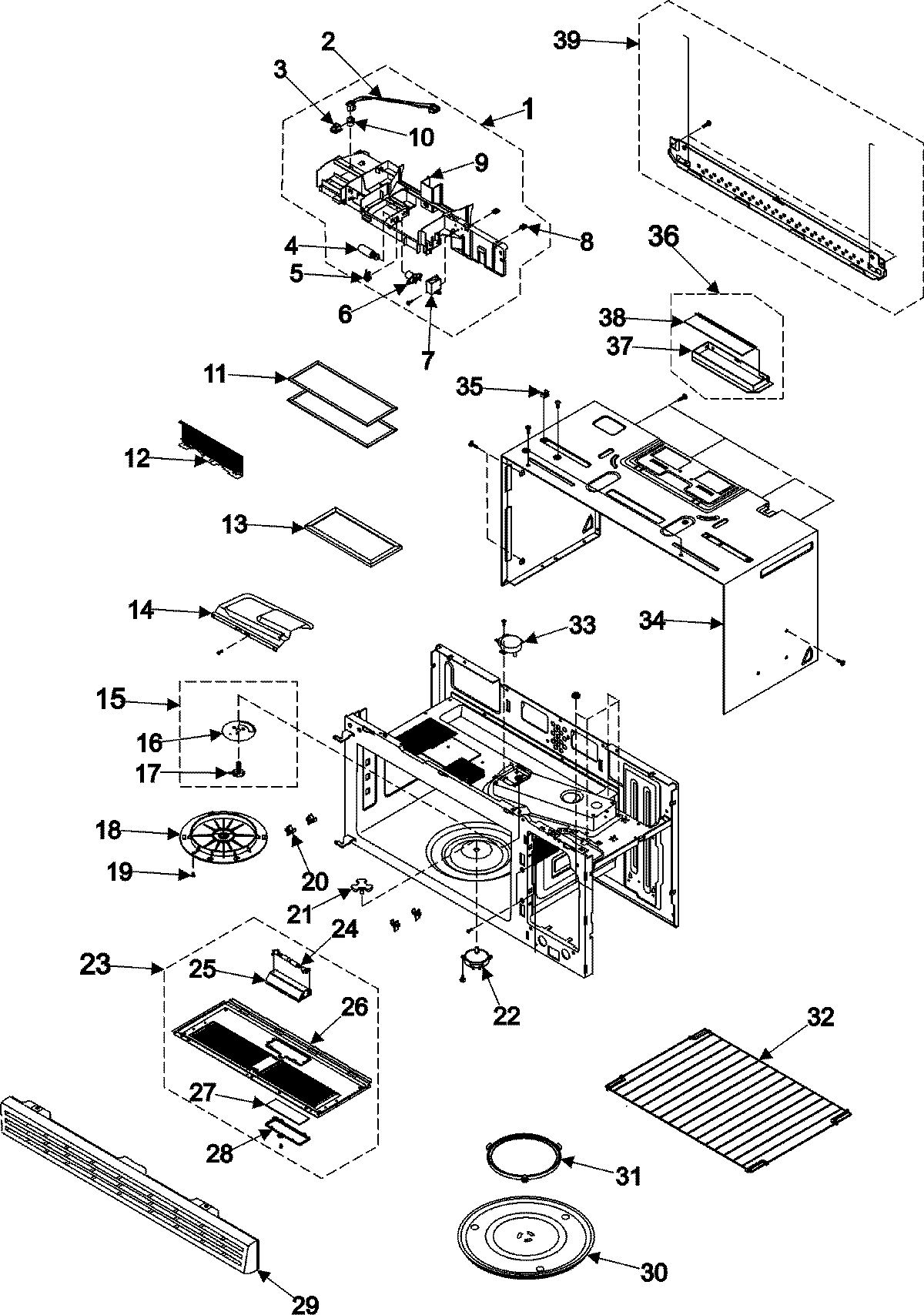

SMH7174BC 01 – BODY/CAVITY/ELEMENTS

Products

Position	Product
1	MAY DE97-00371A
2	WIRE HARNESS-S
3	MAY DE61-90111A
6	HOLDER-LAMP
7	MAY DE59-50002A
8	MAY DE60-30063A
9	MAY DE67-00168A
10	DE32-60013A Samsung Sensor Gas
11	DE63-00196A Samsung Aluminum Air Filter
12	COVER-FRONT
13	MAY DE63-30016D
14	MAY DE97-00411A
15	DE97-00367A Samsung Assembly Stirrer SMH7175 H/STI
16	MAY DE31-00023A
17	MAY DE61-00505A
18	COVER-STIRRER
19	MAY DE66-20095B
20	DE61-00375A Samsung Holder Rack
21	DE67-00179A Samsung Coupler
22	MOTOR, DRIVE
23	DE97-00360A Samsung Assembly Base Bottom
24	LAMP-INCANDESCENT
25	MAY DE61-00407A
26	MAY DE61-00406B
27	DE64-00911A Samsung Glass Cooktop Lamp
28	DE63-00137B Samsung Cover-Glass Cooktop
29	MAY DE64-00755A
30	DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
31	DE97-00368A Samsung Microwave Guide Roller Assembly
32	DE97-00369A Samsung Wire Assembly Rack
34	MAY DE64-00754A
35	DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
36	MAY DE92-90242A
37	MAY DE72-40022A
38	COVER-DAMPER
39	MAY DE97-00363A
