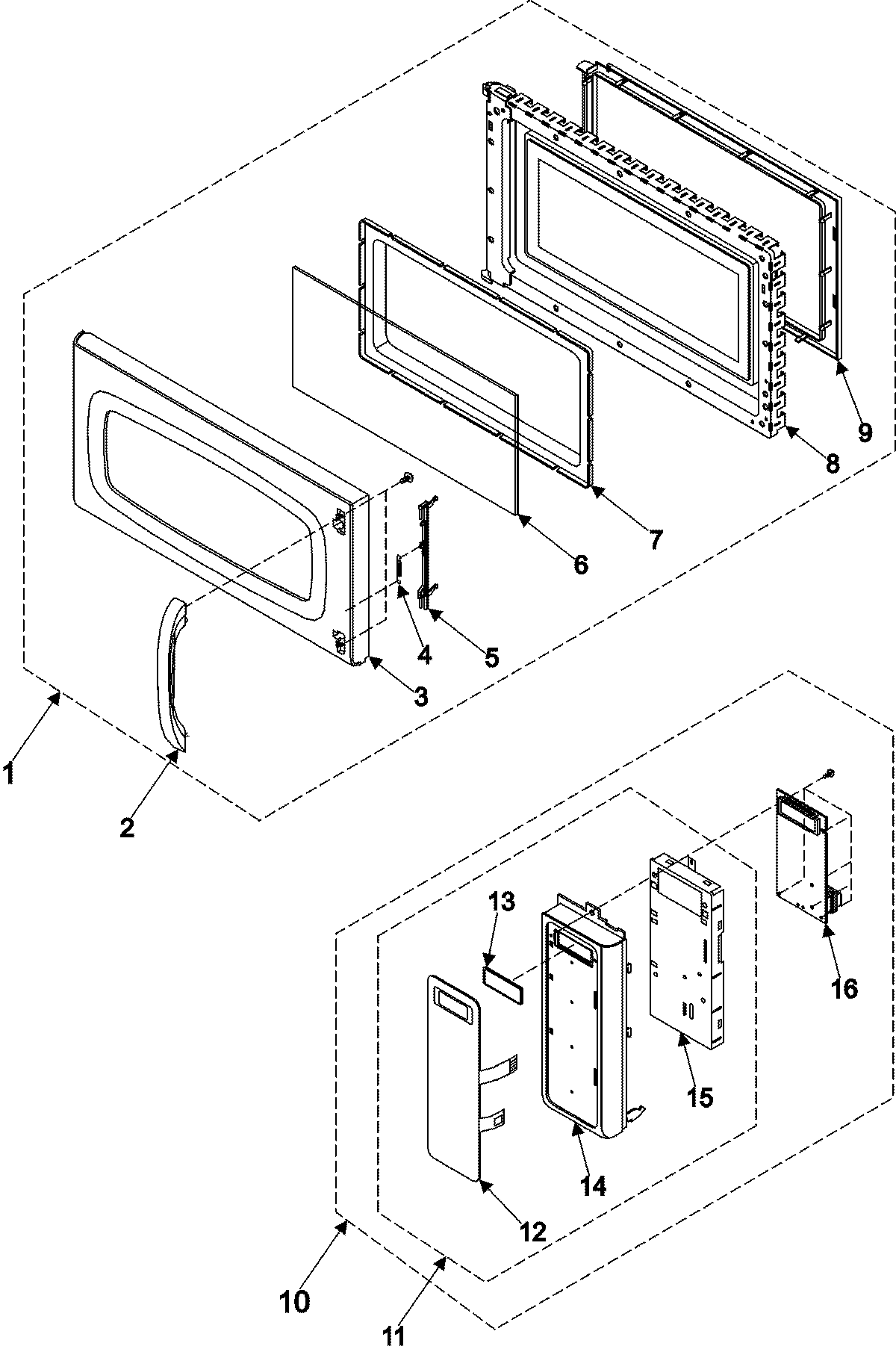

SMH7174CC 02 – CONTROL PANEL/DOOR ASSEMBLY

SMH7174CC 02 – CONTROL PANEL/DOOR ASSEMBLY

Written by

in

SMH7174CC 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

PositionProduct
1MAY DE94-00881C
2MAY DE97-00358C
3MAY DE64-00757C
4MAY 6107-001175
5MAY DE64-00760A
6MAY DE64-00910A
7MAY DE64-00864A
8MAY DE94-00882B
9MAY DE64-00759A
10MAY DE94-00933J
11MAY DE94-00939F
12MAY DE34-00178K
13MAY DE64-00766B
14MAY DE64-00763C
15MAY DE97-00359A
16MAY YRASSOTR200
