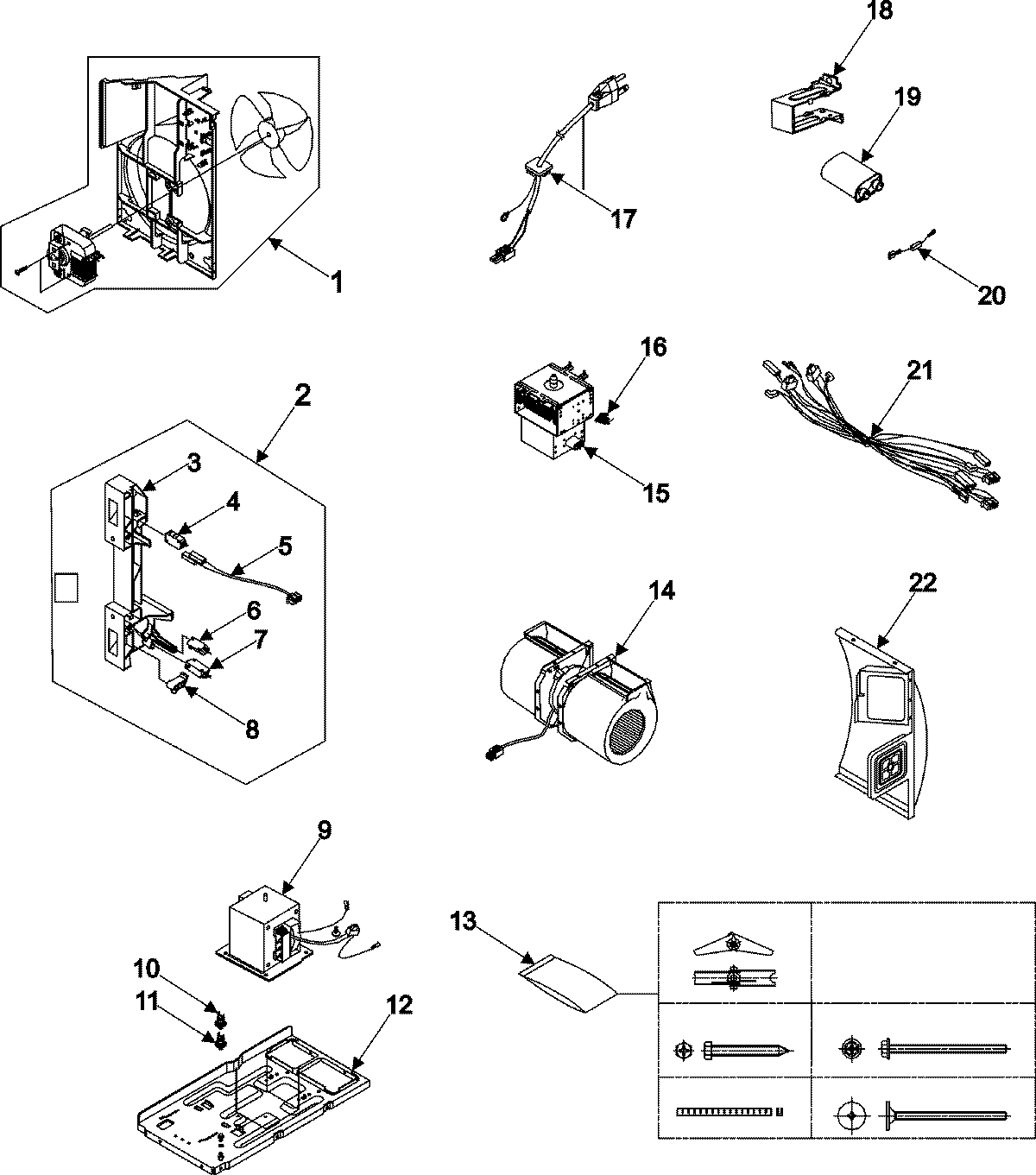

SMH7174CC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Products

Position	Product
1	MAY DE97-00365A
2	DE96-00082A Samsung Assembly Body Latch
3	LATCH-BODY
5	MAY DE39-40674A
6	MAY 3405-001033
7	WP3405-001034 Whirlpool Microwave Switch
8	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
9	MAY DE26-00082A
10	DE47-20034A Samsung Microwave Thermostat
12	BASE-PLATE
13	DE92-90505E Samsung Hardware Assembly
15	MAY W10126787
16	DE47-20007A Samsung Microwave Oven Thermostat
18	MAY DE61-00115A
19	2501-001011 Samsung Microwave High Voltage Capacitor
20	MAY DE91-70063A
21	MAY DE39-00024B
22	BRACKET-DUCT REAR
23	DE63-00141A Samsung Cover Motor
24	DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
25	BLADE, FAN
