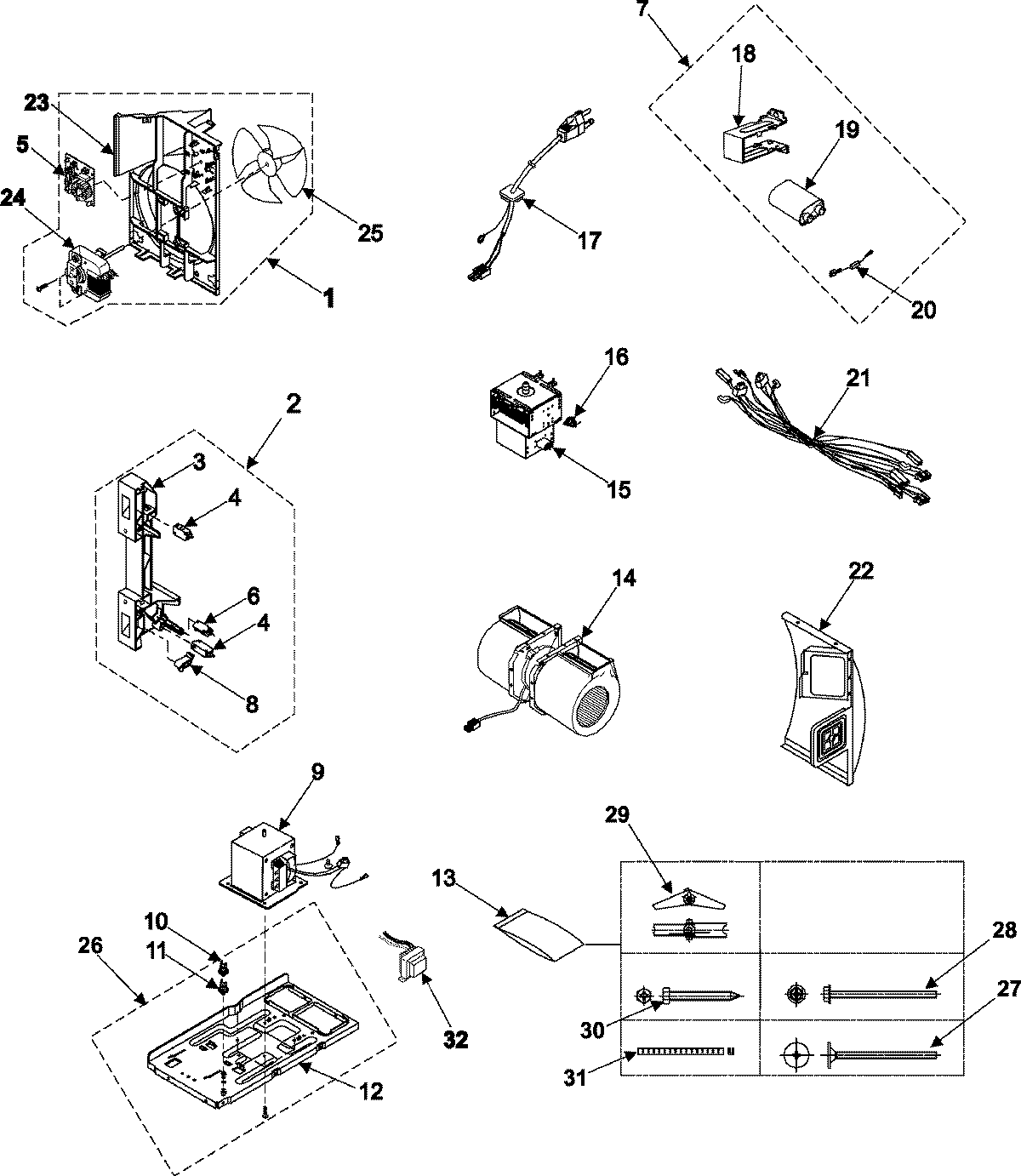

SMH7174WE 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Products

Position	Product
1	DE97-00365C Samsung Assembly Cover Motor SMH7175/S
2	DE96-00082C Samsung Assembly Body Latch SMH7175WE/
3	LATCH-BODY
4	WP3405-001034 Whirlpool Microwave Switch
5	ASSY NOISE FILTER,SN-UF12B,250
6	MAY 3405-001033
7	MAY DE96-00269A
8	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
9	DE26-00082D Samsung Trasnformer H.V SHV-U1870B 120V
10	DE47-20034A Samsung Microwave Thermostat
12	BASE-PLATE
13	DE92-90505E Samsung Hardware Assembly
14	DE31-00029B Samsung Motor Ventilation SMV-460U
15	ASSY-MAGNETRON
16	DE47-20007A Samsung Microwave Oven Thermostat
17	DE96-00218A Samsung Assembly Power Cord
18	MAY DE61-00115A
19	2501-001011 Samsung Microwave High Voltage Capacitor
20	DE91-70063D Samsung Oven Microwave High Voltage Diode
21	MAY DE96-00491A
22	BRACKET-DUCT REAR
23	DE63-00141A Samsung Cover Motor
24	DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
25	BLADE, FAN
26	MAY DE96-00268A
27	MAY DE60-20066A
28	MAY DE60-20022A
29	MAY DE60-30063A
30	DE60-10111A Samsung Screw LAG
31	MAY DE63-10011A
32	MAY DE26-20144A
