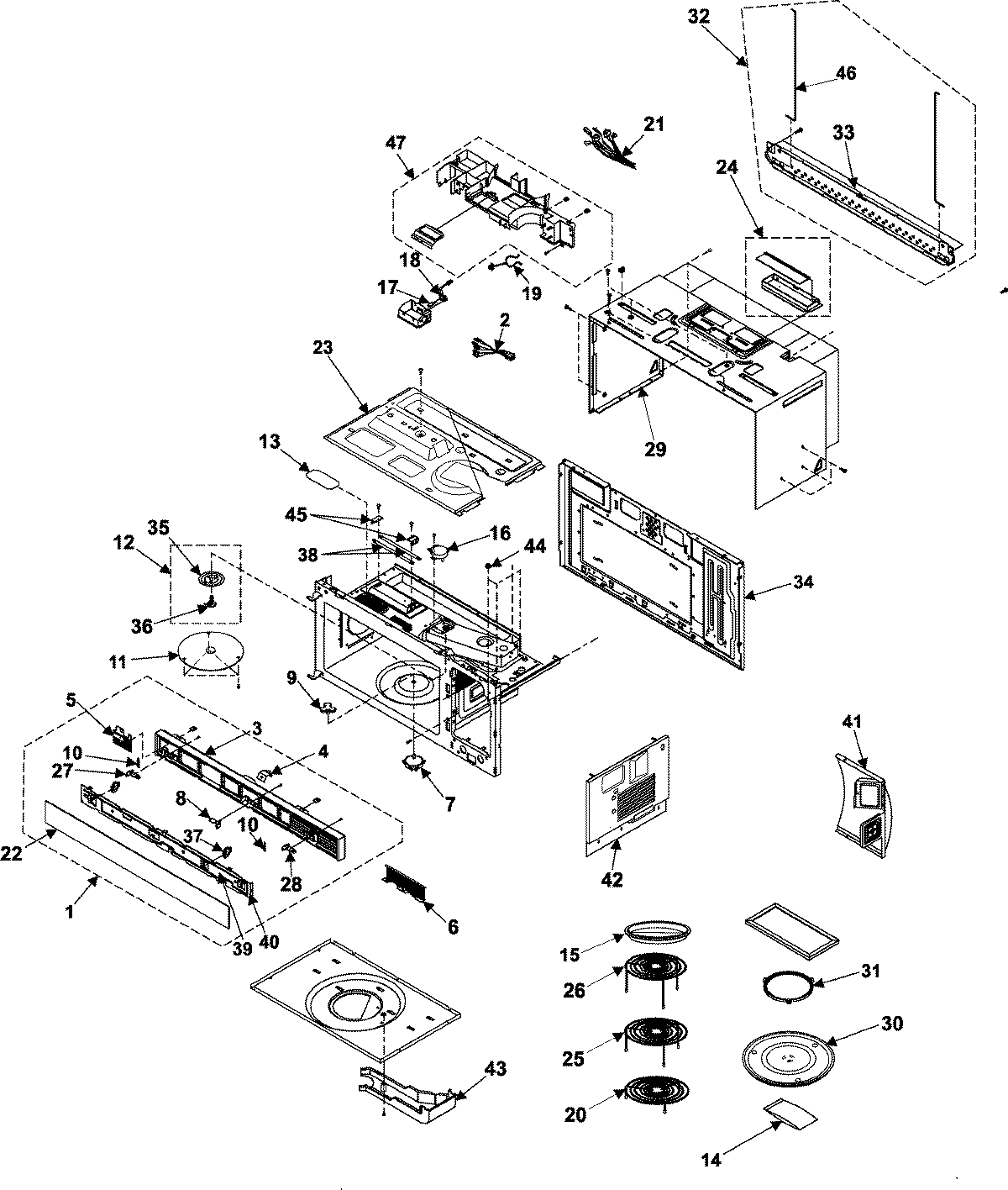

SMV9165BC 01 – BODY/CAVITY/ELEMENTS

Products

Position	Product
1	MAY DE97-00415A
2	HARNESS, WIRE
3	MAY DE64-00859A
4	EARTH-GRILLE
5	MAY DE61-00626A
6	MAY DE63-00207A
7	MOTOR, DRIVE
8	HINGE-GRILLE(M)
9	MAY DE67-00181A
10	MAY DE61-00120A
11	MAY DE97-00427A
12	MAY DE97-00419A
13	MAY DE64-01088A
14	DE92-90505E Samsung Hardware Assembly
15	DE63-00234A Samsung Tray Convection
17	4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
18	MAY DE47-00032A
19	MAY 6502-000127
20	MAY DE97-00456C
21	MAY DE39-00360A
22	MAY DE63-00221A
23	MAY DE97-00426A
24	MAY DE92-90242B
25	MAY DE97-00456B
26	MAY DE97-00456A
27	HINGE-GRILLE(L)
28	HINGE-GRILLE(R)
29	MAY DE64-01144A
30	MAY DE74-20016A
31	MAY DE97-00368B
32	MAY DE97-00363A
33	DE70-00561A Samsung Microwave Mounting Plate Bracket
34	MAY DE97-00433A
35	MAY DE66-00127A
36	HOLDER-STIRRED
37	MAY DE61-00150A
38	MAY DE47-70030E
39	MAY DE61-00574A
40	MAY DE97-00418A
41	MAY DE61-00489A
42	MAY DE97-00432A
43	MAY DE61-00502A
44	MAY DE60-30015A
45	MAY DE61-00481A
46	MAY DE66-00121A
47	MAY DE97-00424A
