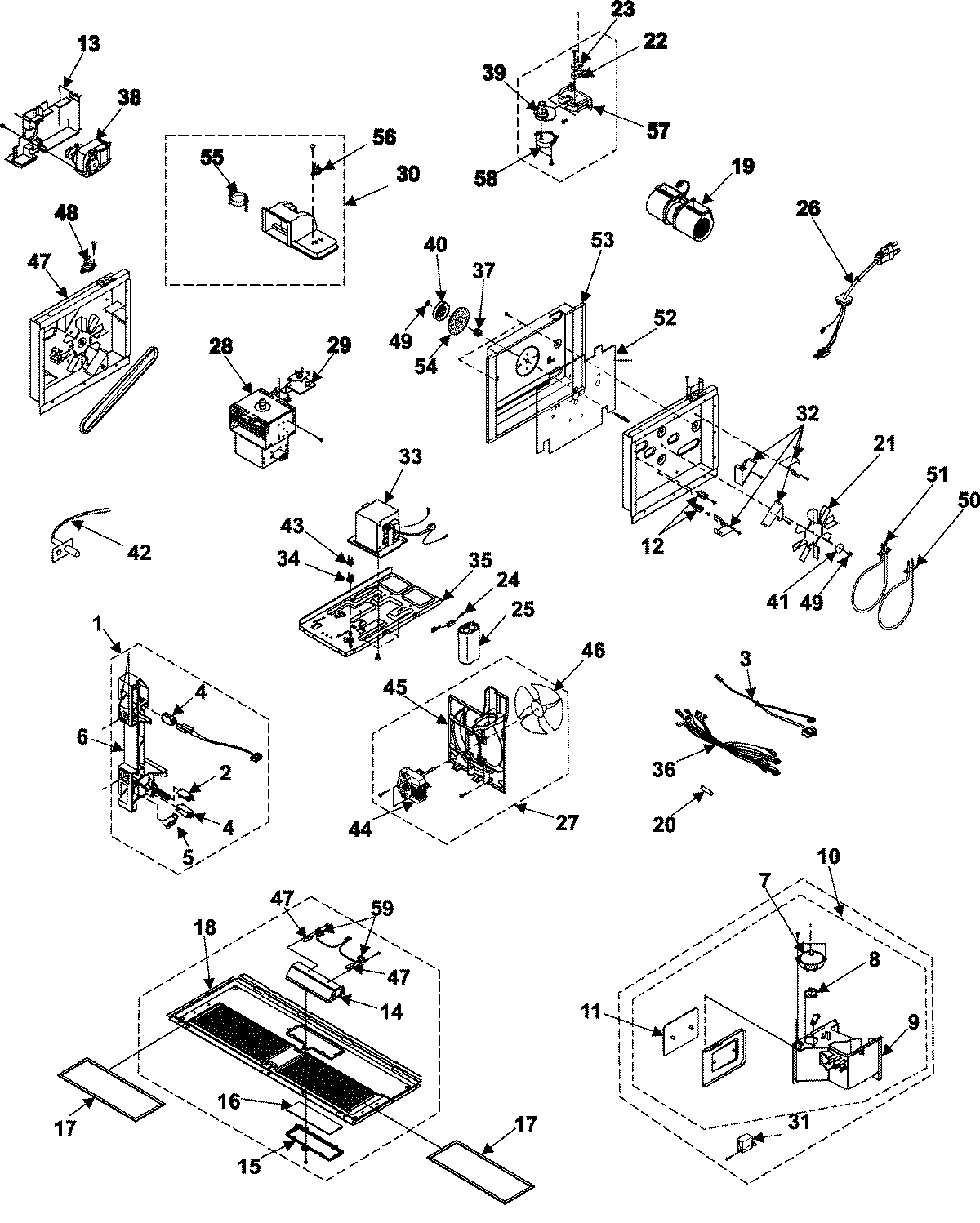

SMV9165SC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Products

Position	Product
1	MAY DE96-00308A
3	MAY DE39-00358A
4	WP3405-001034 Whirlpool Microwave Switch
5	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
6	LATCH-BODY
7	MAY DE31-10095B
8	MAY DE66-00136A
9	MAY DE61-00498A
11	MAY DE66-00154A
12	MAY DE61-00602A
13	MAY DE97-00413A
14	BRACKET-BOTTOM LAMP
15	DE63-00137B Samsung Cover-Glass Cooktop
16	DE64-00911A Samsung Glass Cooktop Lamp
17	DE63-00196A Samsung Aluminum Air Filter
18	MAY DE61-00406B
19	MAY DE31-00028C
20	3601-001198 Samsung Fuse Cartridge
21	MAY DE67-00175A
22	MAY 3405-001051
23	MAY 3405-001050
24	DE91-70063D Samsung Oven Microwave High Voltage Diode
25	2501-001011 Samsung Microwave High Voltage Capacitor
26	DE96-00218A Samsung Assembly Power Cord
27	MAY DE96-00311A
28	ASSY-MAGNETRON
30	MAY DE97-00424A
31	MAY DE59-50002A
32	MAY DE61-00550A
33	MAY DE26-10136A
35	MAY DE61-00490A
36	MAY DE39-00359A
37	MAY DE66-10017A
38	MAY DE31-00032A
39	LOUVER, CAM
40	MAY DE66-00155A
41	MAY DE60-40019A
42	DE32-10013A Samsung Microwave Temperature Sensor
43	DE47-20034A Samsung Microwave Thermostat
44	DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
45	MAY DE63-00186A
46	BLADE, FAN
47	MAY DE97-00428A
48	MAY DE47-20029A
49	MAY 6021-001149
50	MAY DE47-00030A
51	MAY DE47-00031A
52	MAY DE62-00032A
53	MAY DE63-00176A
54	MAY DE61-00619A
55	MAY DE61-00599A
56	DE47-20007A Samsung Microwave Oven Thermostat
57	BRACKET, CAM
58	DRIVE, MOTOR
59	SOCKET-LAMP HALOGEN
