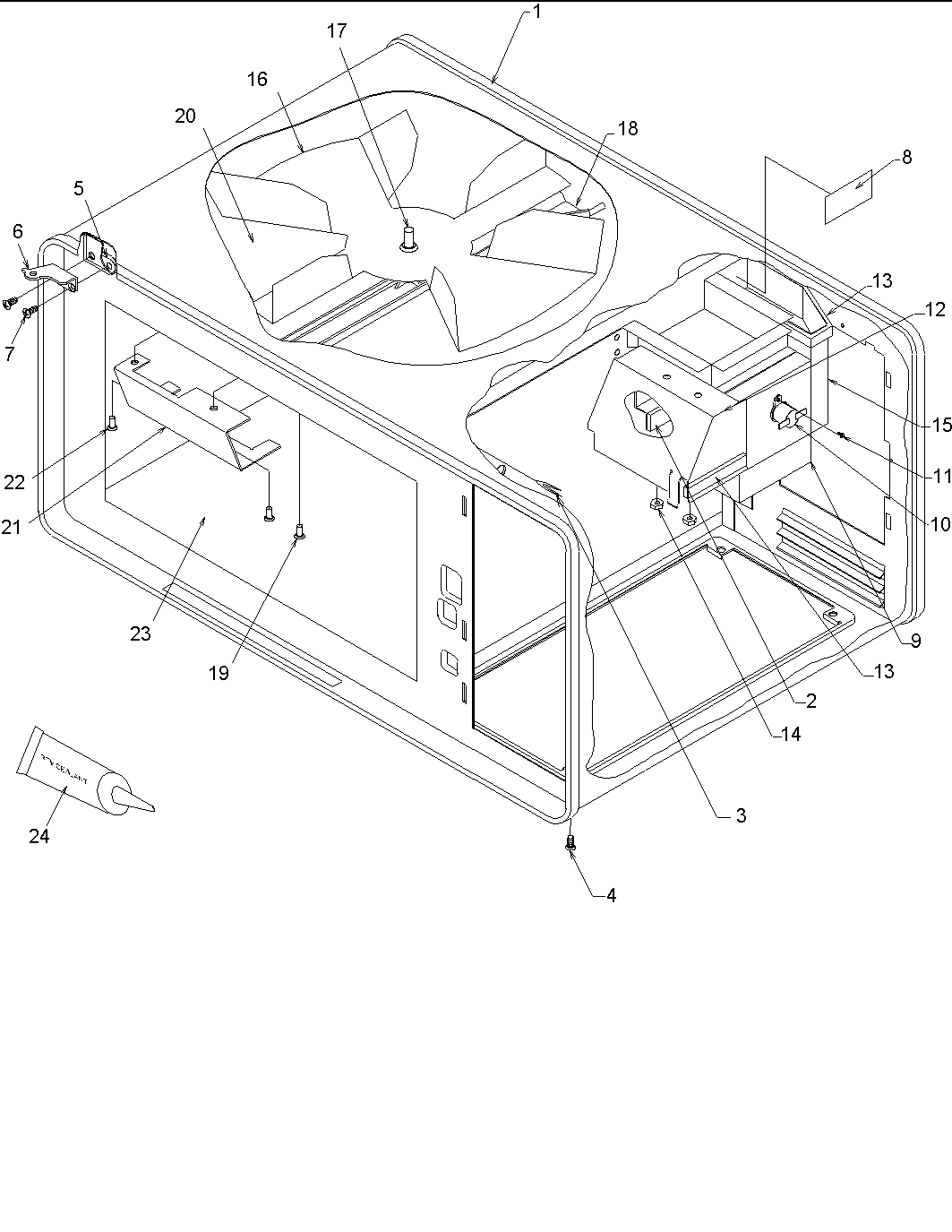

SNAC700.C 02 – Cavity Assembly

Products

Position	Product
1	ASSY, CAVITY M77D180
2	MAY 24642P01
3	MAY B5662304
4	RIVET-PLASTCx
5	MAY 45010P01
6	BRKT TOP
7	No.6 FLAT HD MACHINE SCREW
8	MAY 10744601
9	MAY 10794403
10	PROTECTOR,THERMAL 180C 25 AMP
11	MAY 35785P01
12	MAY 3000004301
13	MAY 10839705
14	MAY 5014-J
15	REAR AIR DUCT 1400UTC
16	KIT,STIRRER BLADE
17	MAY M2D678
18	MAY M20D319
19	MAY 5524122001
20	STIRRER COVER M45D50
21	MAY 3010017601
22	.20 DIA PUSH RIVET POLYPROPYLE
23	MAY M50D45
24	MAY M0275598
