SNAC700.D 04 – Door Assembly – Aparts

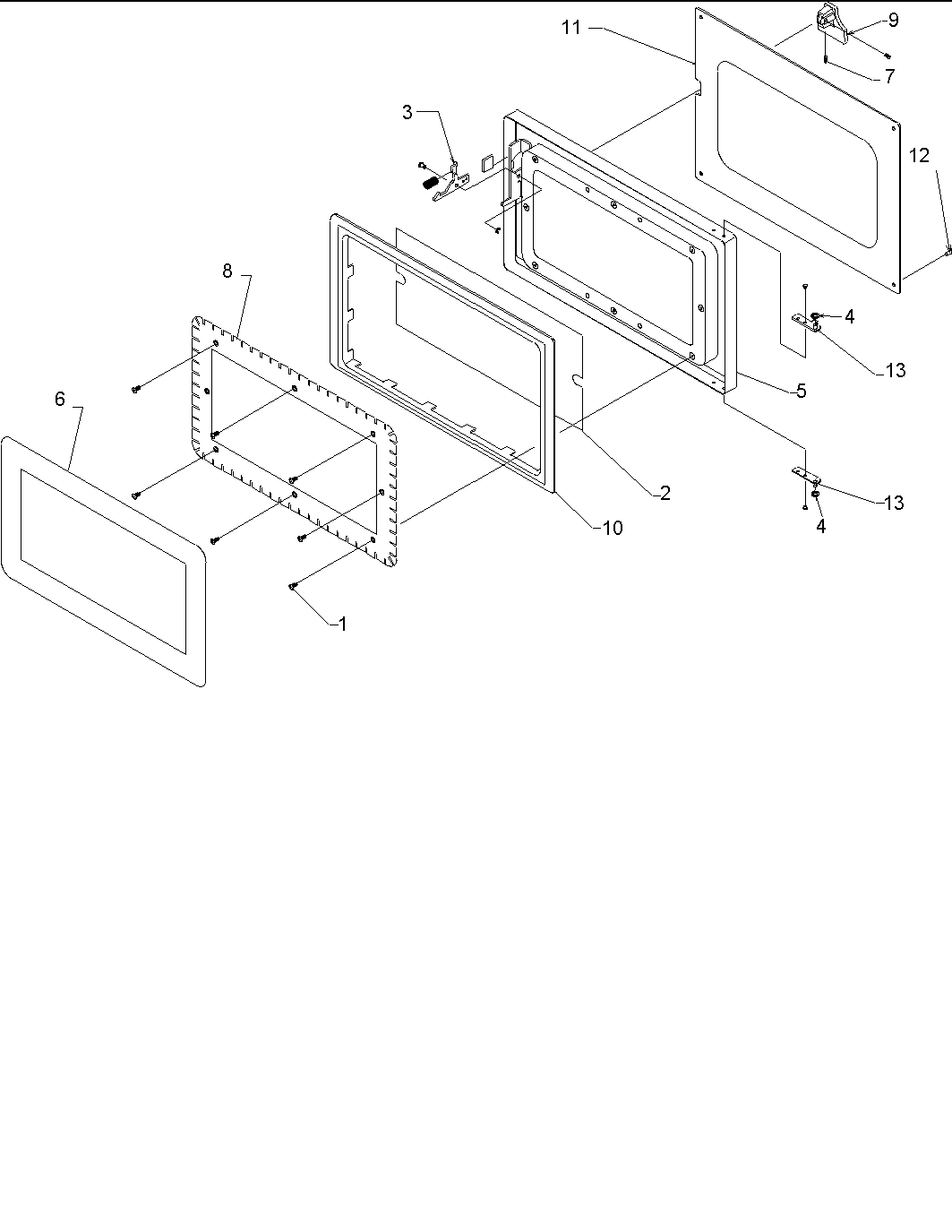

SNAC700.D 04 – Door Assembly

Products

Position	Product
1	WP8281236 Whirlpool Screw
2	KIT, MIDDLE WINDOW
3	DOOR HOOK KIT
4	MAY 40370P01
5	DOOR BACK
6	MAY 10785101
7	SET SCREW No.10 X .25
8	DOOR PLATE,INNER
9	MAY 12066802
10	FILLER, DOOR
11	WINDOW MENUMSTR ASY UTC
12	.187 DIA PUSH RIVET BLK
13	HINGE ASSY KIT
