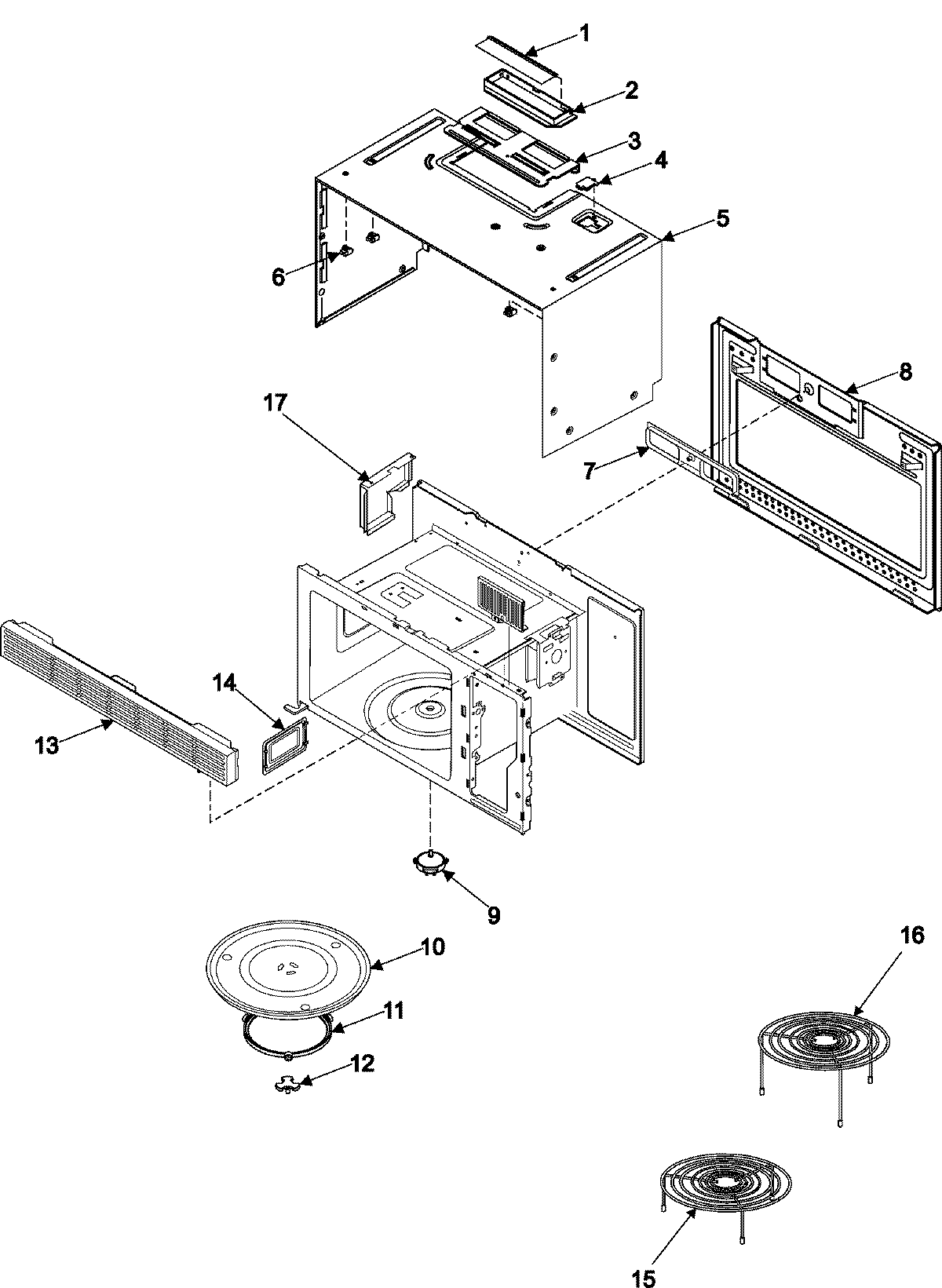

SRH1230ZG 01 – BODY/CAVITY/ELEMENTS

SRH1230ZG 01 – BODY/CAVITY/ELEMENTS

Written by

in

SRH1230ZG 01 – BODY/CAVITY/ELEMENTS

Products

PositionProduct
1COVER-DAMPER
2MAY DE72-40022A
3MAY DE61-50545A
4MAY DE61-50507A
5MAY DE70-00130D
6DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
7MAY DE71-00109A
8MAY DE61-00080B
9MOTOR, DRIVE
10DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
11MAY DE92-90189S
12MAY DE67-60081A
13MAY DE74-00017B
14MAY DE71-60164F
15DE97-00136B Samsung Wire Assembly Rack
16DE97-00136E Samsung Wire Assembly Rack
17MAY DE92-90440A
