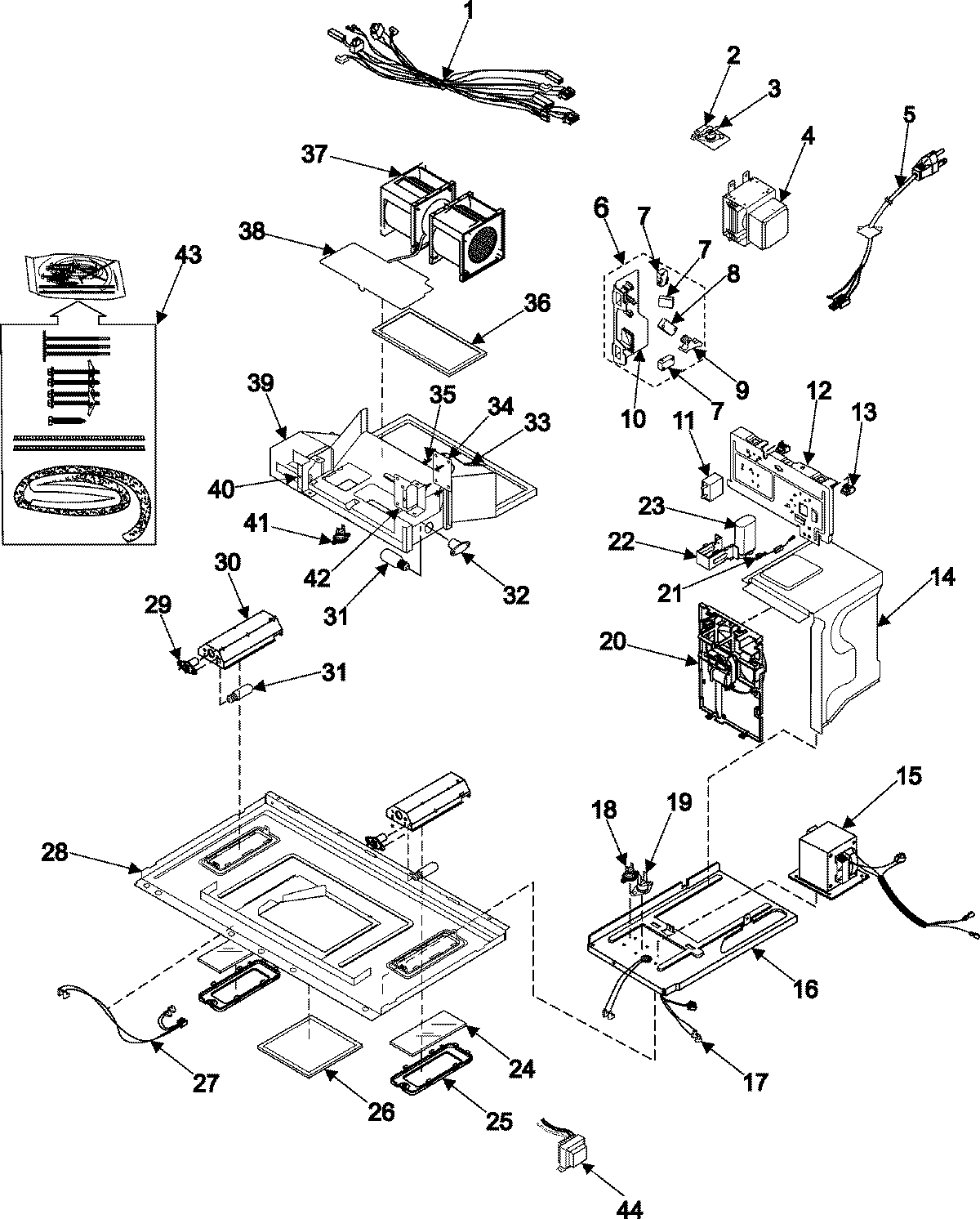

SRH1230ZG 03 – INTERNAL CONTROL/LATCH ASY/BASE

Products

Position	Product
1	MAY DE39-00178C
2	MAY DE61-50279A
3	DE47-20007A Samsung Microwave Oven Thermostat
4	MAY YOM75P31ESS
6	MAY DE96-00077A
7	WP3405-001034 Whirlpool Microwave Switch
8	MAY 3405-001032
9	MAY DE66-00081A
10	MAY DE66-00082A
11	MAY DE59-50002A
13	DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
14	MAY DE72-00142A
15	MAY DE26-00038A
16	MAY DE80-00016A
18	MAY DE47-20020A
20	MAY DE31-00001F
21	DE91-70063D Samsung Oven Microwave High Voltage Diode
22	MAY DE61-50120A
23	2501-001011 Samsung Microwave High Voltage Capacitor
24	DE67-40063A Samsung Microwave Oven Cooktop Lamp Light Bulb Glass Cover
25	MAY DE71-60170B
26	DE63-30011A Samsung Range Microwave Oven ALUMINUM Air Filter
27	MAY DE39-00180B
28	MAY DE80-00015B
30	MAY DE61-50079A
31	LAMP-INCANDESCENT
32	HOLDER-LAMP
33	MAY DE39-30074B
34	MAY DE91-40058A
35	SUPPORTER-PCB
36	DE74-00020A Samsung Charcoal Filter:211.5909
37	MAY DE31-10178B
38	MAY DE61-50463A
39	MAY DE72-00093A
40	MAY DE61-00100A
42	MAY DE97-00171A
43	MAY DE92-90505B
44	MAY DE26-20144A
