SS22AEXHW01 07 – FREEZER DOOR

SS22AEXHW01 07 – FREEZER DOOR

Written by

in

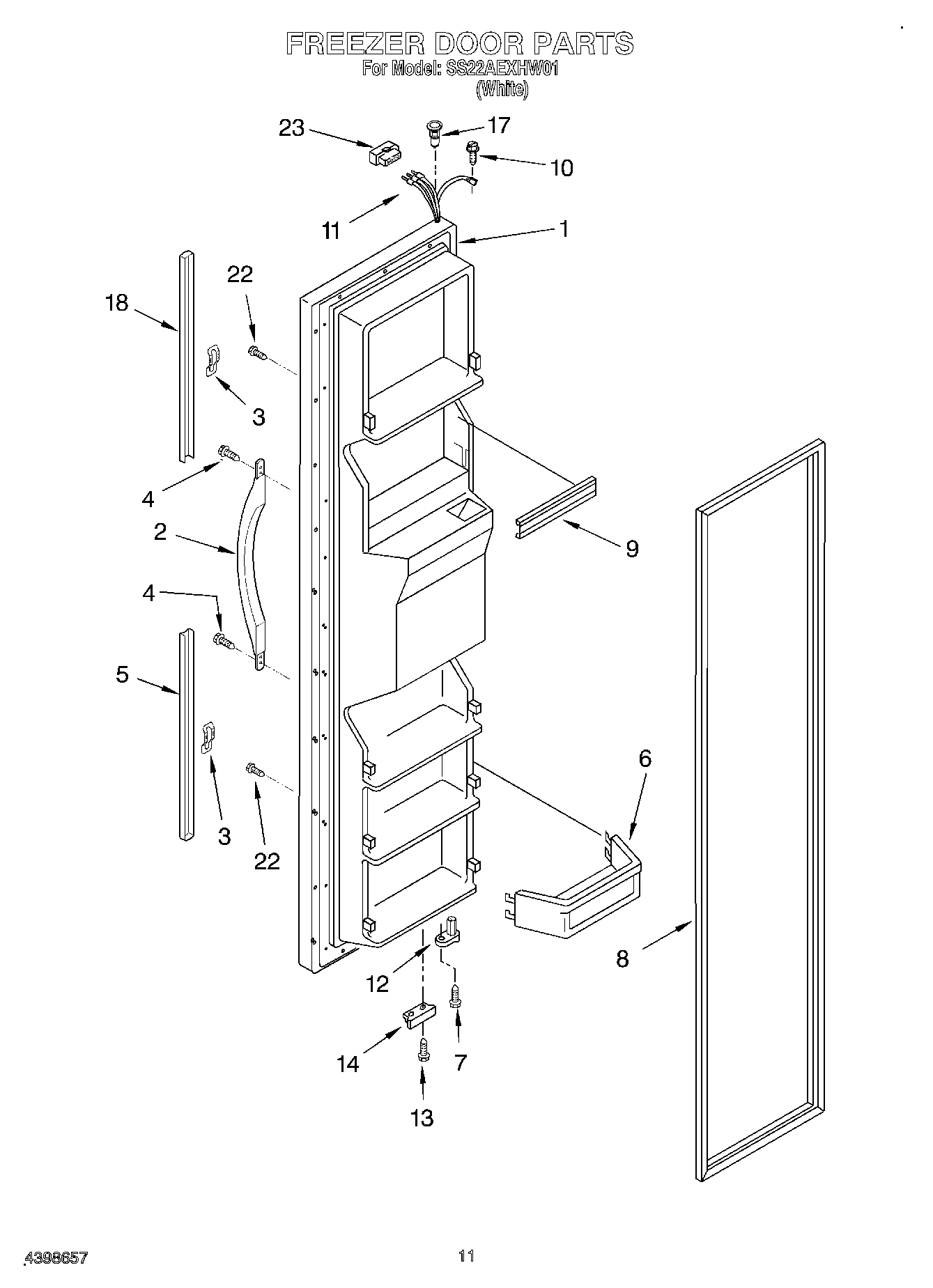

SS22AEXHW01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2Handle, Center (White)
3WP2195327 Whirlpool Refrigerator Clip
4WP489491 Whirlpool Refrigerator Screw
5Extension, Bottom (White)
6Trivet, Door Shelf (4)
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
17WP2182181 Whirlpool Refrigerator Thimble
18Extension, Top (White)
22WP3400852 Whirlpool Refrigerator Screw
23WP2154473 Whirlpool Refrigerator Connector
