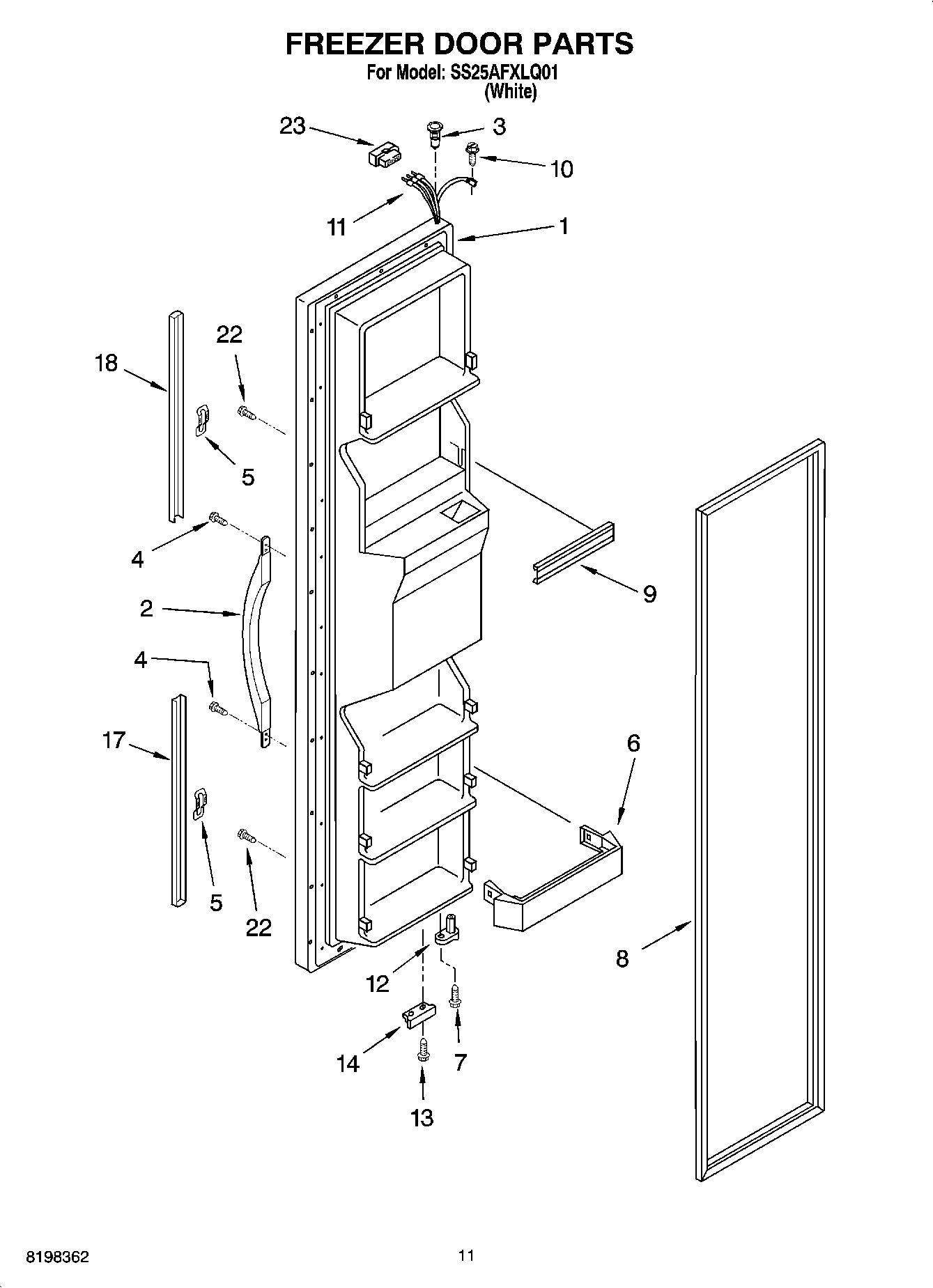

SS25AFXLQ01 07 – FREEZER DOOR PARTS

SS25AFXLQ01 07 – FREEZER DOOR PARTS

Written by

in

SS25AFXLQ01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2Handle, Center (White)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
6Trivet, Shelf (4)
7WP3400012 Whirlpool Refrigerator Screw
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
17Extension, Bottom (White)
18WP2194973W Whirlpool Door Trim
22WP3400852 Whirlpool Refrigerator Screw
23WP2154473 Whirlpool Refrigerator Connector
