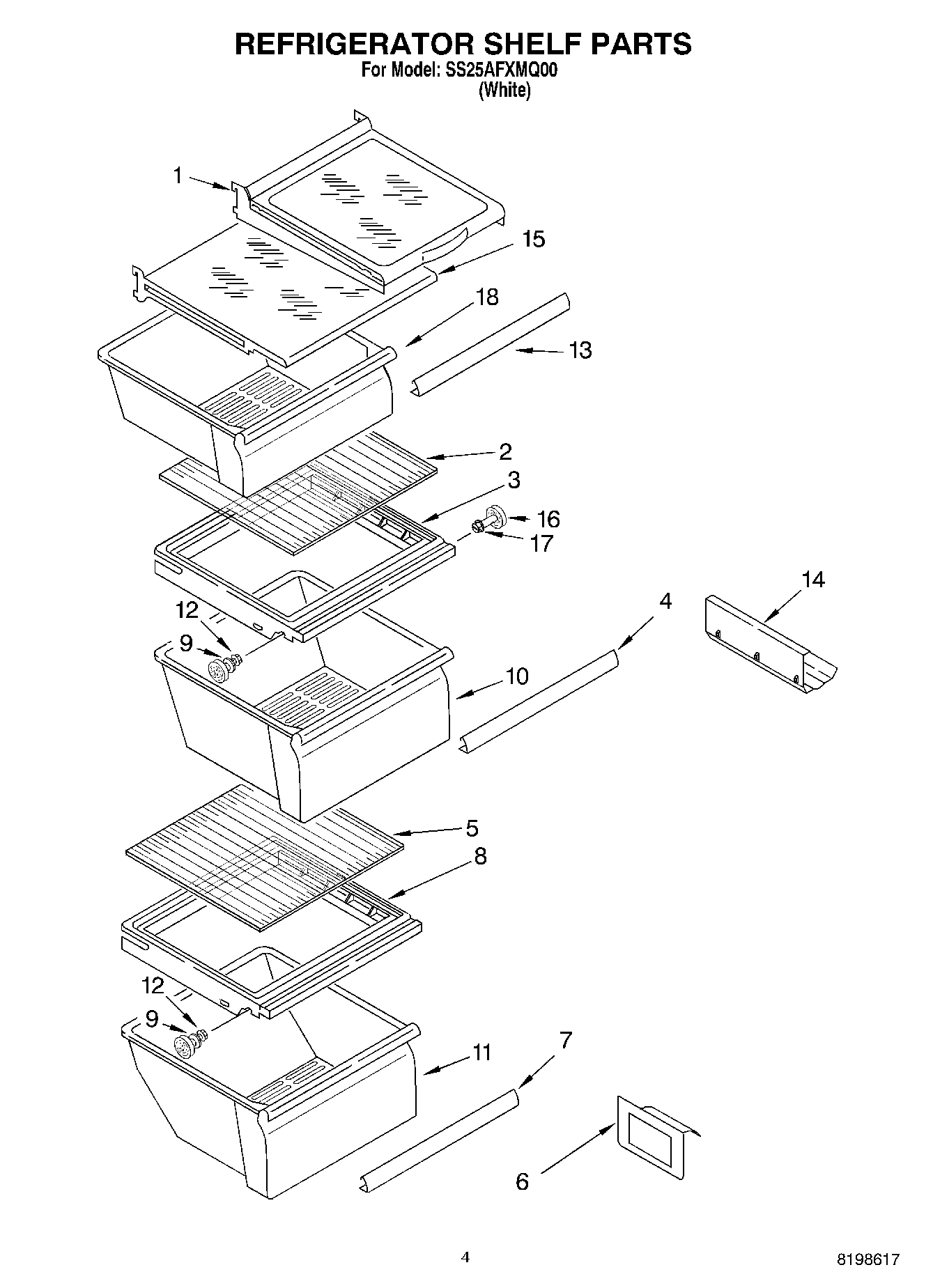

SS25AFXMQ00 03 – REFRIGERATOR SHELF PARTS

SS25AFXMQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

SS25AFXMQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Cantilever (2)
2W10864399 Whirlpool Glass Shelf
3W10508993 Whirlpool Refrigerator Cover Pan
4Trim, Pan
62179350 Whirlpool Refrigerator Deflector
7WP2179234 Whirlpool Refrigerator Pan Trim
8Cover, Meat Pan
9W11223328 Whirlpool Refrigerator Shelf Stud
10WP2188661 Whirlpool Crisper Pan
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
12WP3-24004-109 Whirlpool Refrigerator Screw
13WP2179243 Whirlpool Refrigerator Pan Trim
14W10777924 Whirlpool Refrigerator Wine Rack
15Shelf, Snack Bin
16WP2196483 Whirlpool Refrigerator Shelf Stud
17WP3400806 Whirlpool Screw
18W11497323 Whirlpool Snack Pan
