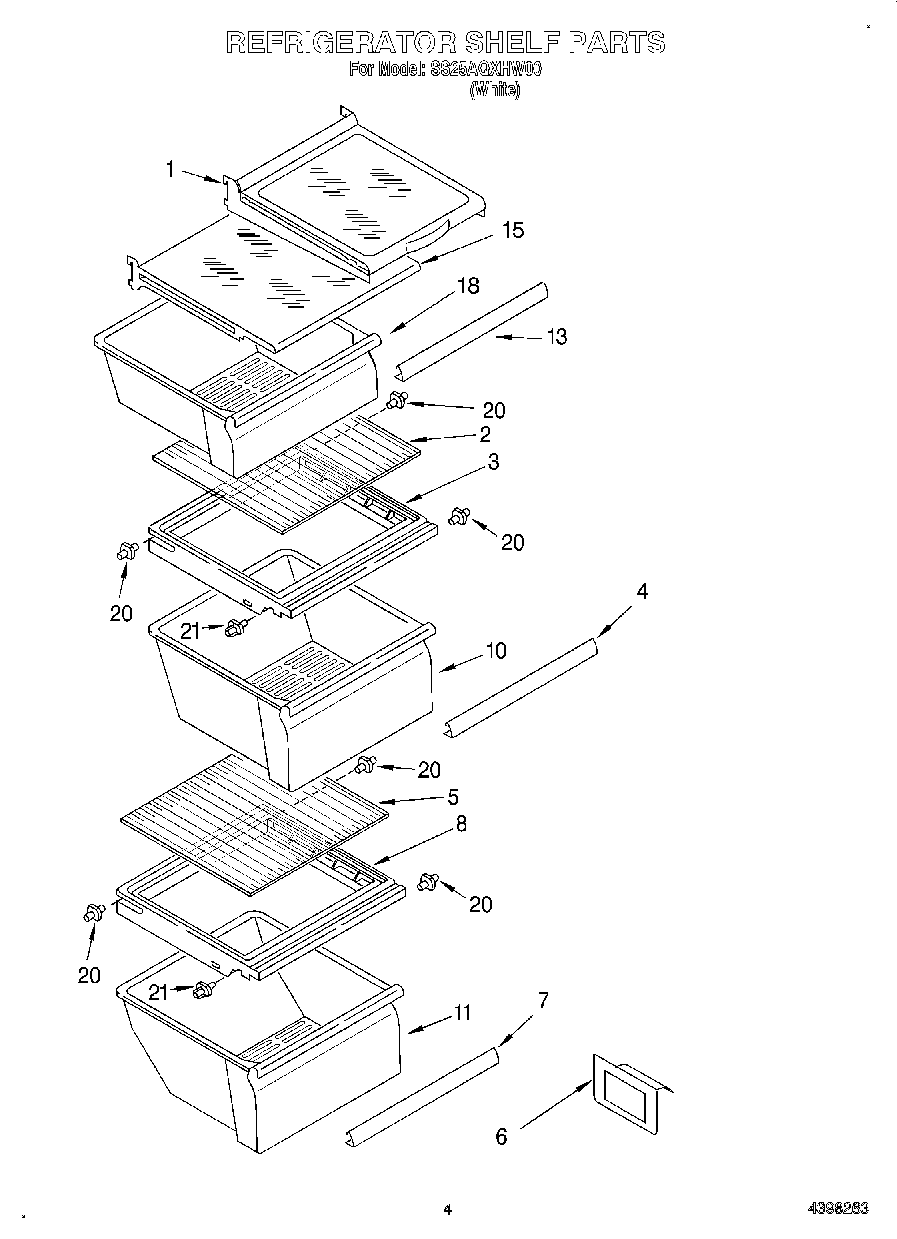

SS25AQXHW00 03 – REFRIGERATOR SHELF

SS25AQXHW00 03 – REFRIGERATOR SHELF

Written by

in

SS25AQXHW00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2W10864399 Whirlpool Glass Shelf
3W10508993 Whirlpool Refrigerator Cover Pan
4Trim, Pan
62179350 Whirlpool Refrigerator Deflector
7WP2179234 Whirlpool Refrigerator Pan Trim
10PAN-CRISPR
11Meat Pan
13WP2179243 Whirlpool Refrigerator Pan Trim
15Shelf, Cantilever (Snack Bin)
18W11497323 Whirlpool Snack Pan
204388538 Whirlpool Refrigerator Stud Shelf Kit (White)
214388539 Whirlpool Refrigerator Shelf Stud
