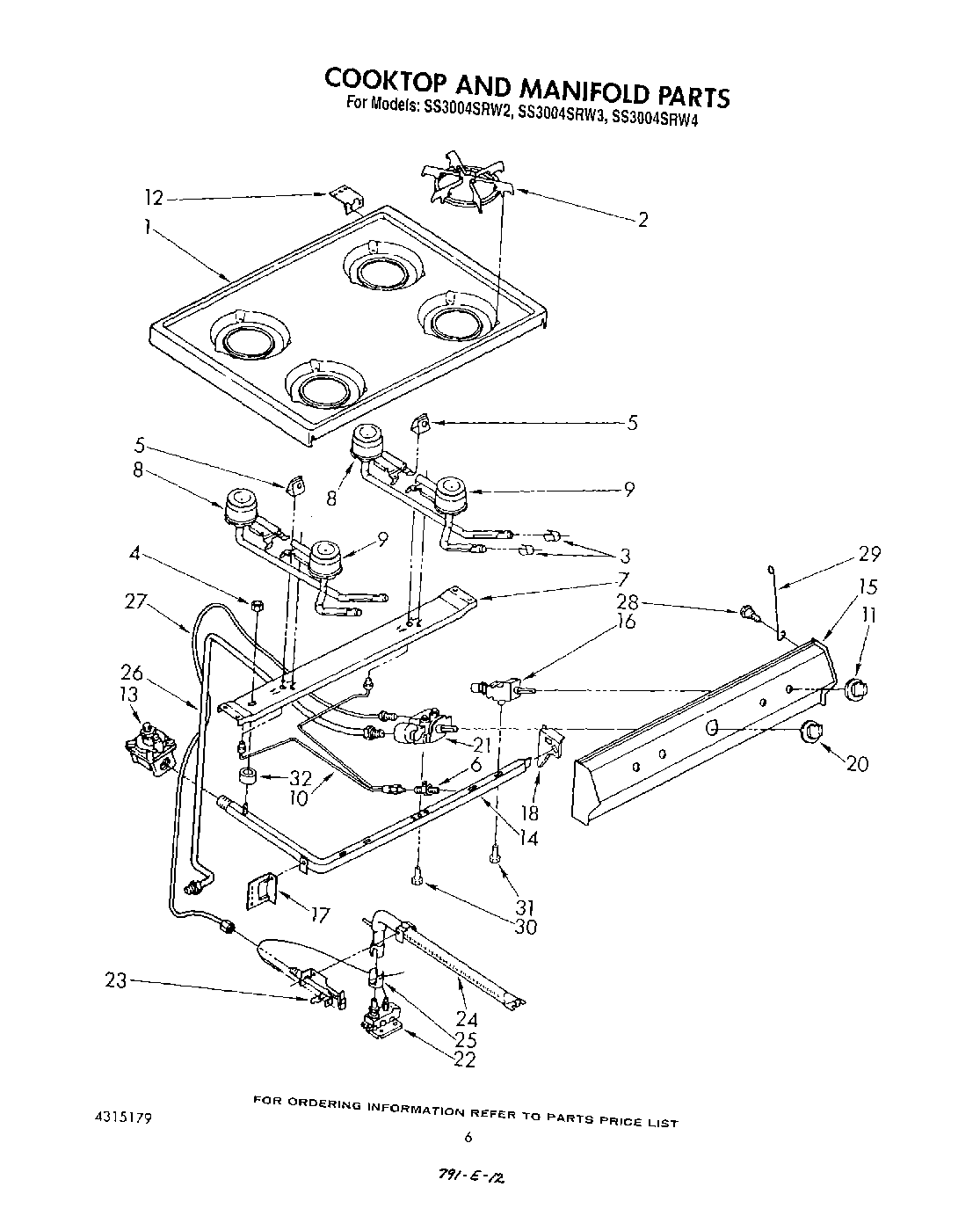

SS3004SRN2 04 – COOKTOP AND MANIFOLD , LITERATURE Aadmin2025-04-26T11:26:05+00:00SS3004SRN2 04 – COOKTOP AND MANIFOLD , LITERATURE A
Products
| Position | Product |
|---|
| Guide, Cooking |
| WPL LIT786735 |
| Guide, Use & Care |
| List, Repair Parts |
| 1 | Cooktop (Almond) |
| 1 | Cooktop (White) |
| 2 | Grate (4) |
| 3 | Shutter, Air (4) |
| 4 | Nut, Hex |
| 5 | Cover, Pilot (2) |
| 6 | Filter, Pilot |
| 7 | Support, Burner |
| 8 | Burner, Rear (2) |
| 9 | Burner, Front (2) |
| 9 | Screw, 10-12 X 3/8 (2) |
| 10 | Tubing, Pilot (Incl. No. 6) |
| 11 | WP4179282 Whirlpool Knob |
| 12 | Hinge, Maintop (2) |
| 12 | Speed Clip (4) |
| 12 | SCREW |
| 13 | Regulator, Pressure |
| 14 | Manifold |
| 15 | Panel, Manifold |
| 16 | Valve, 90~ (4) (Includes Ill. No. 33) |
| 17 | Support, Manifold (L.H.) |
| 18 | WP308685 Whirlpool Microwave Screw |
| 18 | Support, Manifold (R.H.) |
| 20 | WPY07506601 Whirlpool Thermal Knob |
| 21 | Thermostat (Includes Ill. No. 32) |
| 22 | WP3387230 Whirlpool Screw |
| 22 | Valve, Safety |
| 23 | Screw, 10-24 X 1/4 (1) |
| 23 | Pilot |
| 24 | Burner, Oven |
| 25 | Shutter, Burner |
| 26 | Tubing 3/8`` (Thermostat To Safety Valve) |
| 27 | Tubing 3/16`` (Thermostat To Pilot) |
| 28 | Screw |
| 29 | Rod, Support |
| 30 | Bolt, Thermostat Mounting (2) |
| 31 | Bolt, Valve Mounting |
| 32 | WPW10208653 Whirlpool Insulation |
| 32 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 32 | Spacer, Manifold |
