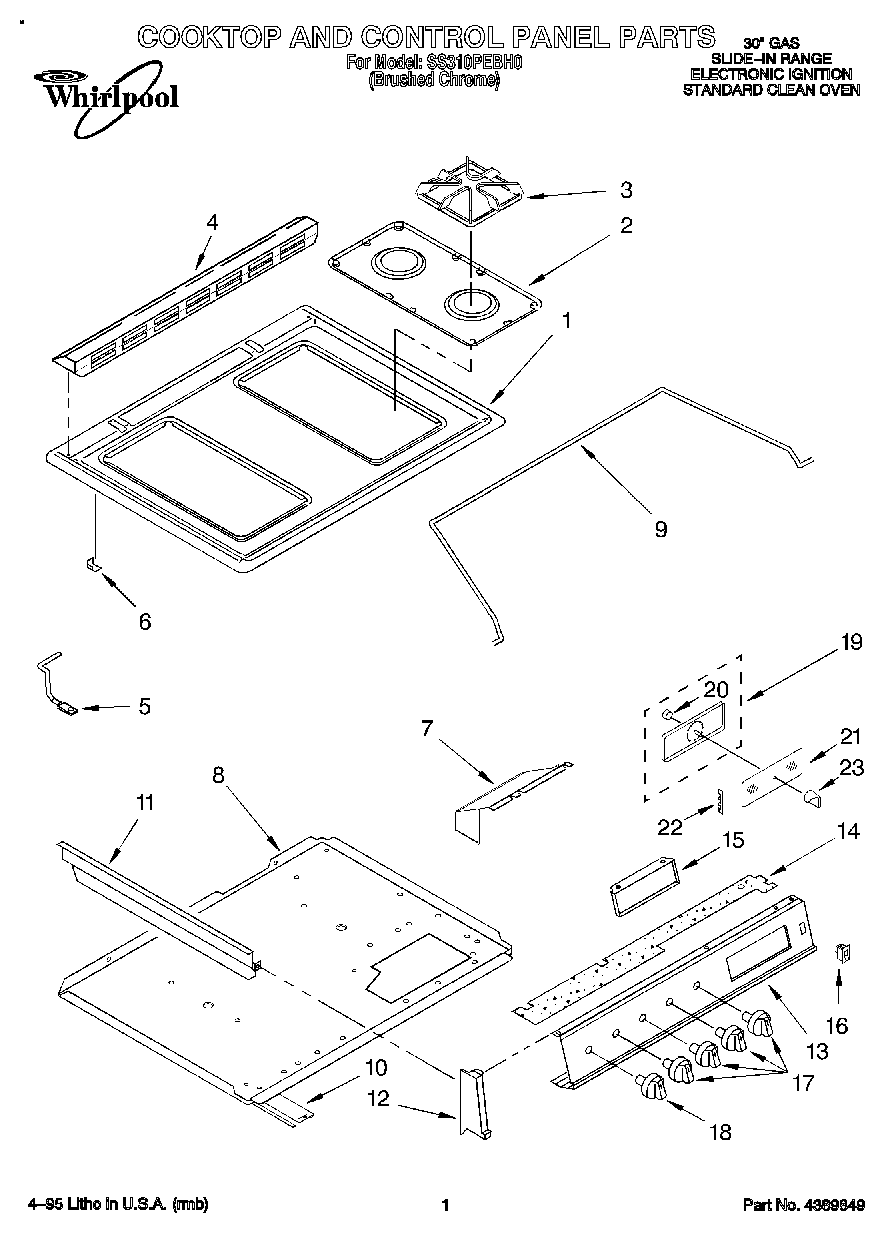

SS310PEBH0 01 – COOKTOP AND CONTROL PANELadmin2025-04-26T11:25:28+00:00SS310PEBH0 01 – COOKTOP AND CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Cooktop (Black) |
| 2 | Drip Pan (2) |
| 3 | Grate (4) (Black) |
| 4 | Screw (2) |
| 4 | Cover, Vent |
| 5 | Hinge, Cooktop (Right) |
| 5 | Hinge, Cooktop (Left) |
| 6 | Rivet, Pop (2) |
| 6 | Support, Module |
| 7 | Cover, Wire |
| 8 | Bottom, Burner Box |
| 9 | Support, Cooktop |
| 10 | Support, Burner Box |
| 11 | Extension, Side (2) |
| 12 | Endcap (Black Left Hand) |
| 12 | Endcap (Black Right Hand) |
| 13 | Panel, Manifold |
| 14 | Insulation, Panel |
| 15 | WP308685 Whirlpool Microwave Screw |
| 15 | Bracket, Clock |
| 16 | WP4314961 Whirlpool Lite Switch |
| 17 | Knob, Thermostat |
| 18 | Knob, Burner (4) |
| 19 | Clock/Timer (Includes No. 20) |
| 20 | Motor, Clock |
| 21 | Glass, Clock |
| 22 | Clip, Clock (2) |
| 23 | Knob, Clock |
