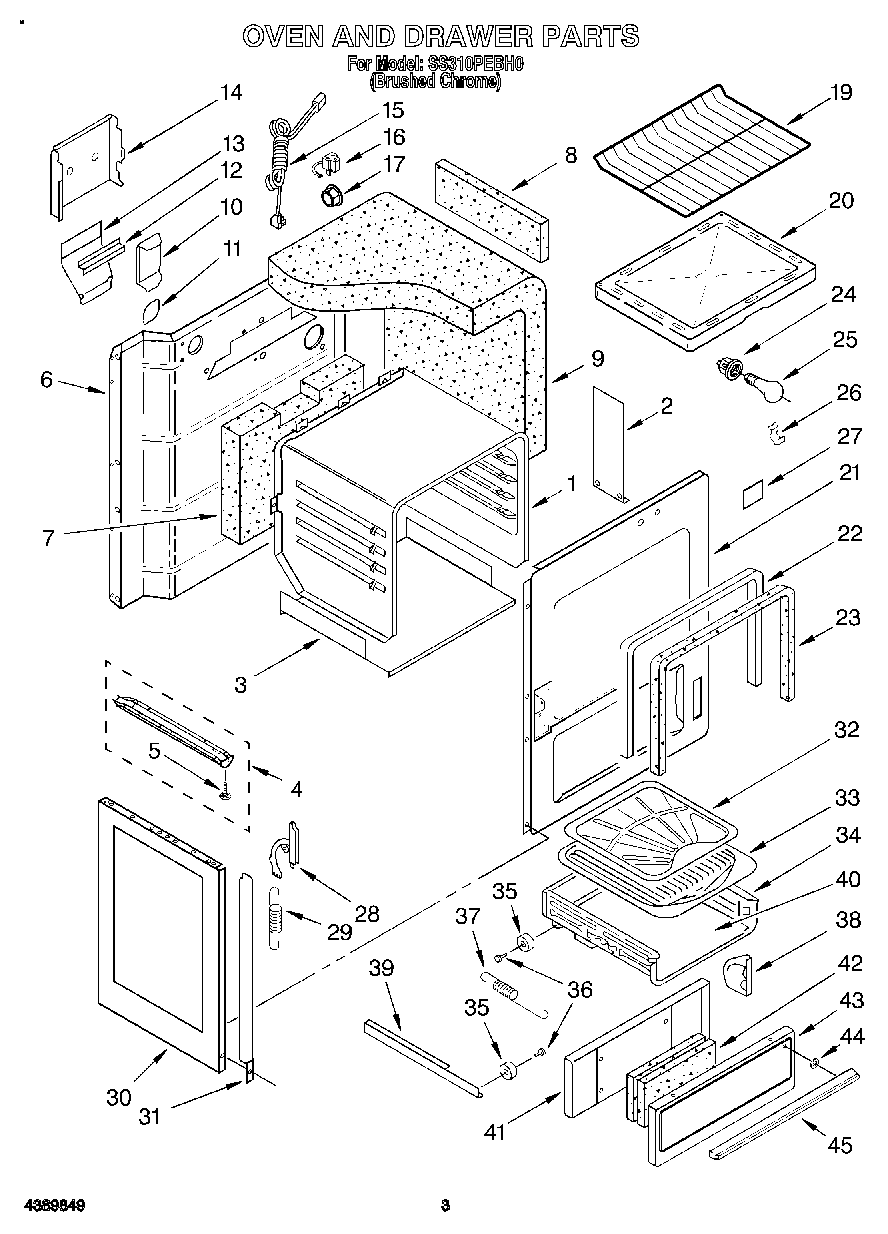

SS310PEBH0 02 – OVEN AND DRAWER

Products

Position	Product
1	Liner, Oven
2	Retainer, Side (2)
3	Bottom, Main
4	Rail, Base (Includes No. 42)
5	Screw, Leveler (4)
6	Screw, Retainer
6	Back, Main
7	Insulation, Back
9	Insulation, Wrap
10	Shield, Wire
11	Plate, Light Cover
12	Support, Flue
13	Deflector, Flue
14	Shield, Deflector
15	Cord, Power
16	Plug, Receptacle
17	WPL 4389556
19	Rack, Oven (2)
20	Bottom, Oven
21	Frame, Front
22	Retainer, Door Seal
23	Gasket, Oven Door
24	W10856866 Whirlpool Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	Clip, Thermo Bulb
27	Plug, Button
28	Hinge, Oven Door (Right)
28	Screw, Hinge (6)
28	Hinge, Oven Door (Left)
29	Spring, Oven Door
30	Panel, Body Side
31	Trim, Side (Black Right Hand)
31	Trim, Side (Black Left Hand)
31	W11693756 Whirlpool Screw Assembly
32	Grid, Broiler
33	Pan, Broiler
34	Drawer, Broiler (Includes No. 35)
35	Roller, Drawer (4)
36	Rivet, Shoulder (4)
37	Spring, Broiler (2)
38	Hinge, Broiler (Right Hand)
38	Hinge, Broiler (Left Hand)
39	WP308685 Whirlpool Microwave Screw
39	Guide, Drawer (Left Hand)
39	Guide, Drawer (Right Hand)
40	Bottom, Drawer
41	Liner, Drawer Pnl
42	Insulation, Drawer
43	Panel, Drawer (Black)
43	Screw (3)
44	Spacer, Handle (2) (Black)
45	WPL 4389848
45	WPL 4389847
45	WPL 4389845
45	WPL 4389543
45	Handle, Drawer (Black)
45	WPL 4389471
