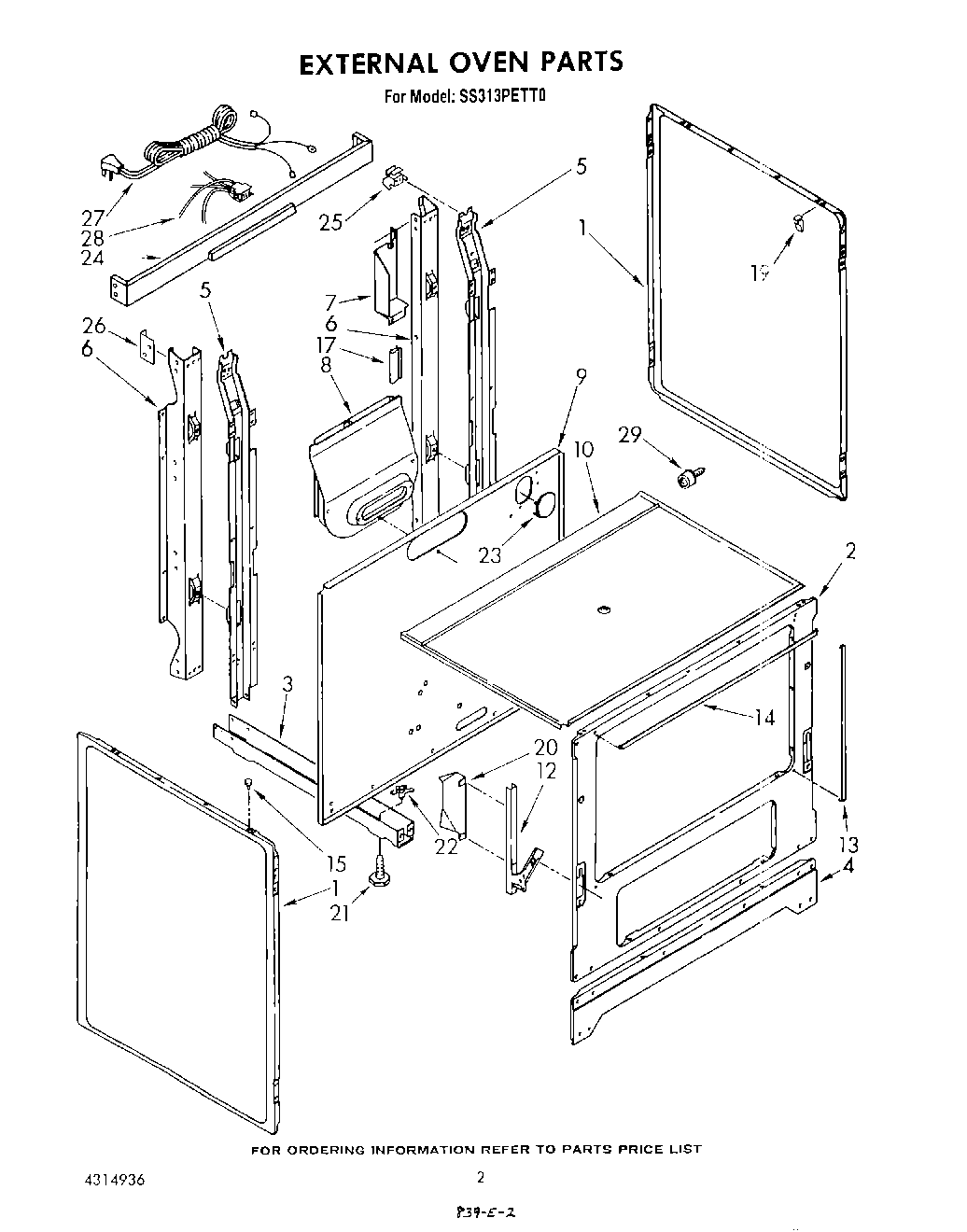

SS313PETT0 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instuctions, Installation
	Guide, Use & Care
	Guide, Cooking
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
7	Cover, Wire
7	Screw, 10-12 X 3/8 (2)
8	SCREW
8	Flue, Box
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Hinge. Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
17	Safe Edge
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Plug, Hole
24	Rail, Backguard
25	Bracket, Support (2)
26	Bracket, Mounting (R.H.)
26	Bracket, Mounting (L.H.)
27	WP9757891 Whirlpool Power Cord
28	Block, Disconnect
29	FOIL, ALUMINUM OVEN (18“ X 25 )
29	WPW10208653 Whirlpool Insulation
29	Locator Stud (2)
