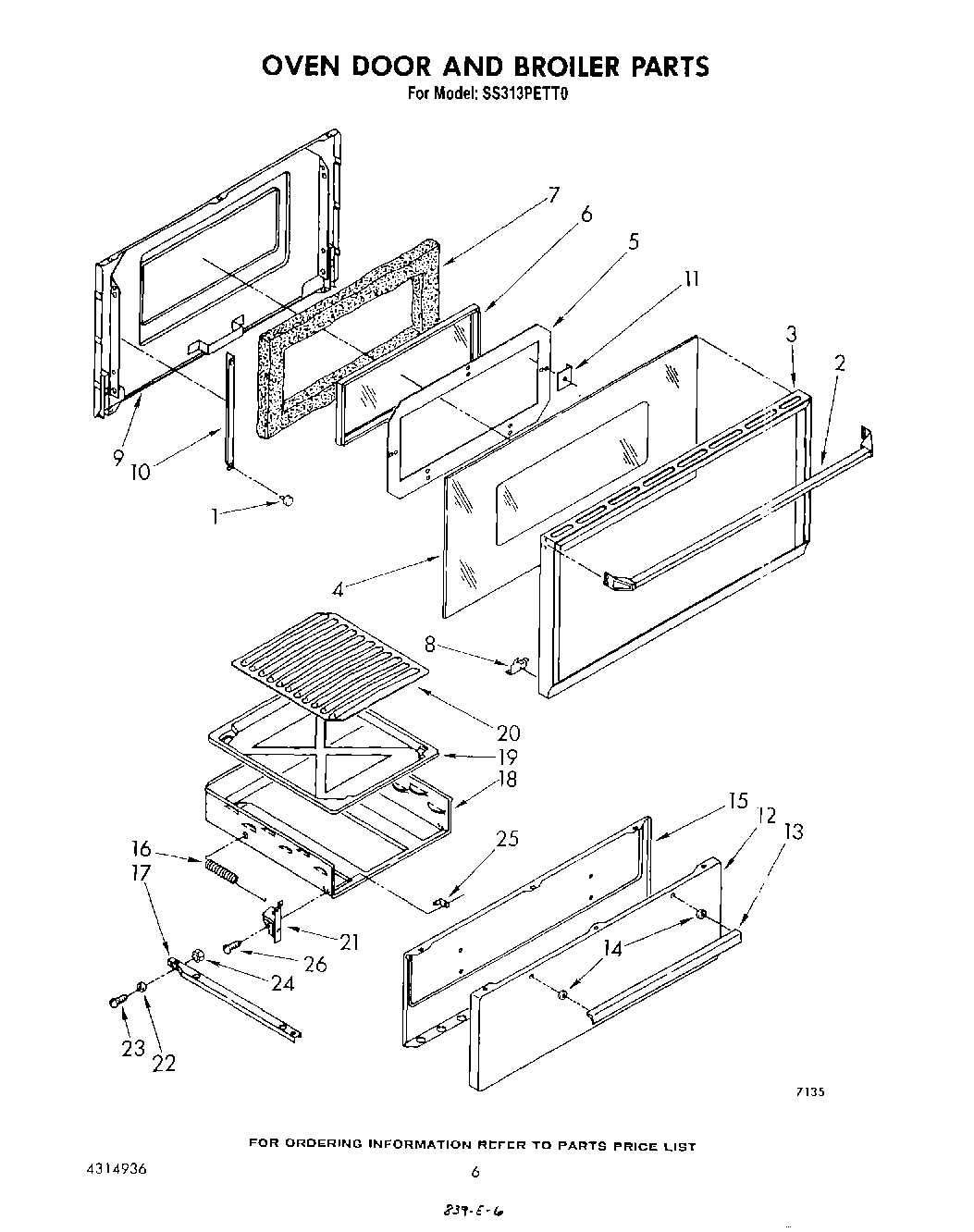

SS313PETT0 05 – OVEN DOOR AND BROILER

SS313PETT0 05 – OVEN DOOR AND BROILER

Written by

in

SS313PETT0 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Screw, 8-18 X 3/8 (4)
2Handle, Door
3Frame, Door
4Glass
5Baffle
6Window Assy
7Insulation
8SCREW
8Support, Glass
9Liner, Door
10Support, Glass (2)
11Plate (2)
12Panel, Broiler
13Handle
13Washer (2)
13Screw, 10-12 X 5/8 (2)
14Spacer (2)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (L.H.)
21Hinge, Door (R.H.)
21W10080180 Whirlpool Nut
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
