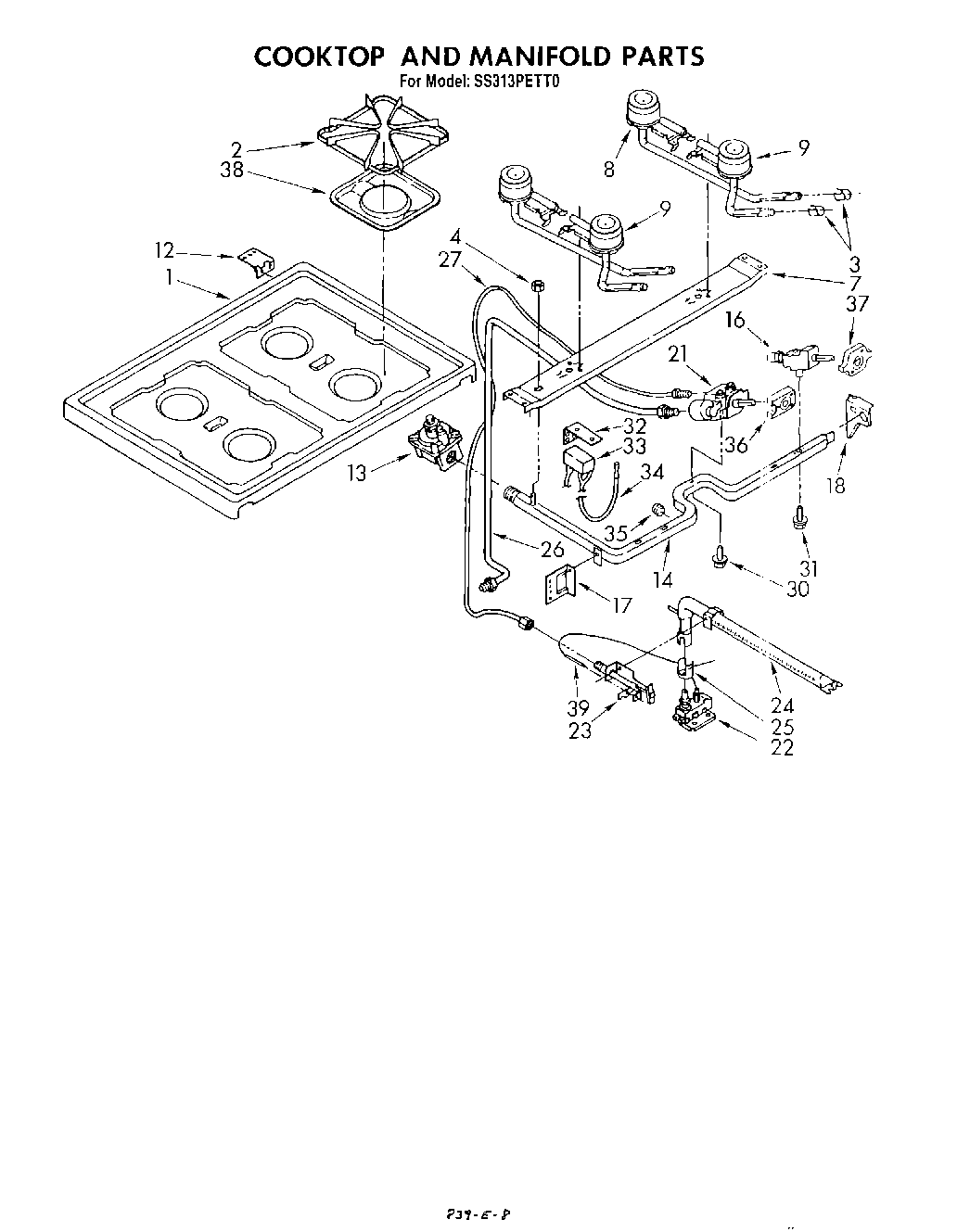

SS313PETT0 06 – COOK TOP AND MANIFOLD
Written by
in
SS313PETT0 06 – COOK TOP AND MANIFOLD
Products
Position
Product
1
Cooktop, Chrome
2
Grate (4)
3
Shutter, Air (4)
4
Nut, Hex
7
Support, Burner
8
Burner, Rear (2)
9
Burner, Front (2)
9
Screw, 10-12 X 3/8 (2)
12
Hinge, Maintop (2)
12
SCREW
12
Speed Clip (4)
13
Regulator, Pressure
14
Pipe, Manifold
16
Valve, 90~ (4) (Includes Ill. No. 33)
17
Support, Manifold (L.H.)
18
Support, Manifold (R.H.)
18
WP308685 Whirlpool Microwave Screw
21
Thermostat (Includes Ill. No. 30)
22
Valve, Safety
22
WP3387230 Whirlpool Screw
23
Pilot
23
Screw, 10-24 X 1/4 (1)
24
Burner, Oven
25
Shutter, Burner
26
Tubing 3/8“ (Thermostat To Safety Valve)
27
Tubing 3/16“ (Thermostat To Pilot)
30
Bolt, Thermostat Mounting (2)
31
Bolt, Valve Mounting
32
Plate, Spark Module
33
Module, Spark
34
Ignitor (L.H.)
34
Ignitor (R.H.)
35
W10295523 Whirlpool Plug
36
WP878009 Whirlpool Igniter Switch
37
WP4157180 Whirlpool Surface Burner Ignition Switch
38
WP786333 Whirlpool Drip Bowl
39
Ignitor, Oven
←
