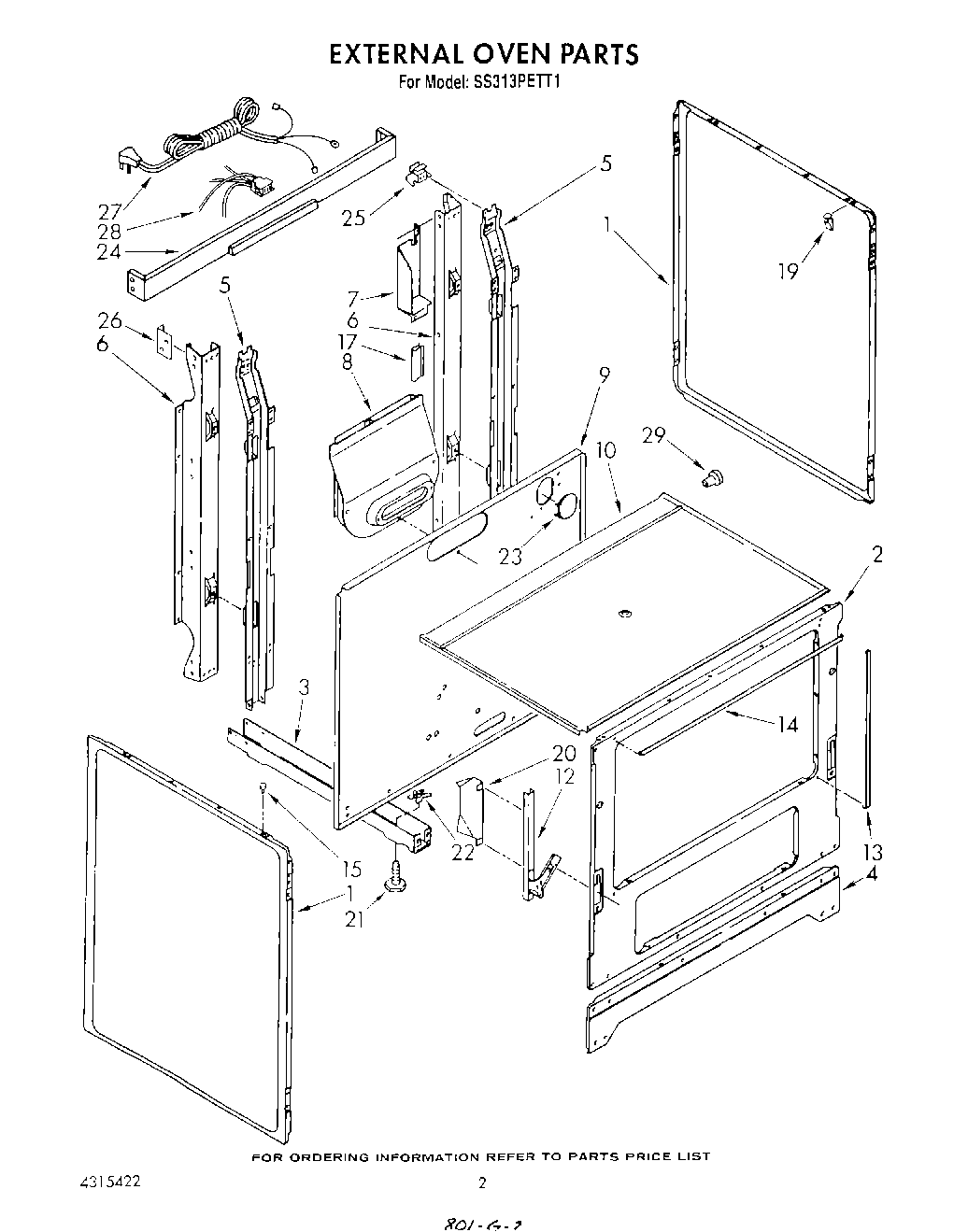

SS313PETT1 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

PositionProduct
List, Repair Parts
Instuctions, Installation
Guide, Use & Care
Guide, Cooking
1Panel, Side (2) (Almond)
2Frame, Front
3Rail, Base (2)
4Screw, 10-12 X 1/2 (4)
4Base, Front
5Support, Main (2)
5Screw, 10-32 X 1/2 (1)
6Support, Rear (2)
7Cover, Wire
7Screw, 10-12 X 3/8 (2)
8SCREW
8Flue, Box
9Panel, Rear
10WP308685 Whirlpool Microwave Screw
10Burner Box
12Screw, 10-24 X 3/8 (2)
12Hinge. Door (2)
13Seal, Door (2) (Side)
14Seal, Door (Top)
15Bumper, Cooktop (2)
17Safe Edge
19Clip, Wire
20Shield, Insulation
21Leg, Leveler (4)
22Nut (4)
23Plug, Hole
24Rail, Backguard
25Bracket, Support (2)
26Bracket, Mounting (R.H.)
26Bracket, Mounting (L.H.)
27WP9757891 Whirlpool Power Cord
28Block, Disconnect
29Locator stud (2)
29Stud Screw (2)
29FOIL, ALUMINUM OVEN (18“ X 25 )
29WPW10208653 Whirlpool Insulation
