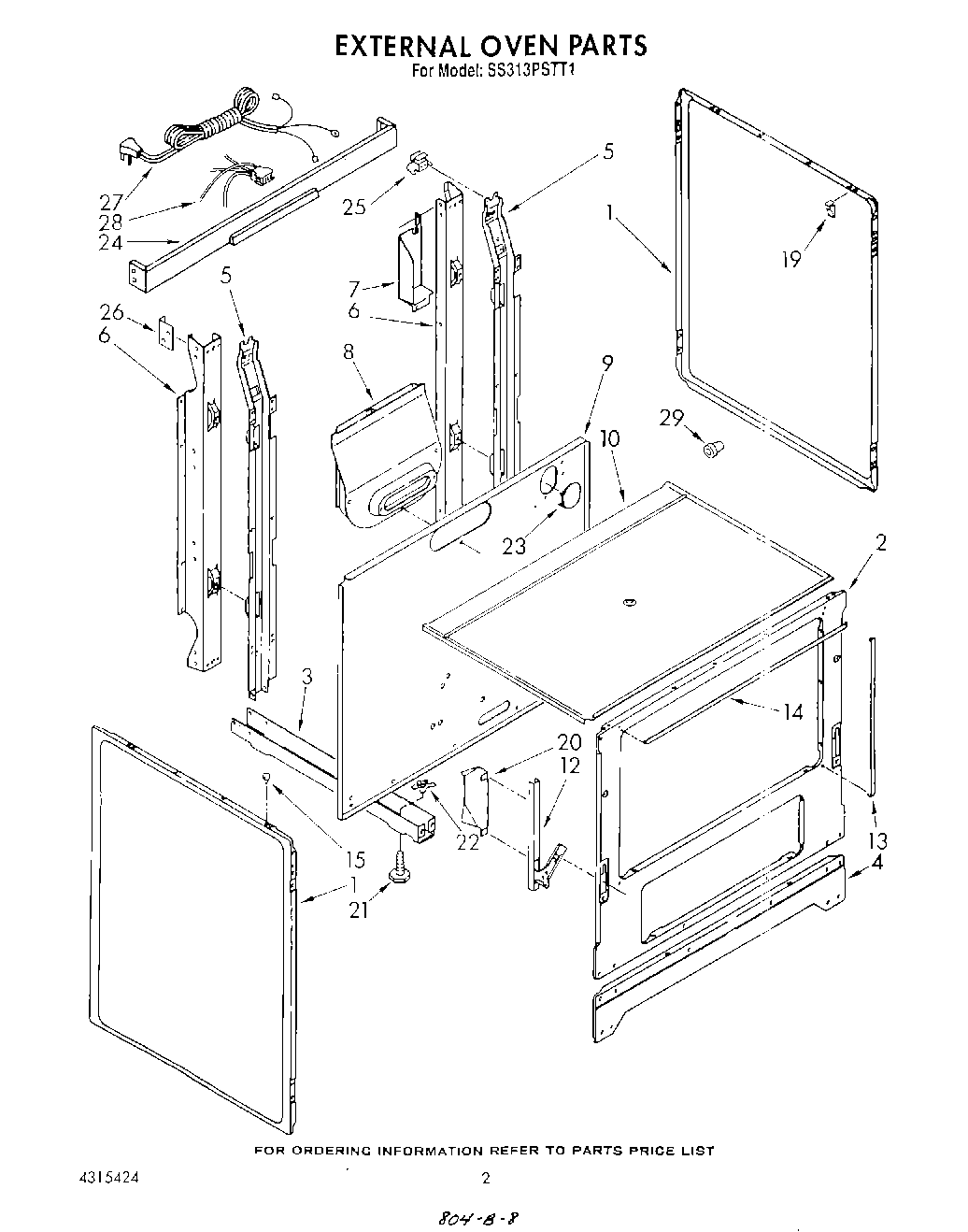

SS313PSTT1 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Stud Screw (2)
	Guide, Cooking
	Guide, Use & Care
	Instuctions, Installation
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
7	Cover, Wire
7	Screw, 10-12 X 3/8 (2)
8	SCREW
8	Flue, Box
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Hinge. Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Plug, Hole
24	Rail, Backguard
25	Bracket, Support (2)
26	Bracket, Mounting (R.H.)
26	Bracket, Mounting (L.H.)
27	WP9757891 Whirlpool Power Cord
28	Block, Disconnect
29	Locator stud (2)
29	FOIL, ALUMINUM OVEN (18“ X 25 )
29	WPW10208653 Whirlpool Insulation
