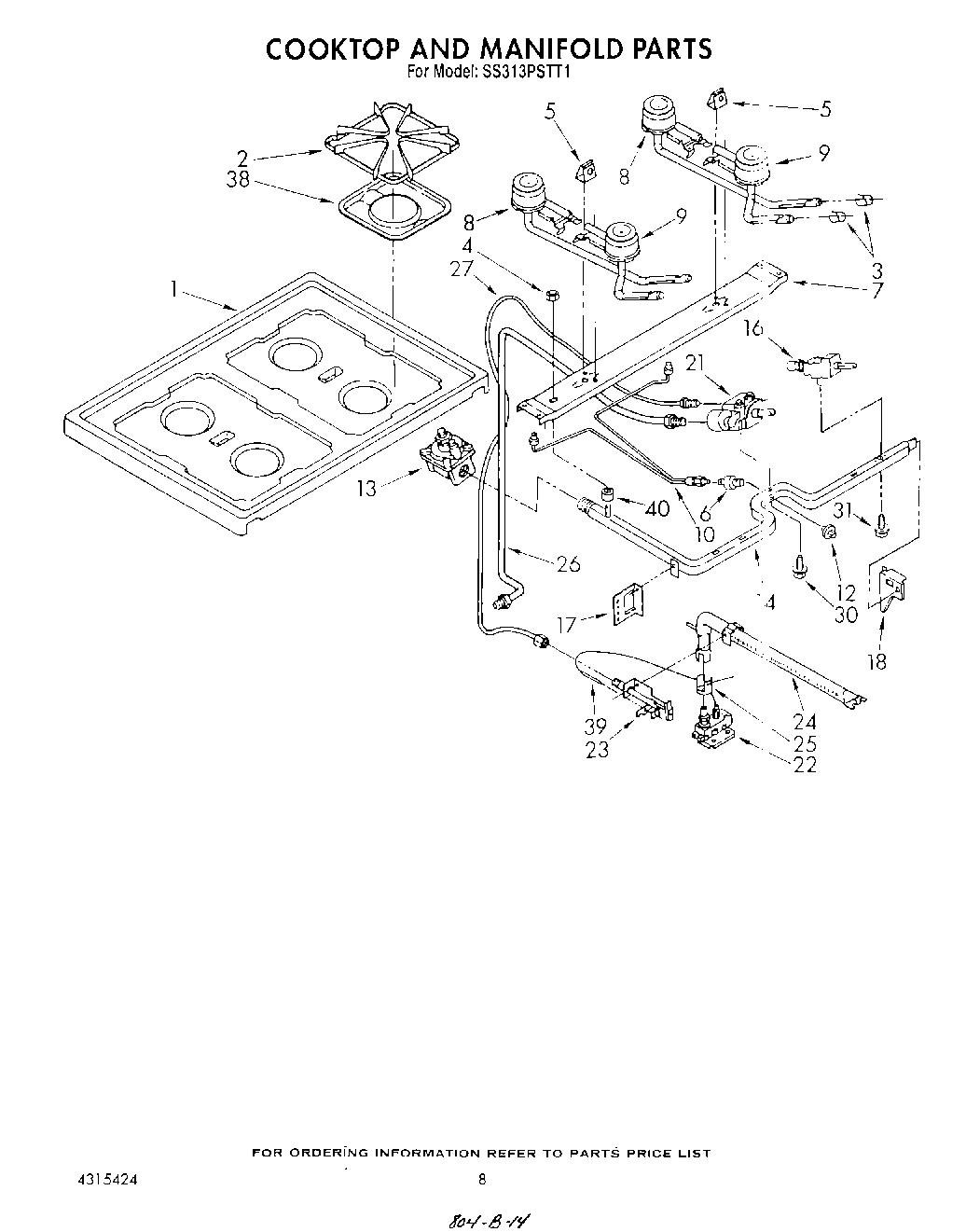

SS313PSTT1 06 – COOK TOP AND MANIFOLD

Products

Position	Product
1	Cooktop, Chrome
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot (Incls. Item No. 12)
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot (Incl. No. 6)
12	Screw & Gasket Assembly
13	Regulator, Pressure
14	Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
21	Thermostat (Includes Ill. No. 30)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
38	WP786333 Whirlpool Drip Bowl
39	Ignitor, Oven
40	Spacer, Manifold
