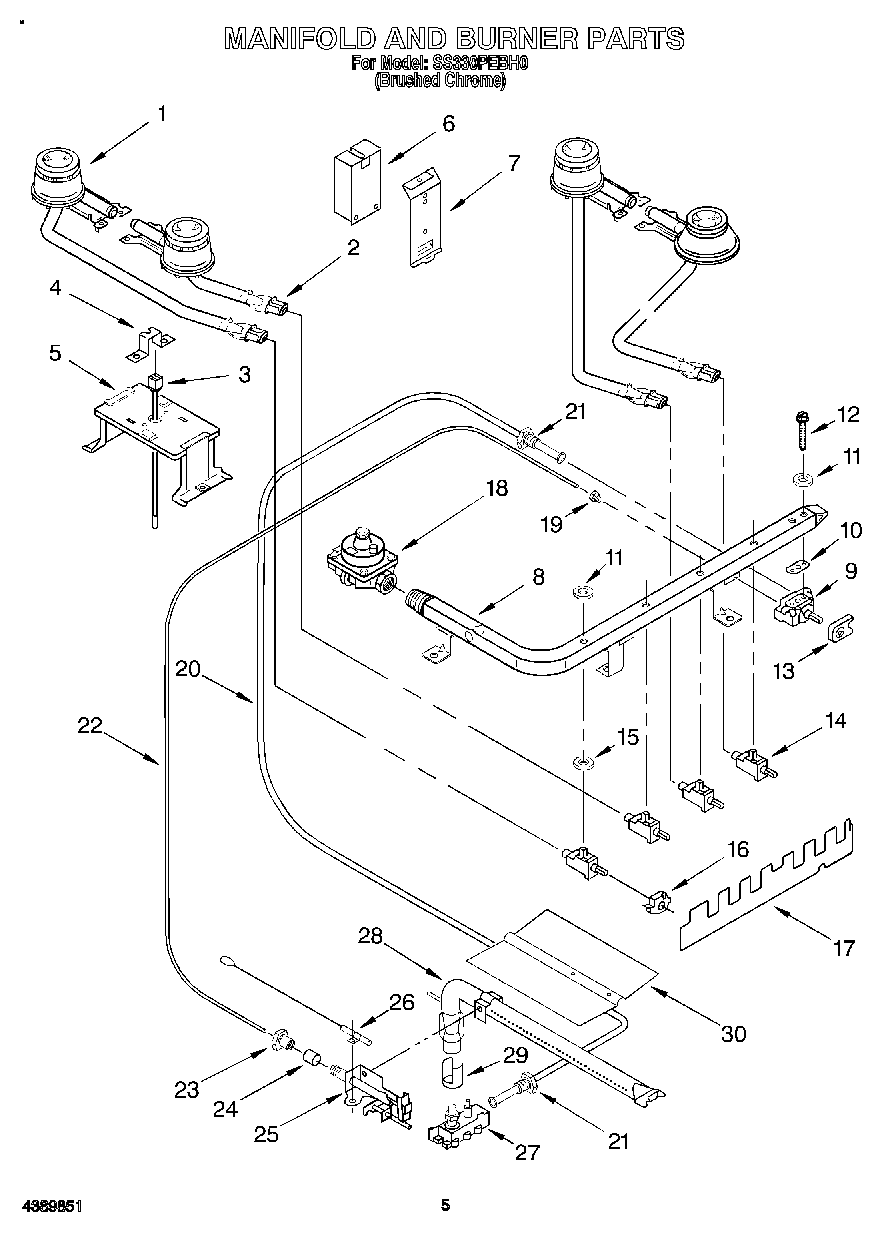

SS330PEBH0 03 – MANIFOLD AND BURNER

Products

Position	Product
1	Burner, Right Rear
1	Burner, Left Rear
1	Burner, Left Front
1	Burner Assembly (All Include No. 2) (Right Front)
2	Shutter, Air
3	Igniter, Top (Left Side)
3	Igniter, Top (Right Side)
4	WP489128 Whirlpool Refrigerator Screw
4	Bracket, Ignitor
5	Support, Burner (2)
6	Module, Spark
6	Screw
7	Support, Module
8	Pipe, Manifold
9	Thermostat, Oven
10	Gasket, Thermostat
11	Gasket, Screw (5)
12	Screw, Mtg. (2)
13	Switch, Igniter (Thermostat)
14	Valve, Burner (4)
15	Gasket, Valve (5)
15	Screw, Valve Mtg.
16	Switch, Igniter (4)
17	Deflector, Air
18	Regulator, Pressure
19	Nut, Loxit
20	Tubing, 3/8“ (Includes No. 21)
21	Nut, Tubing
22	Tubing, 3/16“
23	Nut, Compression
24	Sleeve, Compression
25	Screw
25	Pilot
26	Screw
26	Igniter, Oven
27	Valve, Safety
27	Screw (2)
28	Burner, Oven (Includes No. 29)
28	WP308685 Whirlpool Microwave Screw
29	Screw, Shutter
29	Shutter, Air
30	Baffle, Ov Burner
30	WPL 4389536
