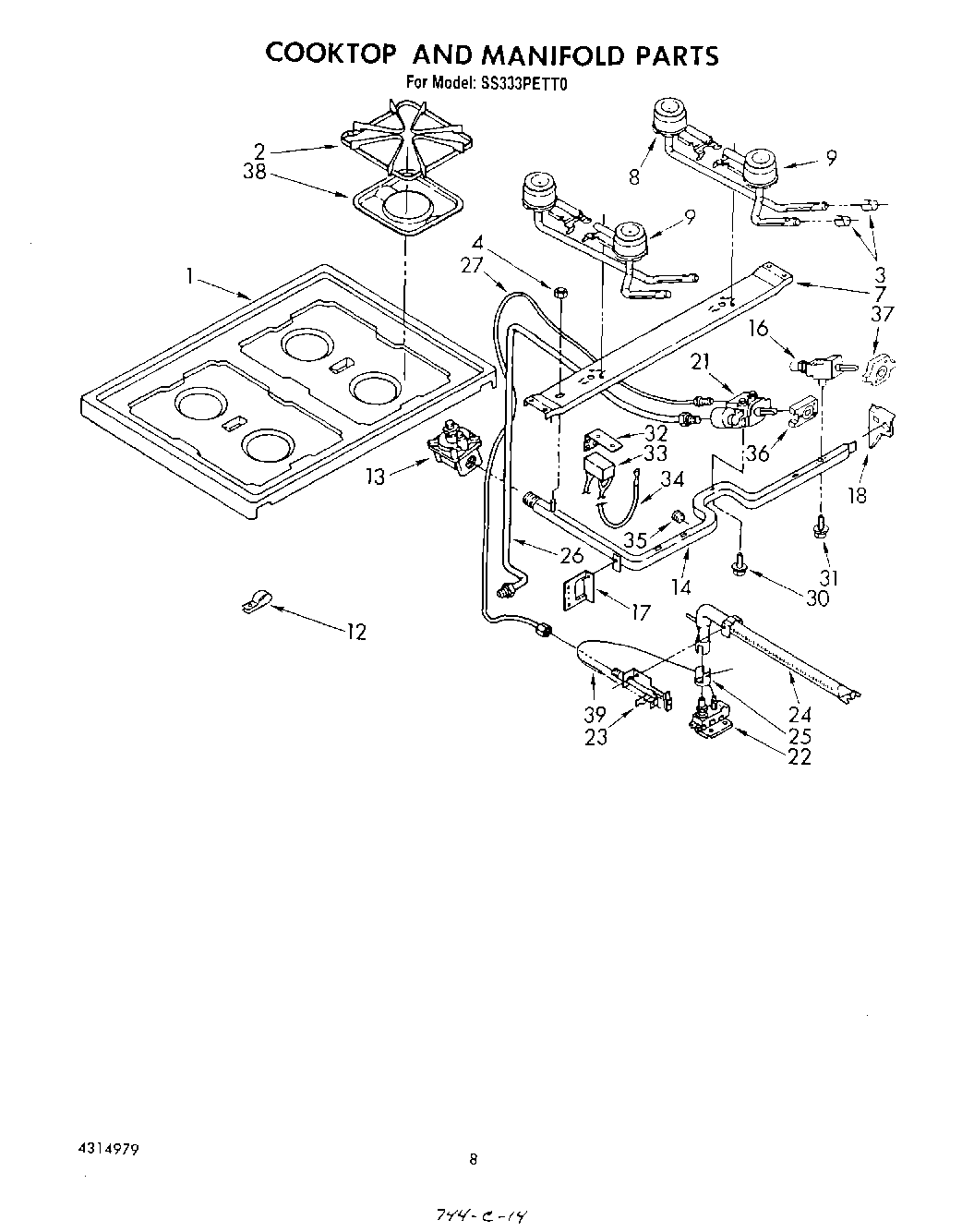

SS333PETT0 06 – COOK TOP AND MANIFOLD

Products

Position	Product
1	Cooktop, Chrome
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
12	Strain Relief
13	Regulator, Pressure
14	Pipe, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
21	Thermostat (Includes Ill. No. 30)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
32	Plate, Spark Module
33	Module, Spark
34	Ignitor (R.H.)
34	Ignitor (L.H.)
35	W10295523 Whirlpool Plug
36	WP878009 Whirlpool Igniter Switch
37	WP4157180 Whirlpool Surface Burner Ignition Switch
38	WP786333 Whirlpool Drip Bowl
39	Ignitor, Oven
