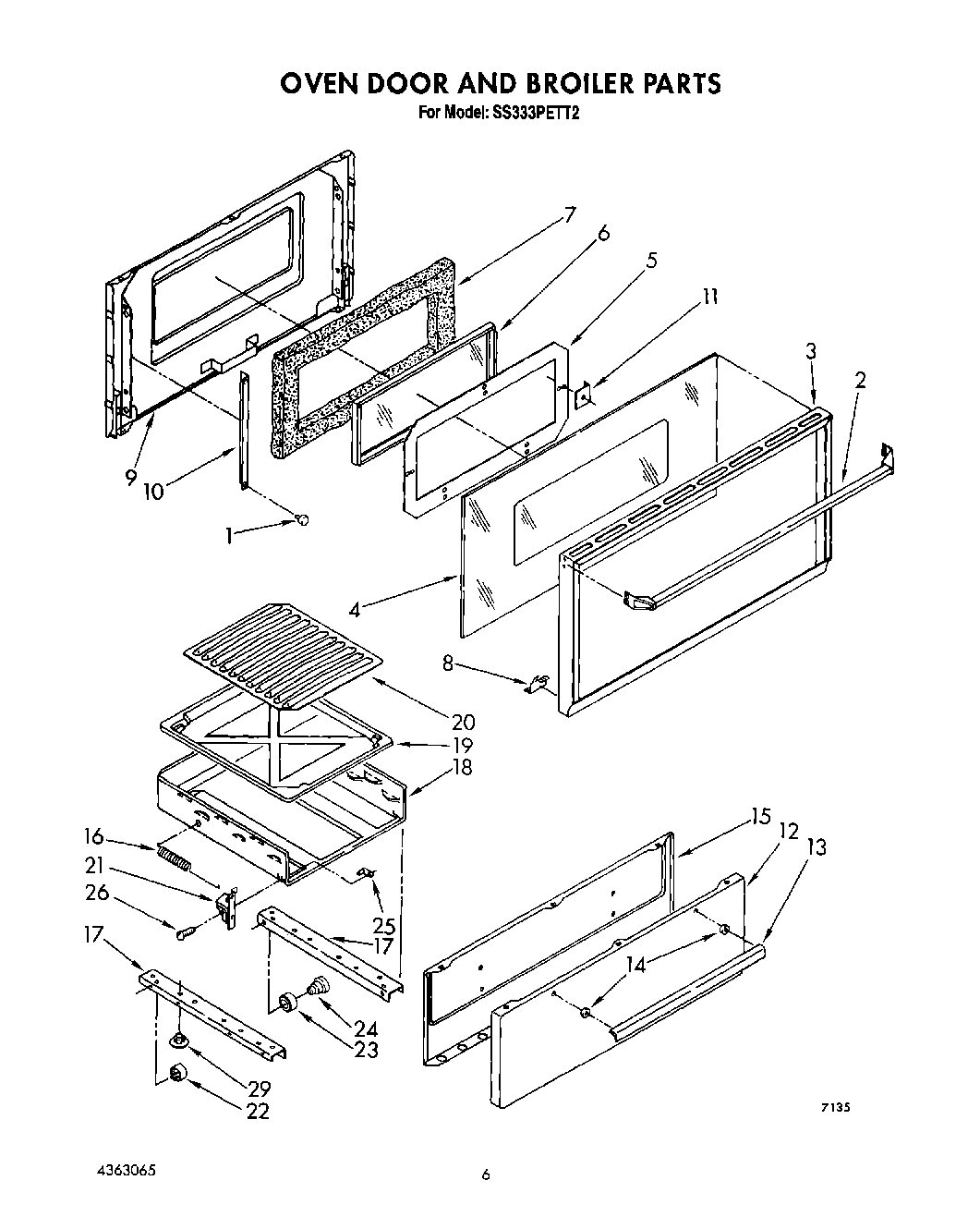

SS333PETT2 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door
2	Screw, 8-18 X 3/8 (4)
3	Frame, Door
4	Glass
5	Ring, Hold Down
6	Window Assy
7	Insulation
8	Support, Glass
8	SCREW
9	Liner, Door
10	Support, Glass (2)
11	Plate (2)
12	Panel, Broiler
13	Screw, 10-12 X 5/8 (2)
13	Washer (2)
13	Handle
14	Spacer (2)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (L.H.)
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (R.H.)
21	W10080180 Whirlpool Nut
22	Bumper, Nylon (4)
23	Roller (2)
24	Roller Pin (2)
25	Plate (2)
26	Screw (2)
29	Hole Plug (2)
